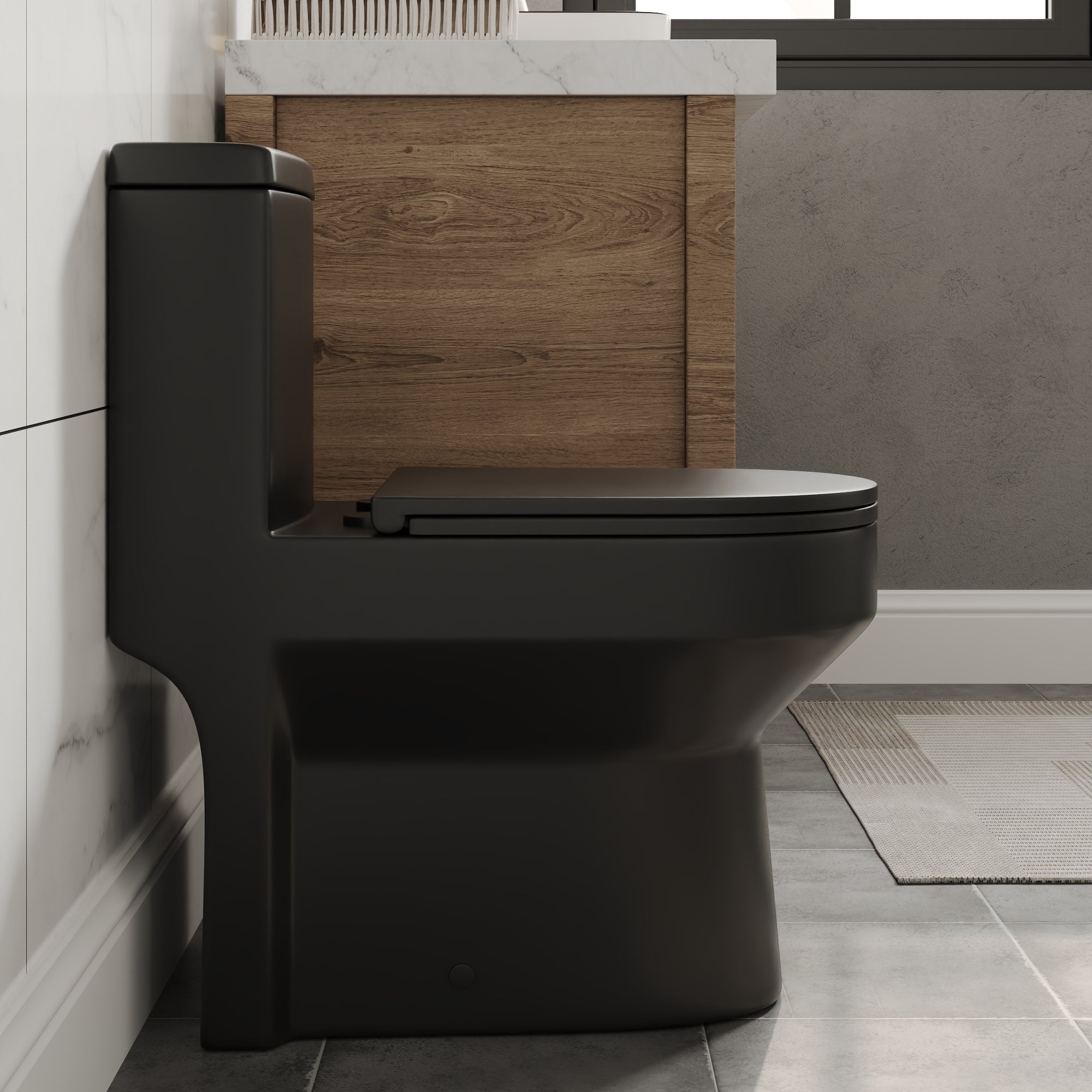

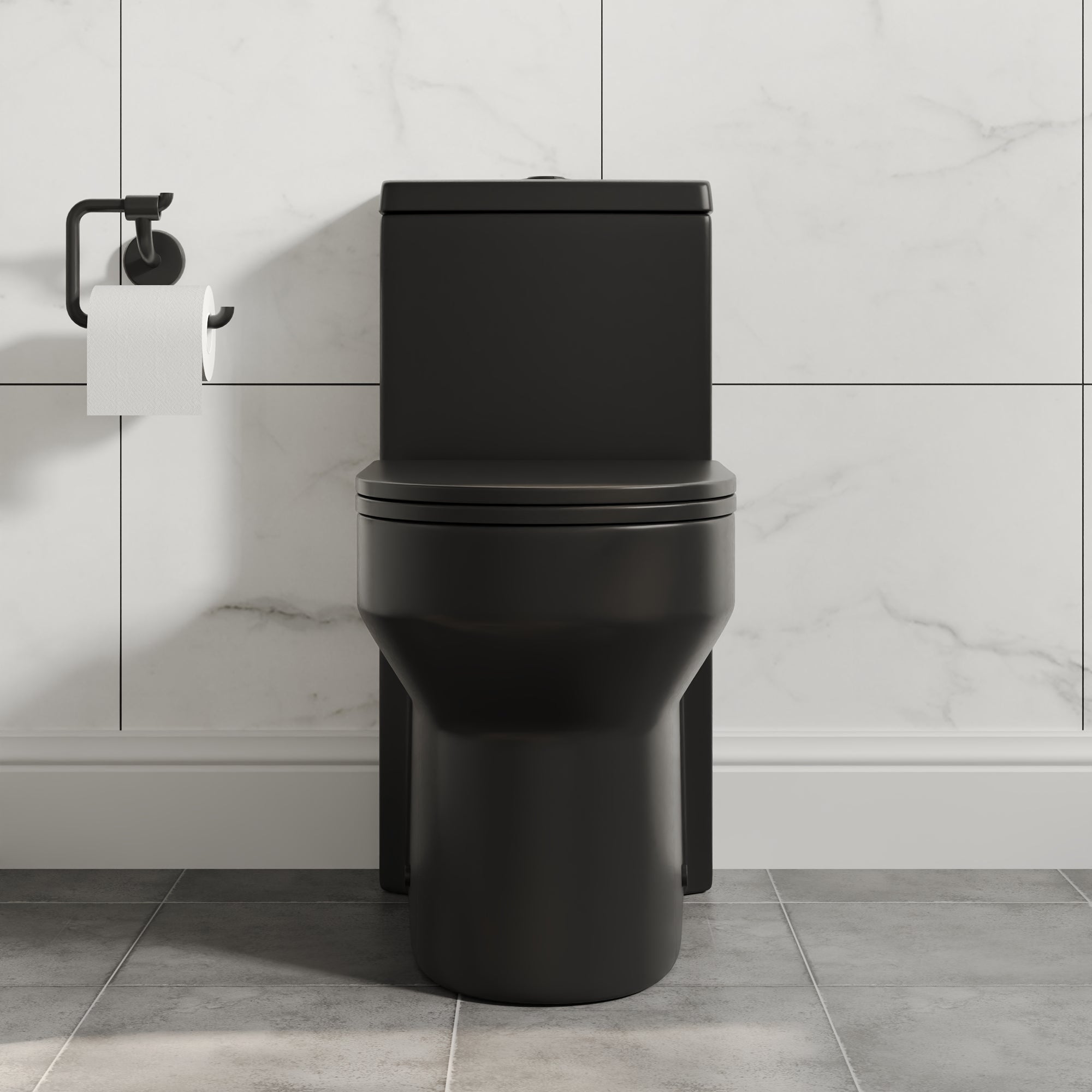

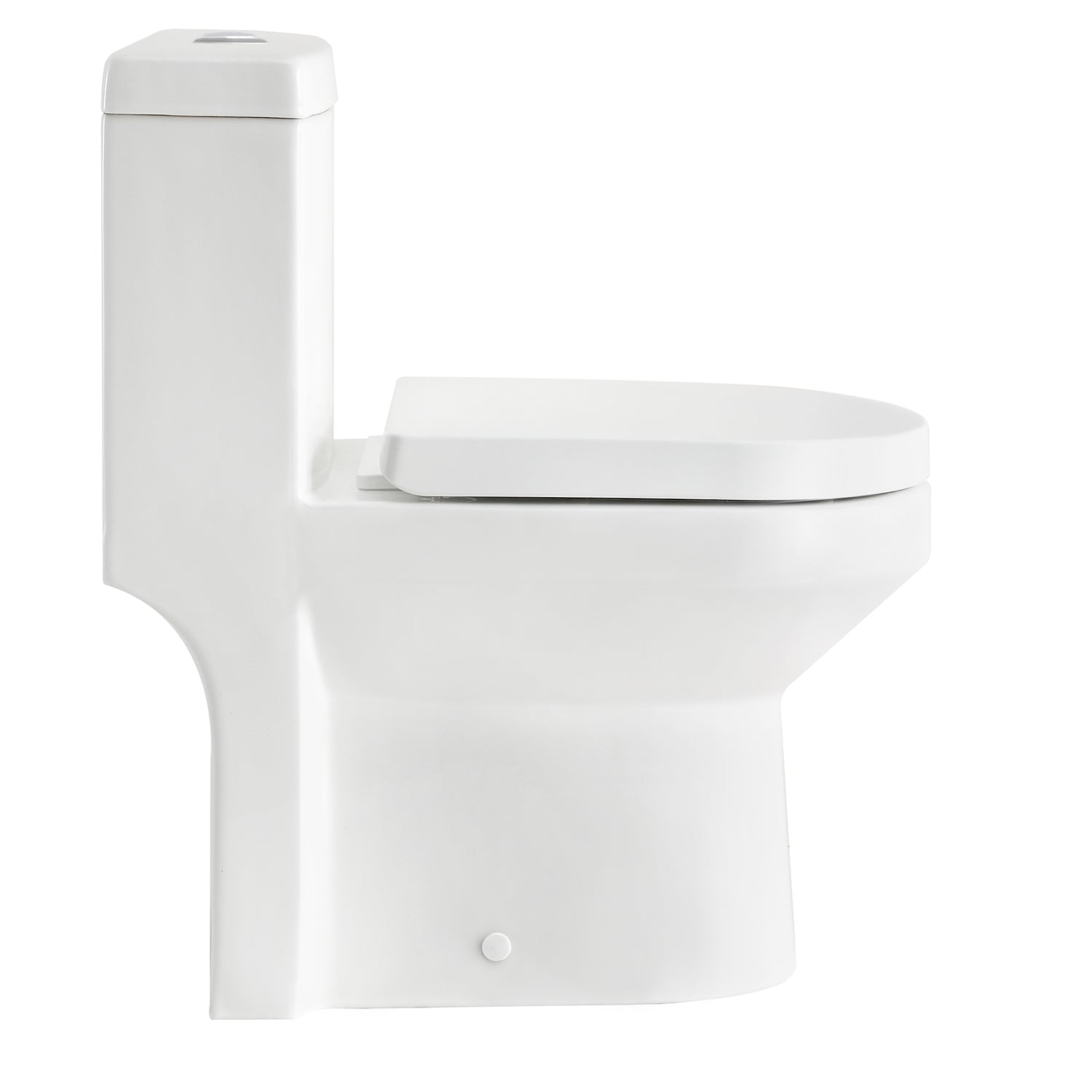

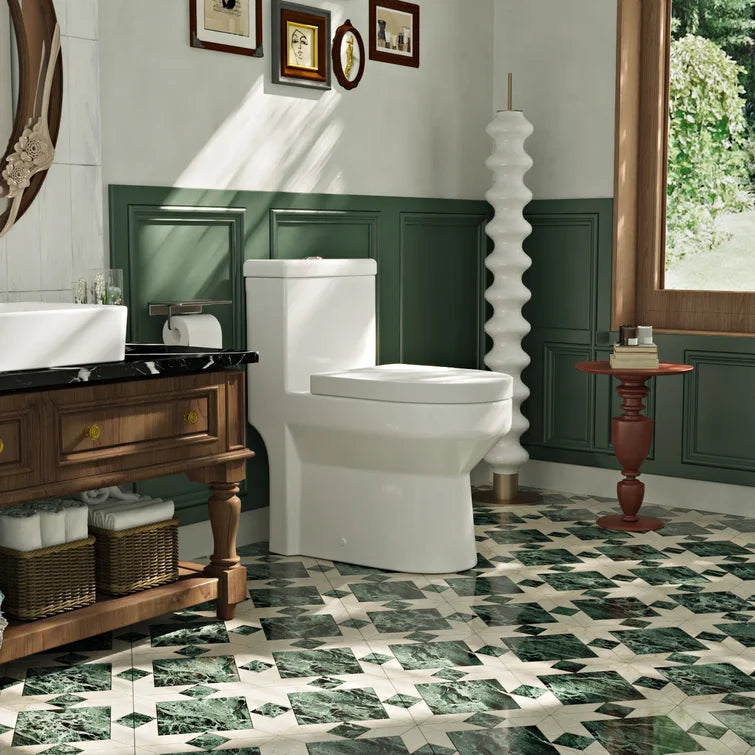

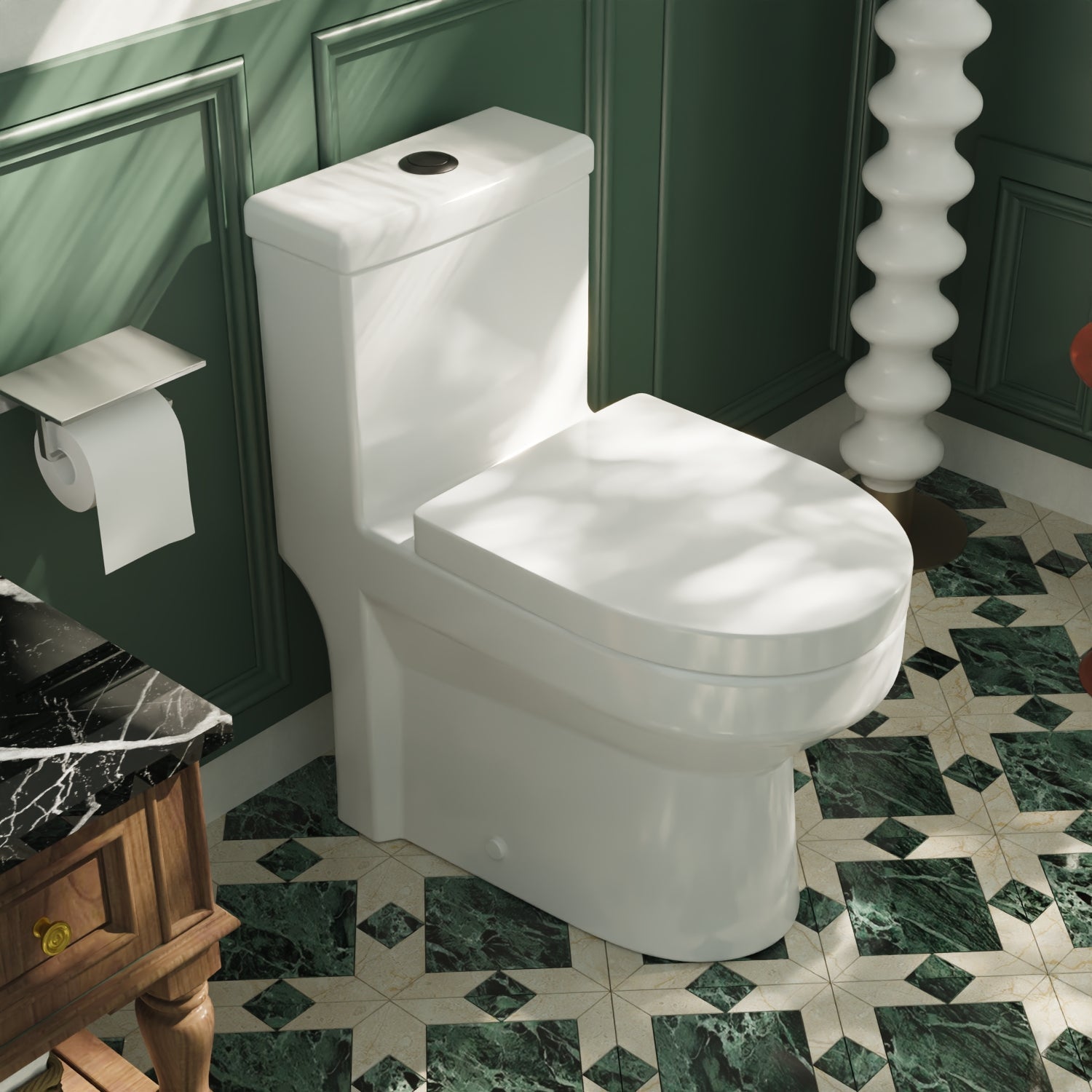

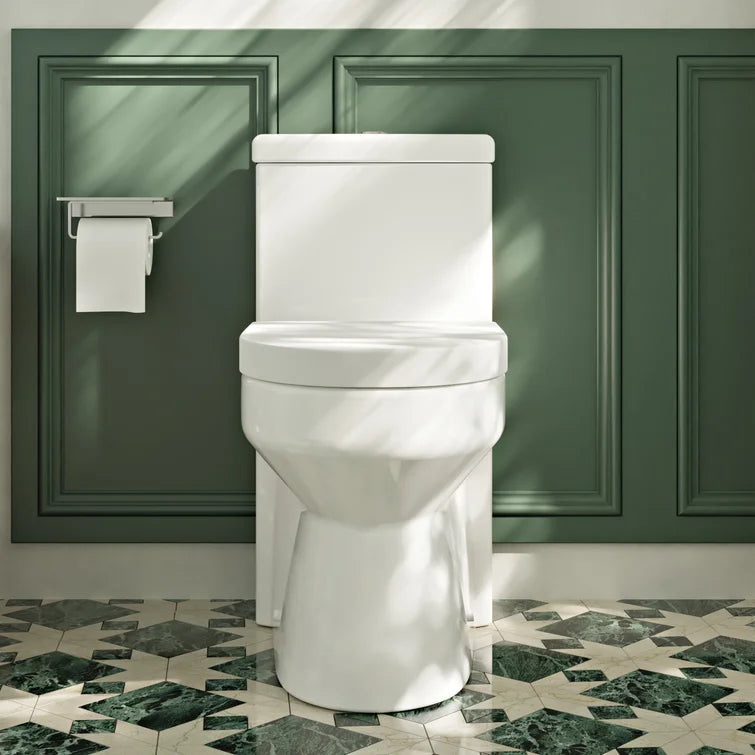

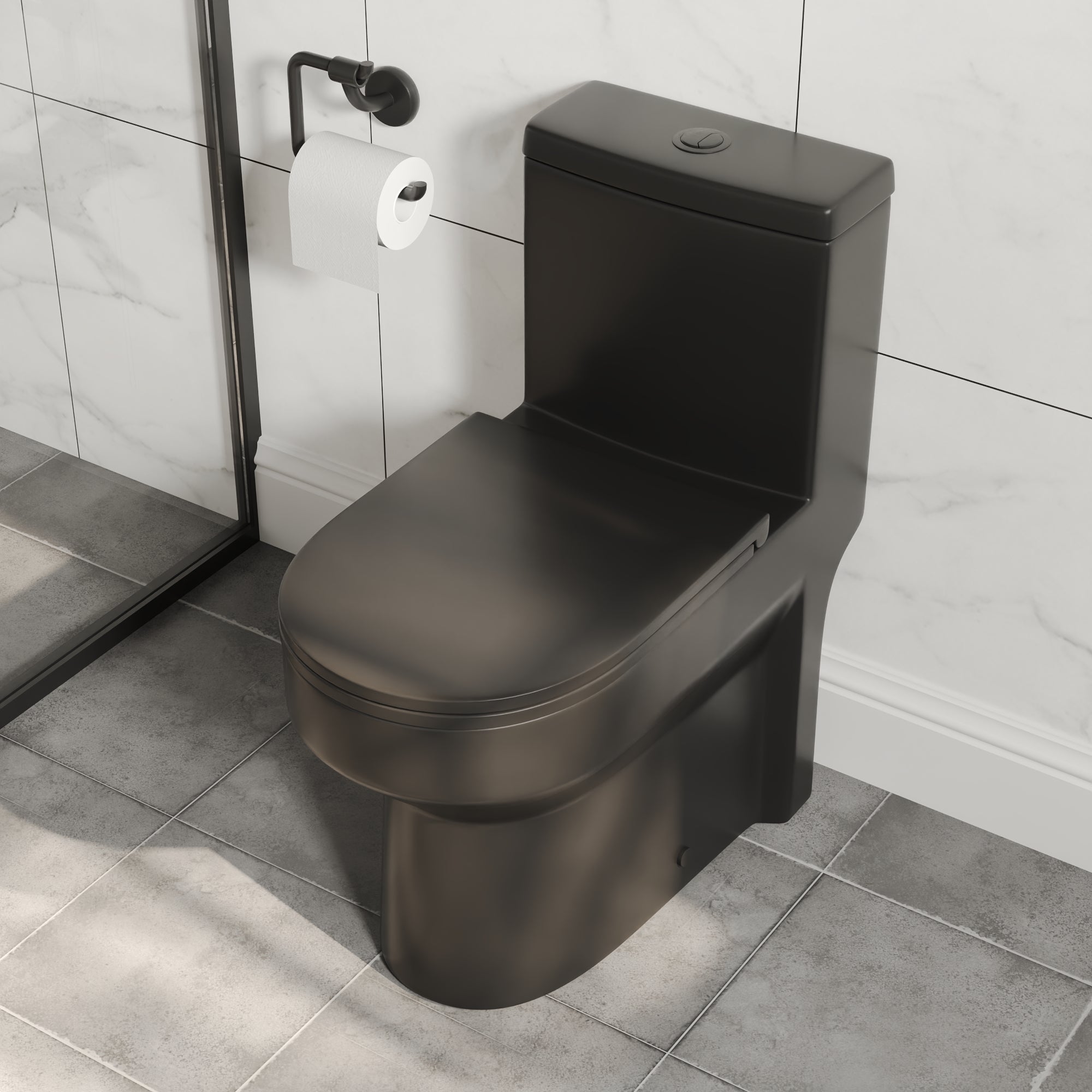

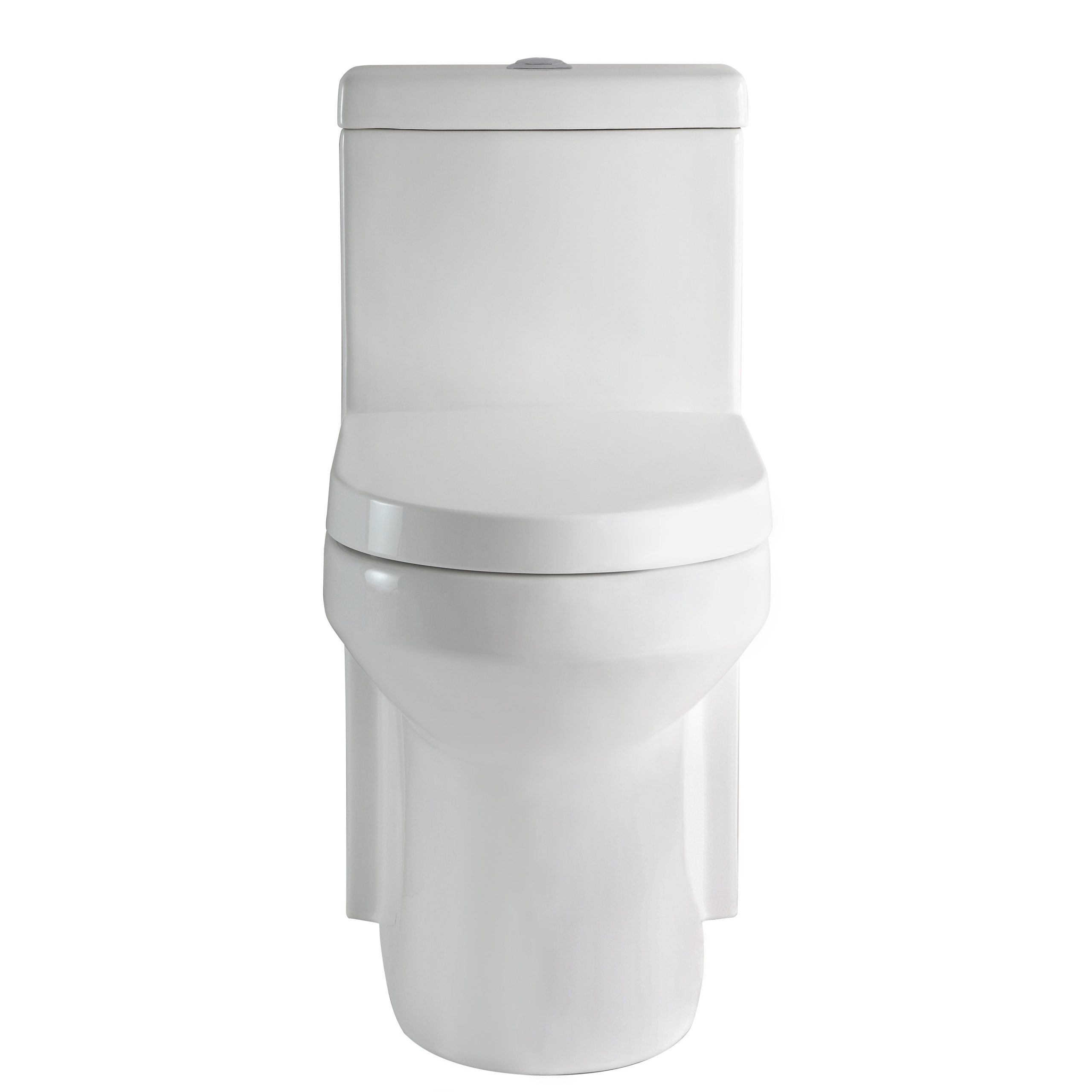

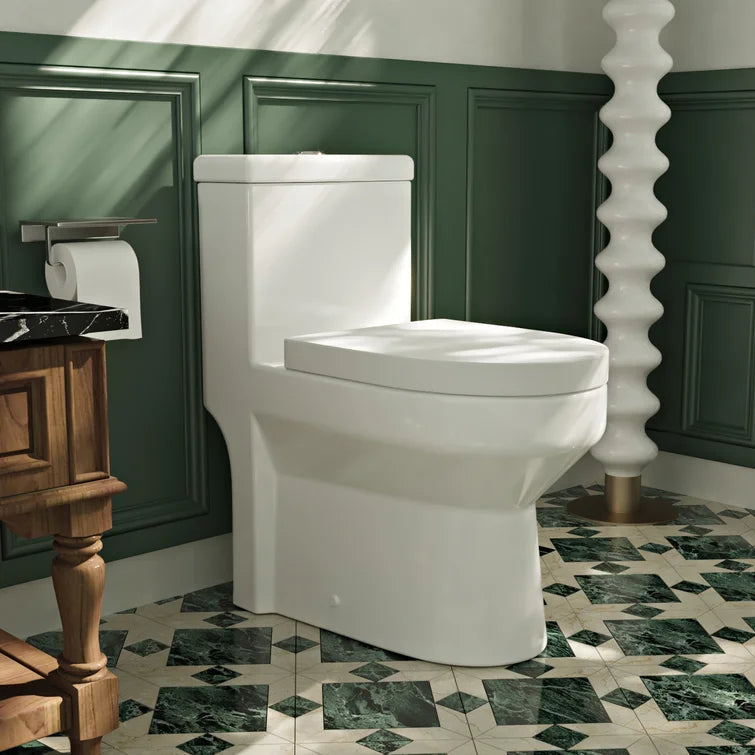

Contemporary and Compact Design. Although designed for small spaces, this toilet looks perfect in any modern bathroom. The seat lid closes silently. The feature is ideal for water efficiency.
Features

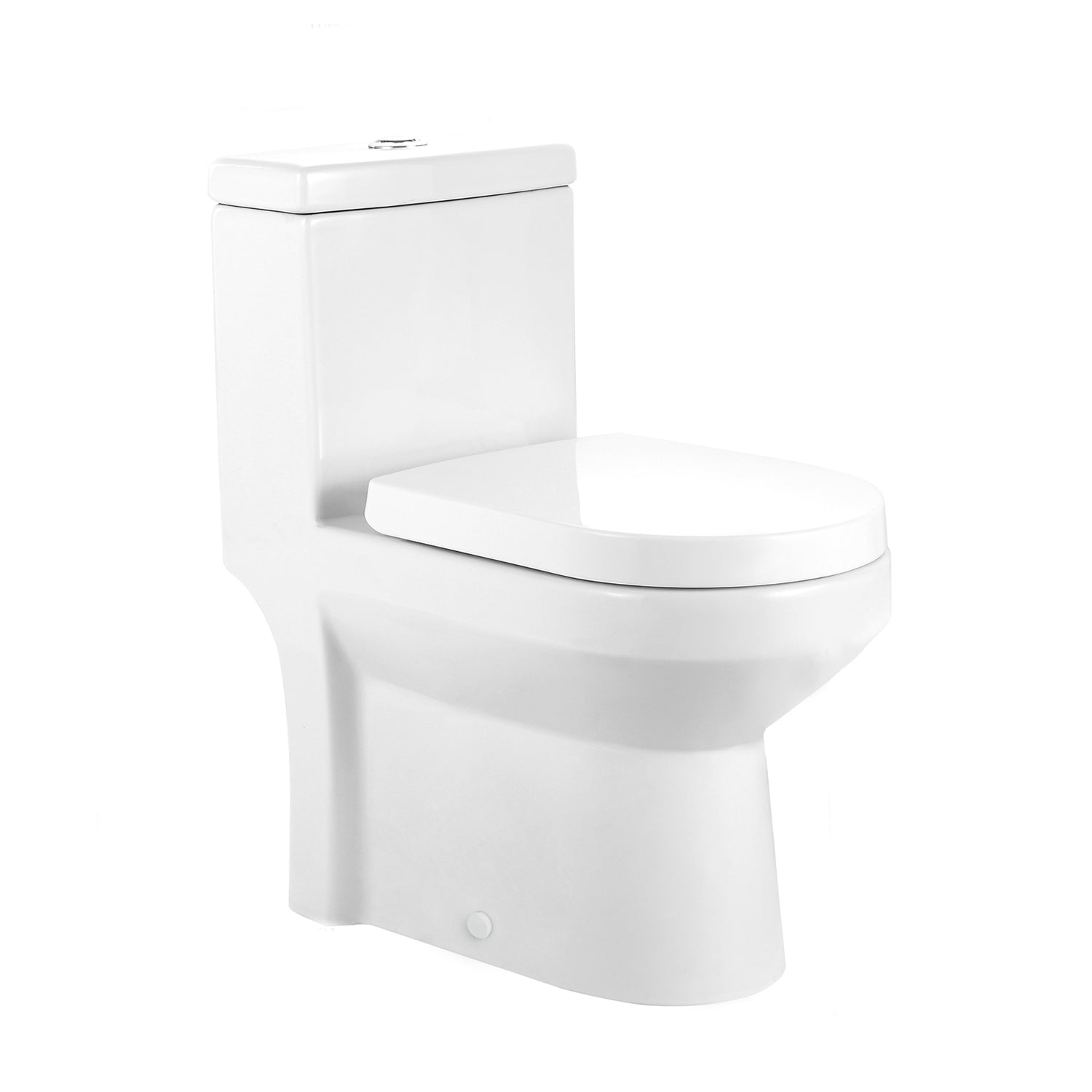

• This toilet is a compact one-piece toilet in small size smaller and shorter than a standard toilet, so it fits for small bathrooms.
• Fully glazed flush. Self-cleaning spray. Super-quiet and powerful flush with no clogs. Leak-proof.
• A one-piece toilet with a fully skirted design is easy to keep clean with fewer crevices than a larger, standard two-piece toilet.

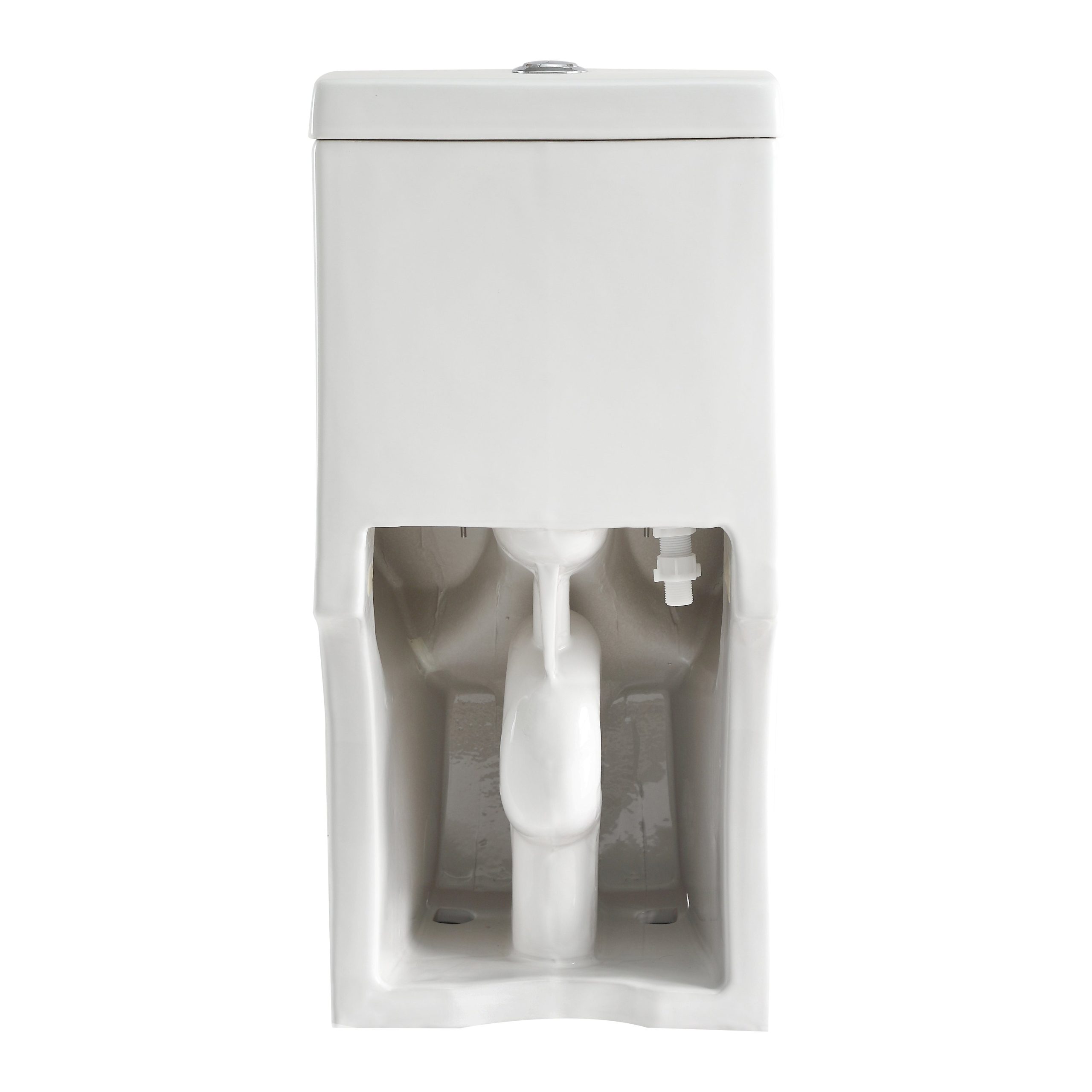

• The concealed trapway and fully glazed surface design for this one-piece white toilet make cleaning much easier. It has no corners or grooves and is very easy to reach for cleaning.
• Siphon flushing one-piece toilet with fully glazed flush system, bringing a super quiet and powerful flushing – NO clogs, NO leaks, and NO problem.

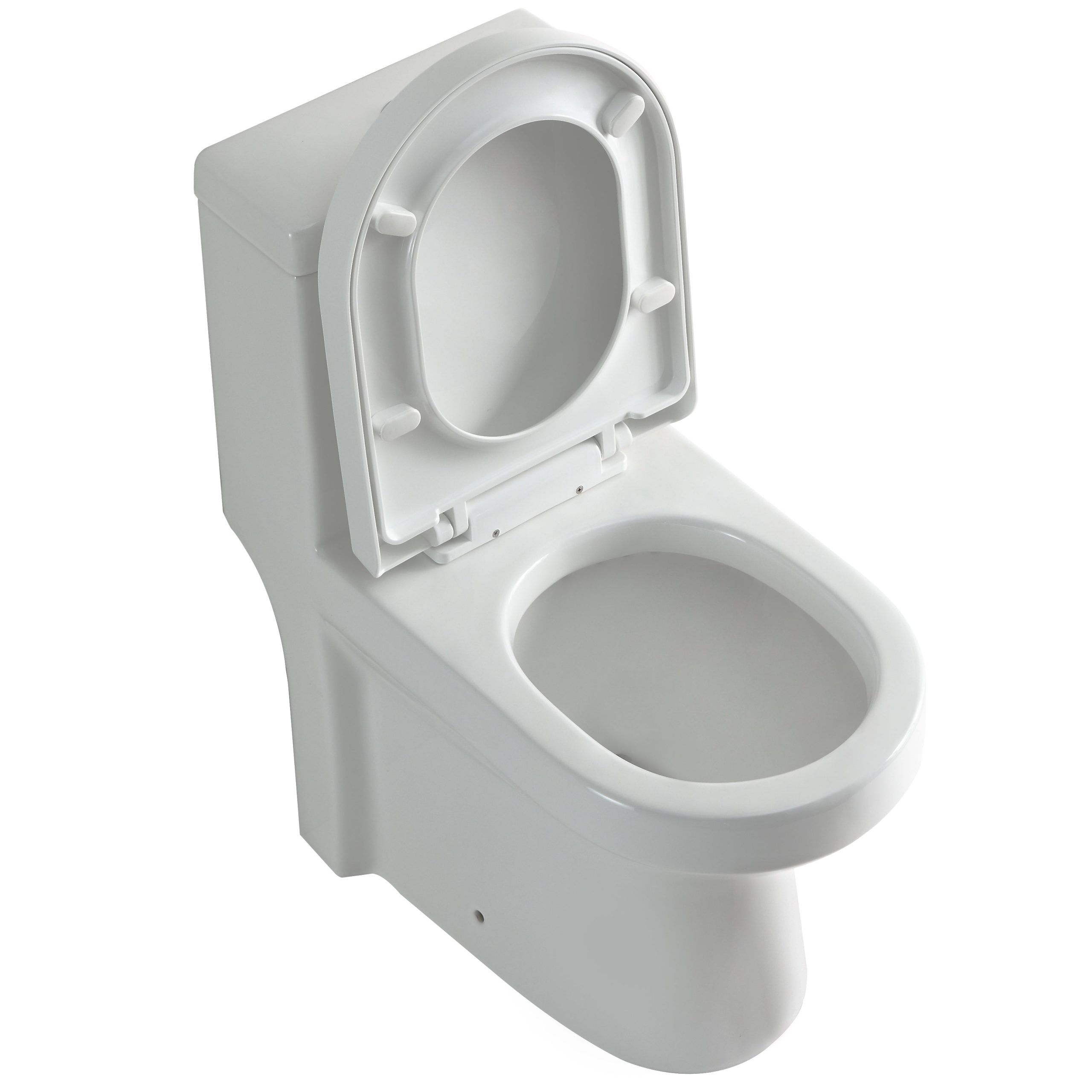

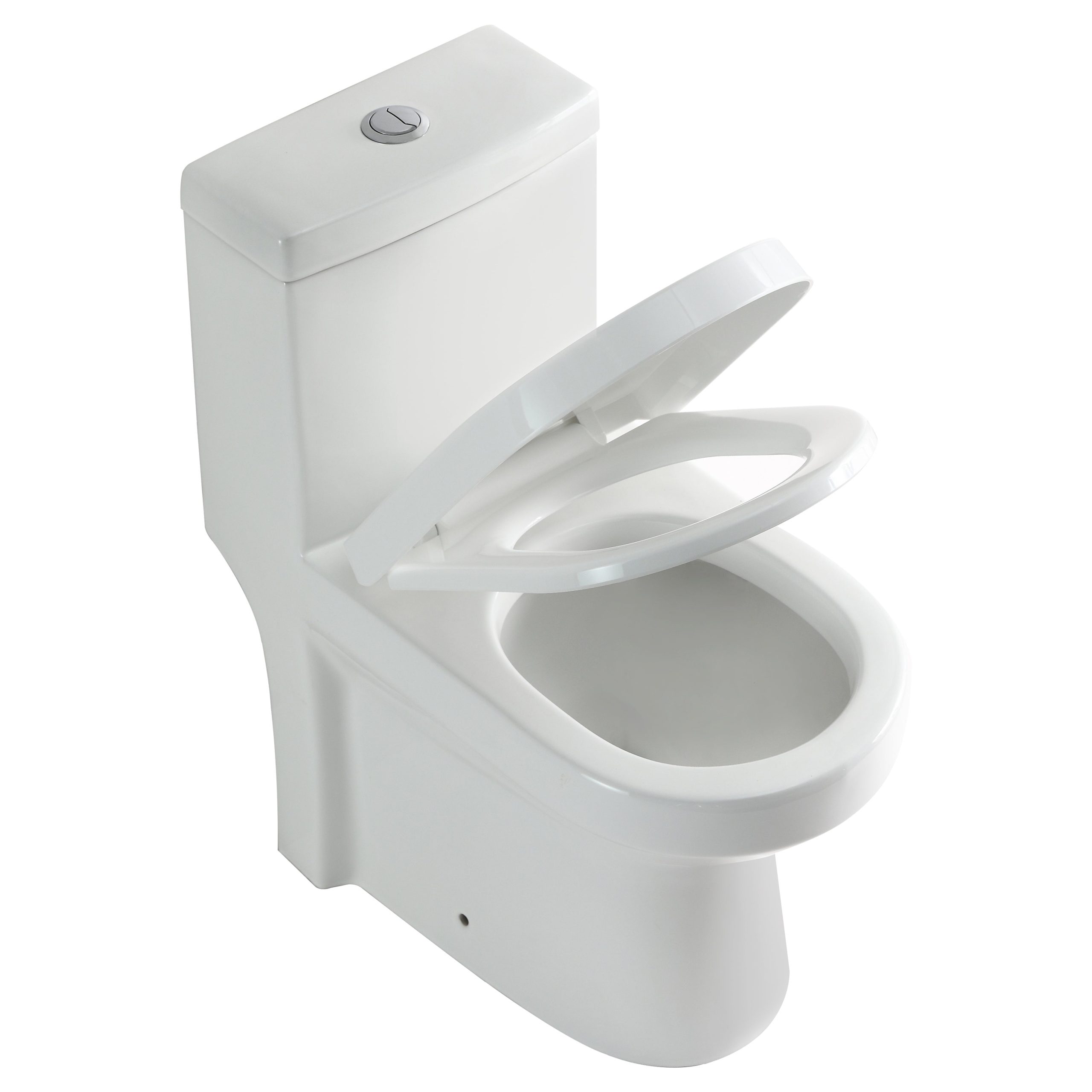

• Soft closing toilet seat for this small toilet closes slowly and quietly, which will never disturb your family.
• Note that this toilet is designed for floor mounting. 12″ Rough-In ( from wall to C/L Outlet ).
• This one-piece toilet is friendly-designed and easy to install. The specific time for installing this toilet is uncertain and varies from person to person.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

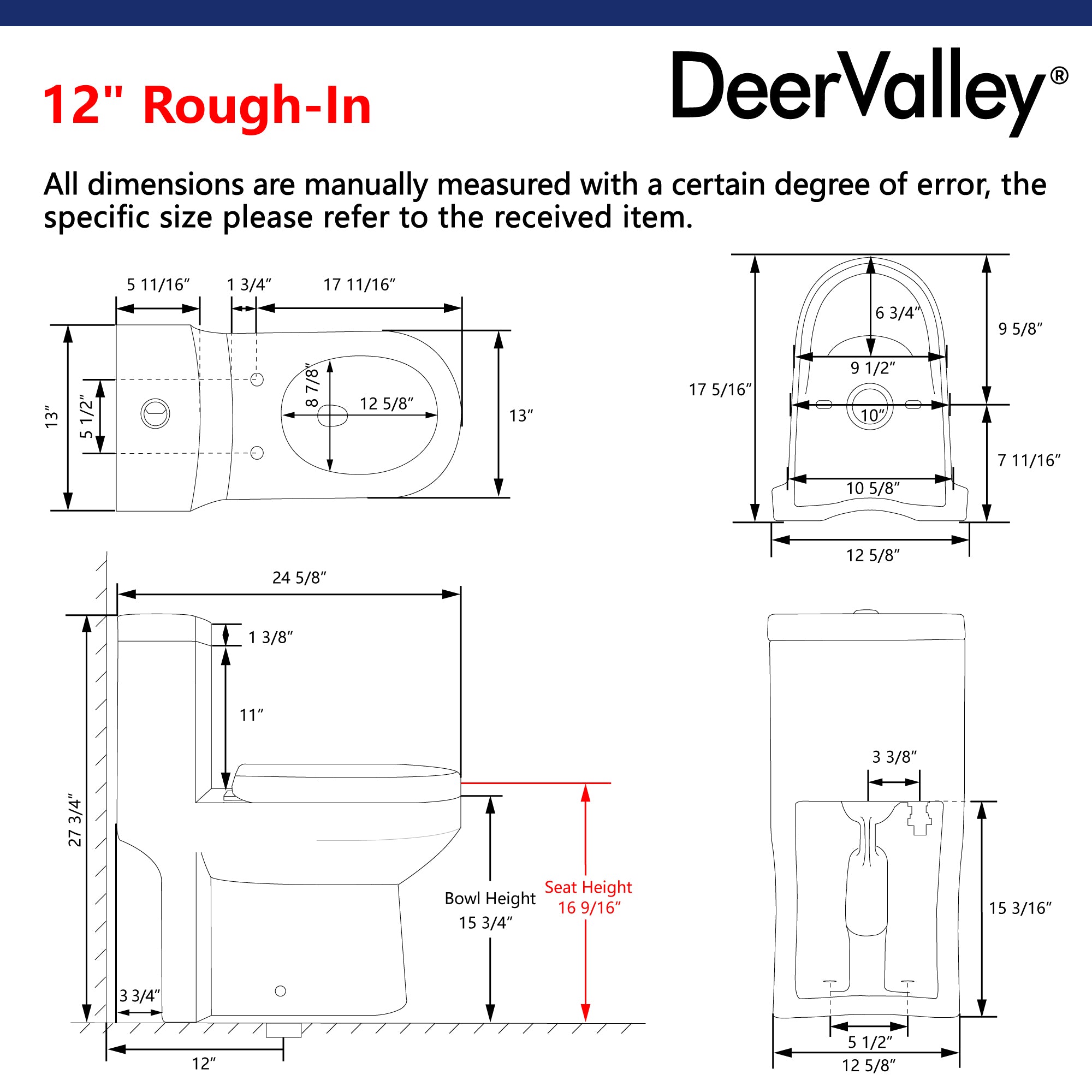

Weights & Dimensions
Overall:?24.61″L X 12.99″W X 27.76″H
Rough In Size:?12″
Toilet Seat Height – Top to Bottom:?16.54″
Bowl Height – Top to Bottom:?15.75″
Tank:?11.02″H X 12.99″L X 5.71″W
Tank Lid:?1.38″H X 12.99″L X 5.71″W
Bolts Spread Distance:?5.51″
Distance from the Seat Installation Hole to the Tank:?1.77″
Distance from the Back of the Toilet to the Wall:?3.74″
Toilet Installation Hole Distance:?5.51″
Height from the Bottom of the Water Tank to the Ground:?15.16″
Distance Between the Center of Adapter and the Center of Trapway:?3.35″
Trapway Diameter(Inside):?2.17″
Toilet Seat:?1.57/1.57 Back/Front” H X 13.19″W X 17.72″L
Toilet Seat Inside Ring:?7.87″W X 11.02″L
Bowl:?12.6″L X 8.86″W X 15.75″H
Toilet Base Dimension:?17.32″L X 12.6″W
Overall Product Weight:?88 lb.
Flush Volume:?1.1/1.6 GPF
What is included in the package?
•
Toilet Seat, Fitting, Side bolt cover parts, Waxring screw, Installation instruction.
Compatible? Accessories
• Toilet flush button chopsticks: DV-F812V32
• Flushing button: DV-F812V31
• Toilet Seat: DV-F812S11 /DV-F812S21
• Tank Lid: DV-F812T11
• Side bolt cover parts: DV-F813P21
• Waxring and Toilet Bolts: DV-F813P11
• Toilet Seat Quick Release Bracket: DV-F812S01 /DV-F813S01

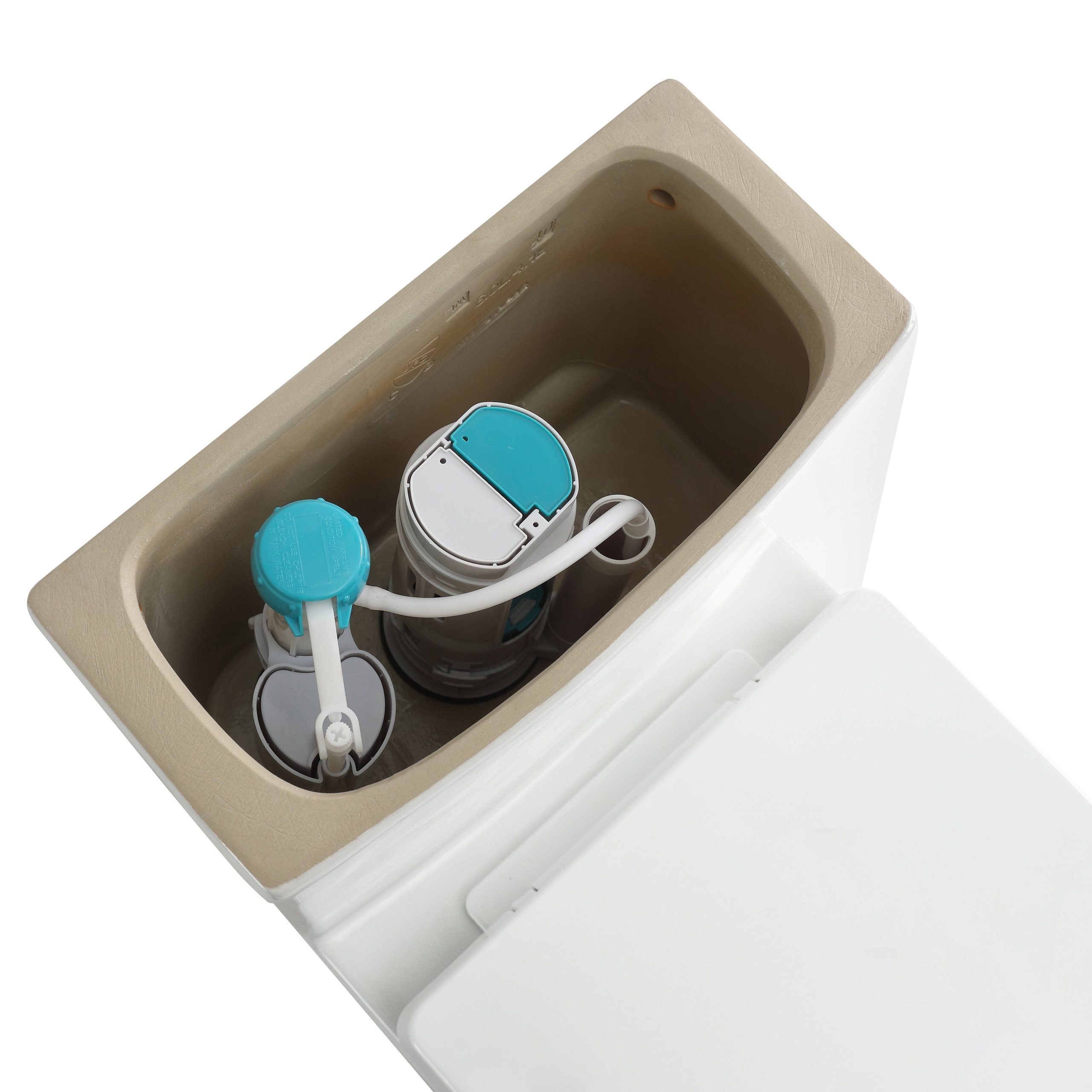

• Fill Valve: DV-F812V01
• Rubber Cushion: DV-F812S91
• Toilet Adapter: DV-FMYV51
Toilet Seat Bidet
DeerValley’s Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.
•
DV-1B0093 & DV-1B0095
Installation Video (DV-1F52813) :
Installation Manual:
Spec Sheet:
