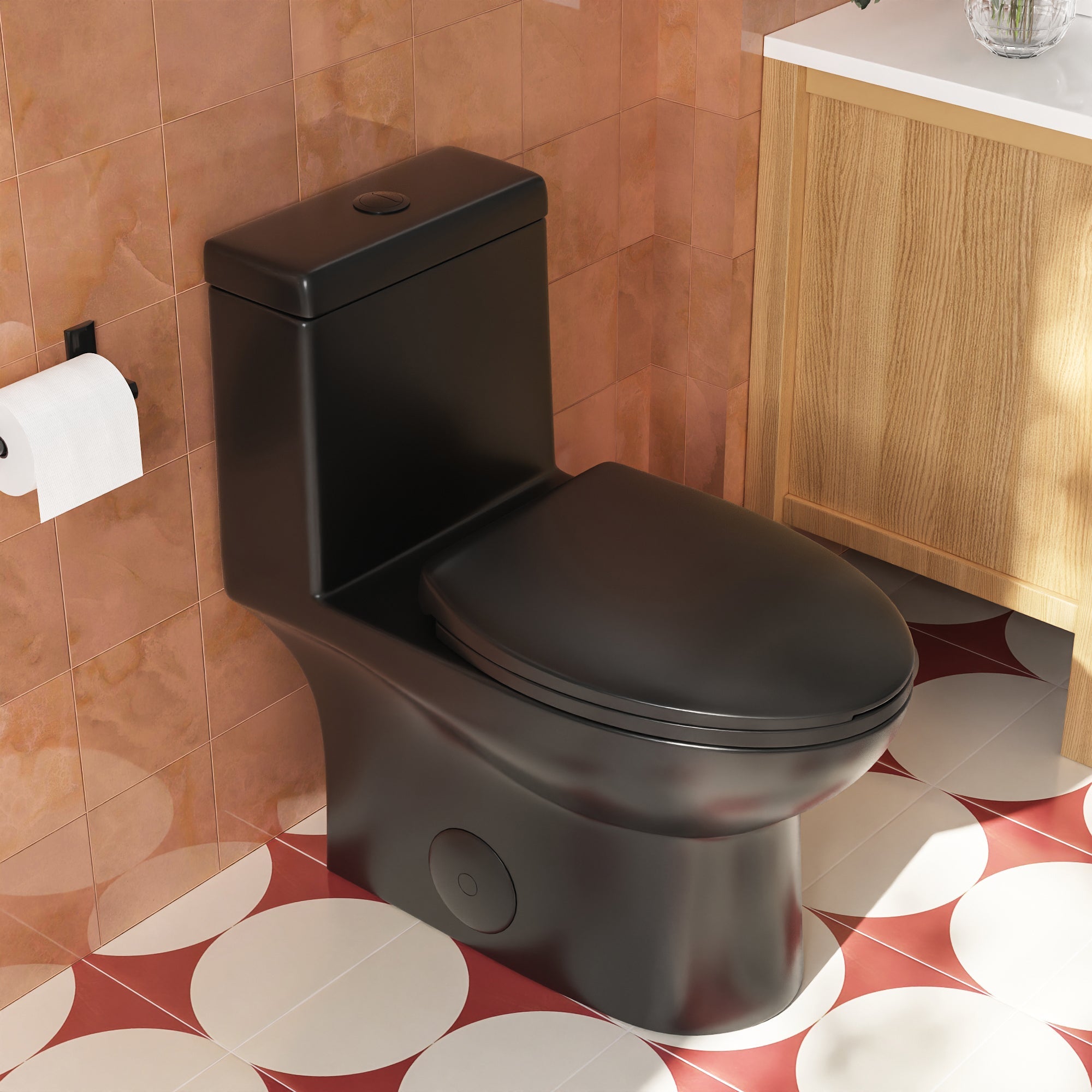

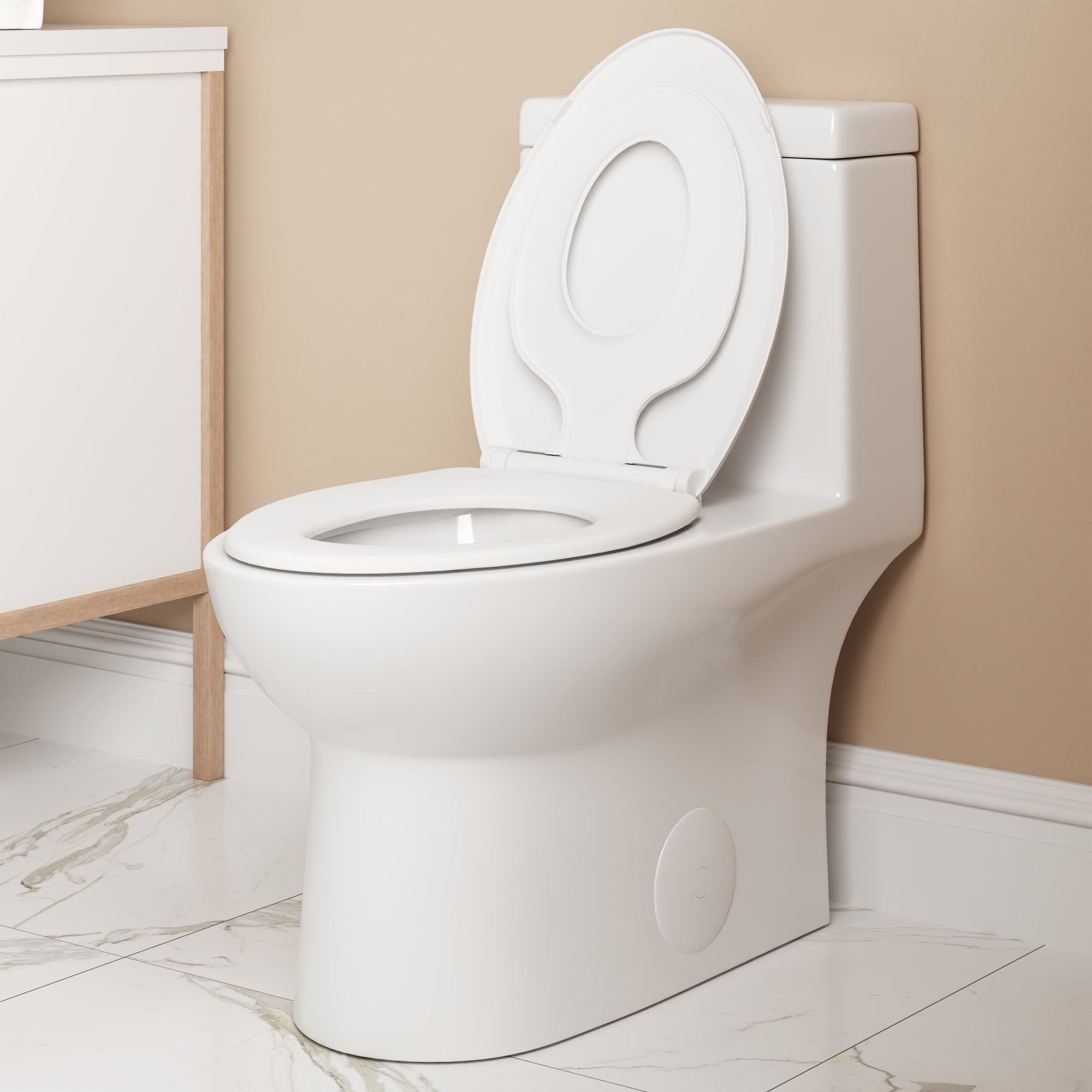

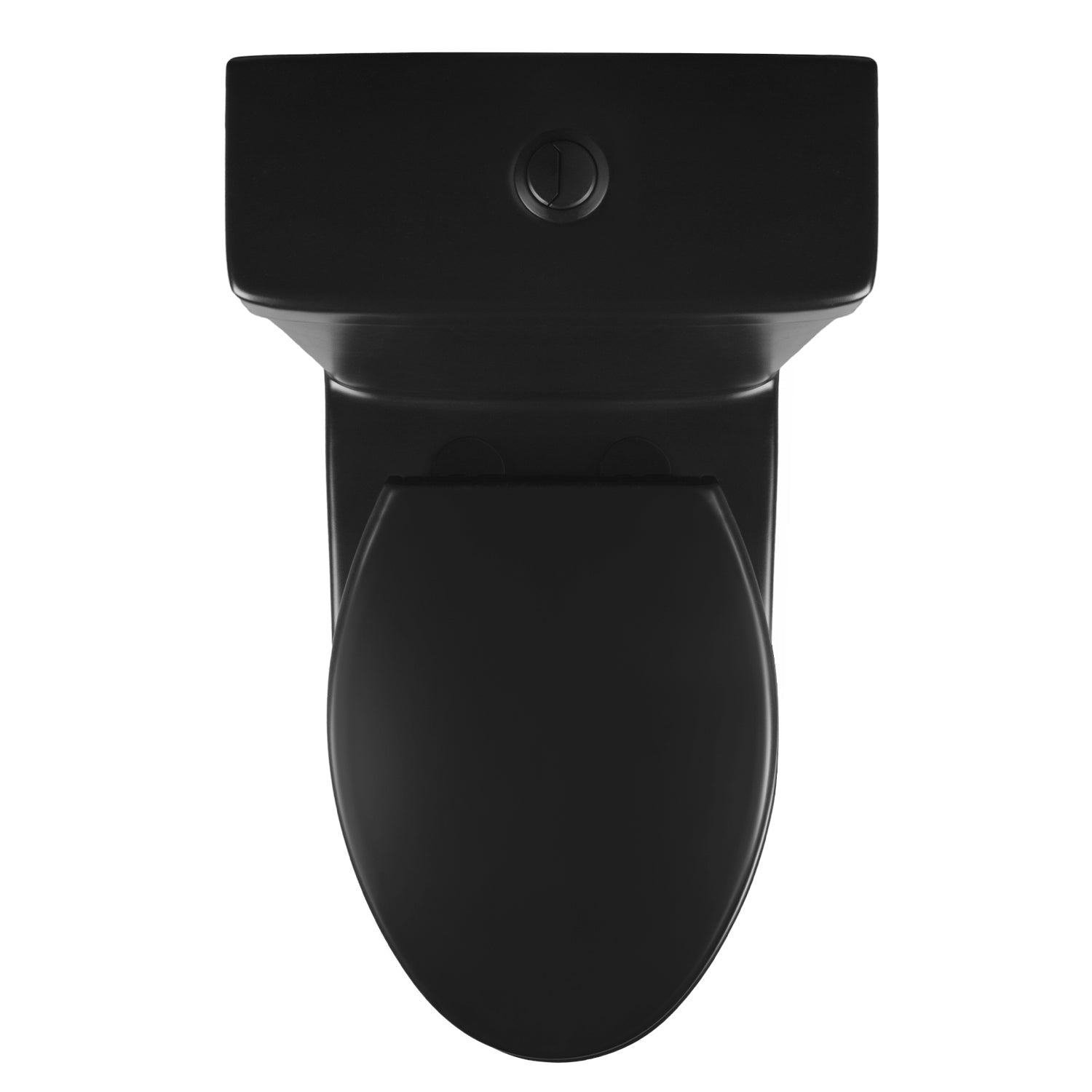

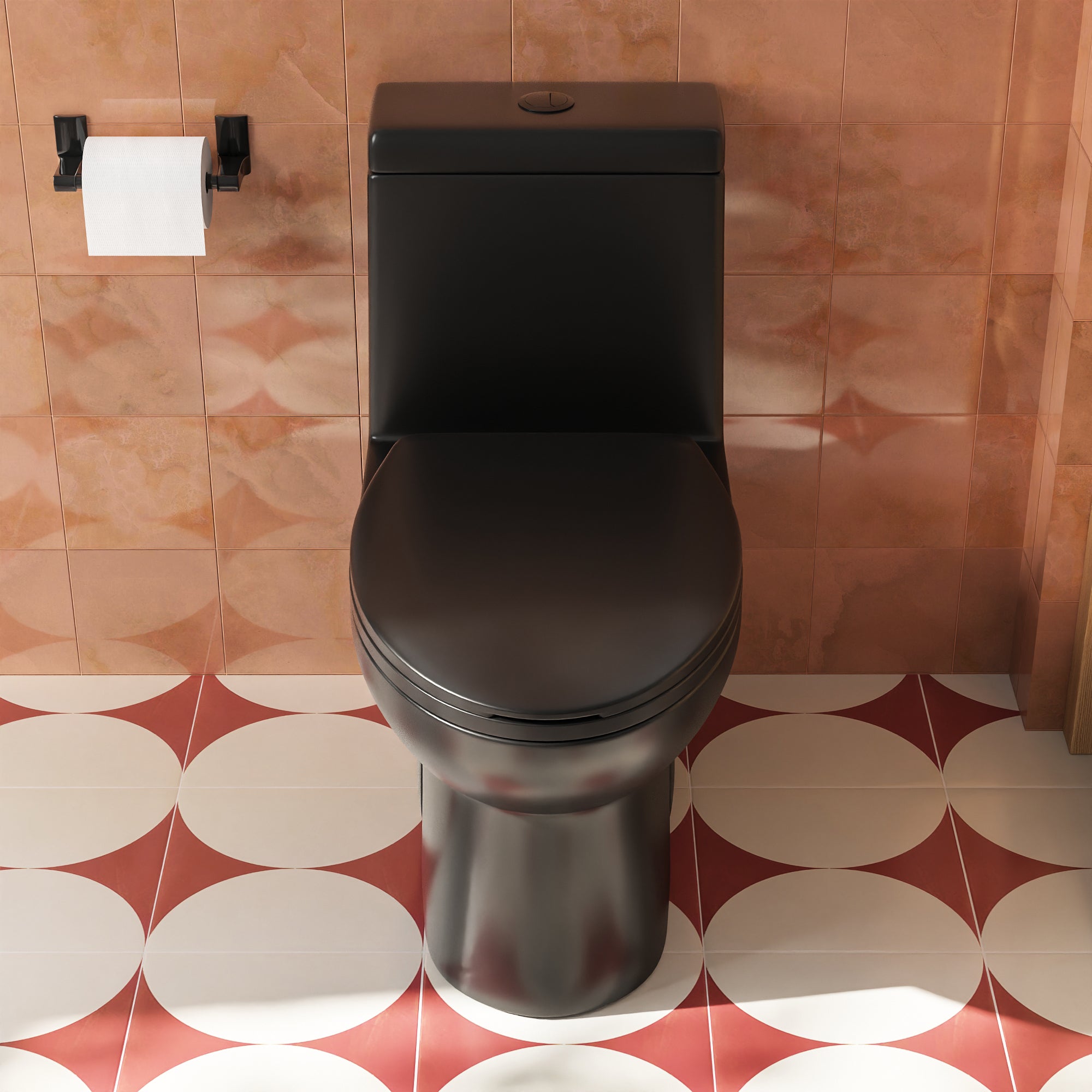

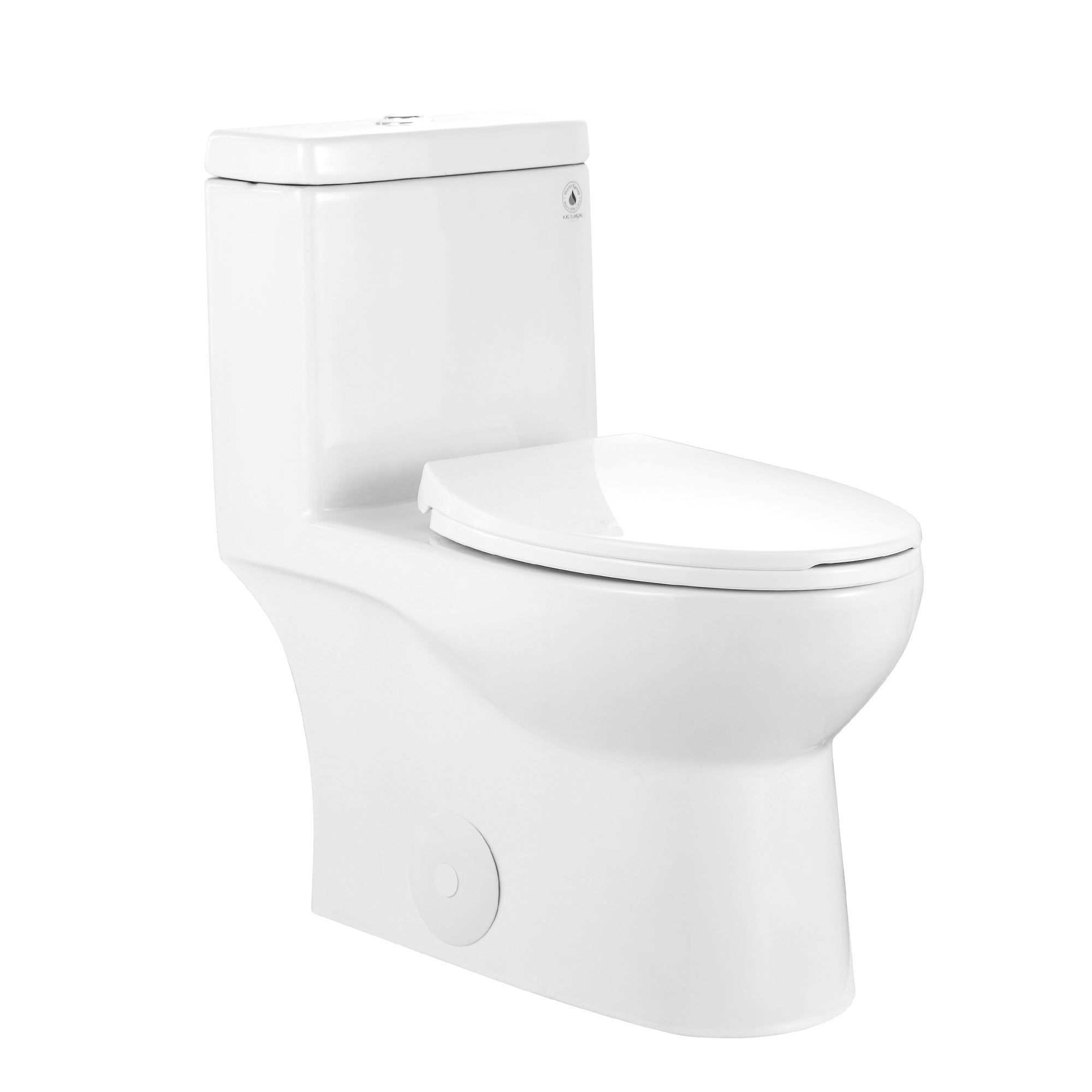

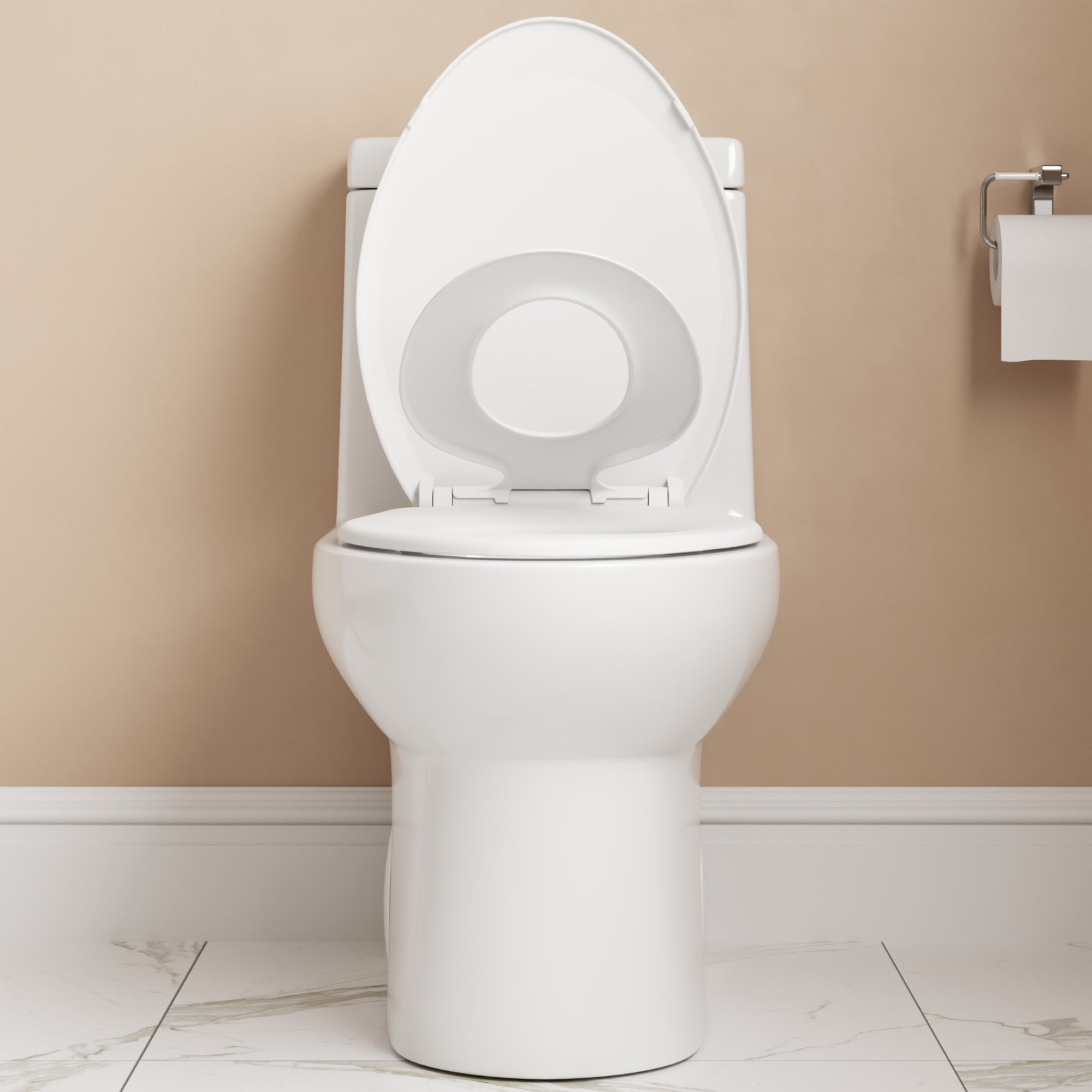

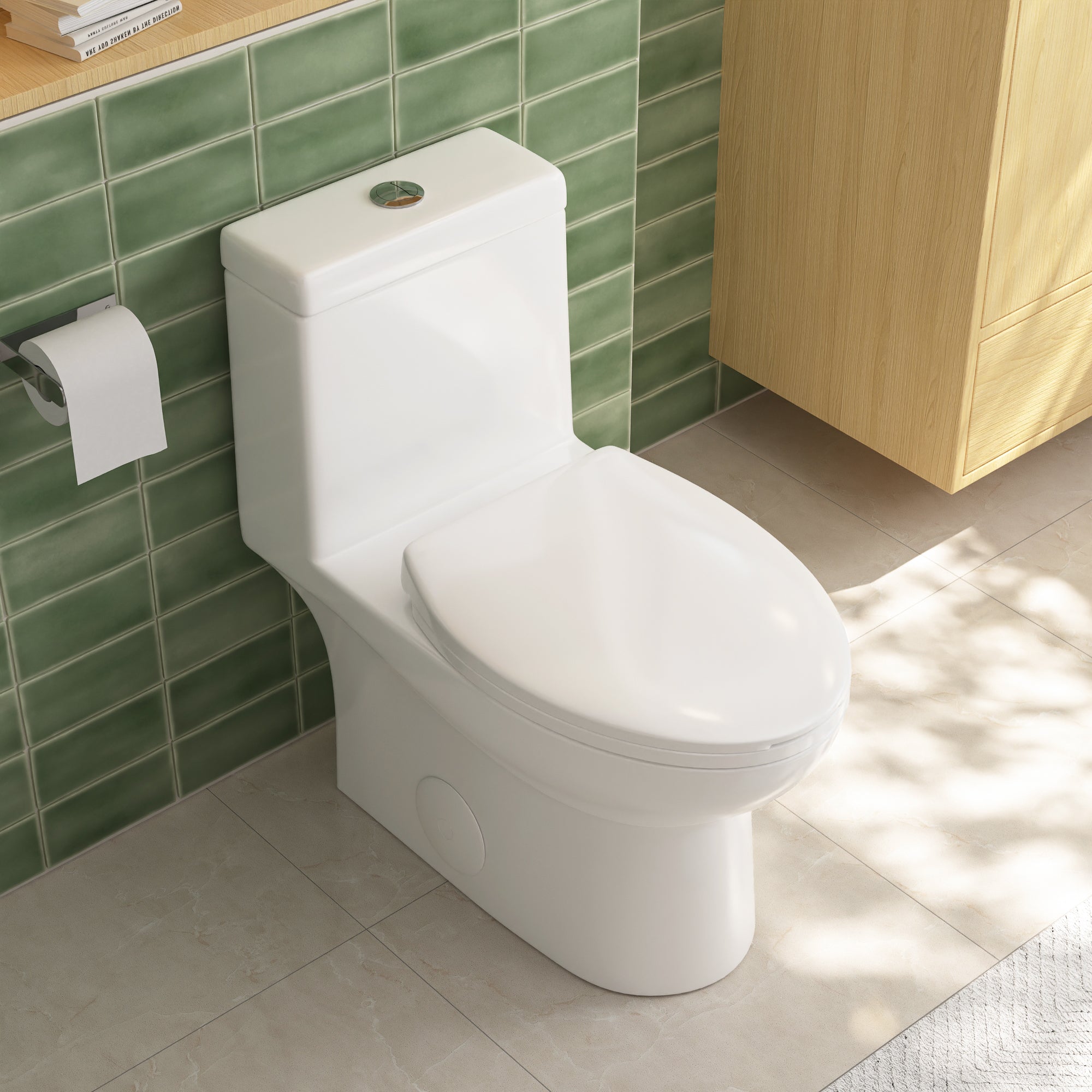

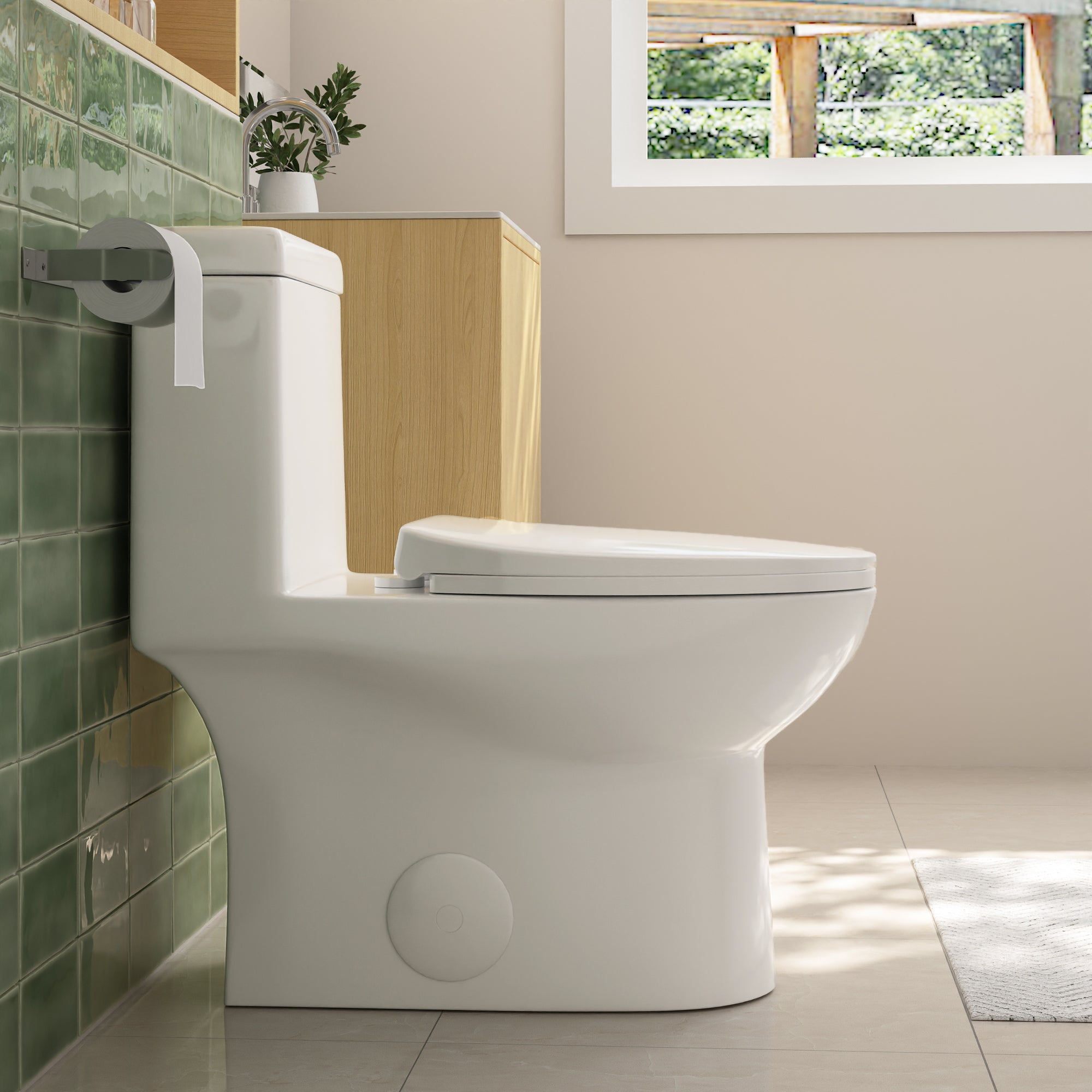

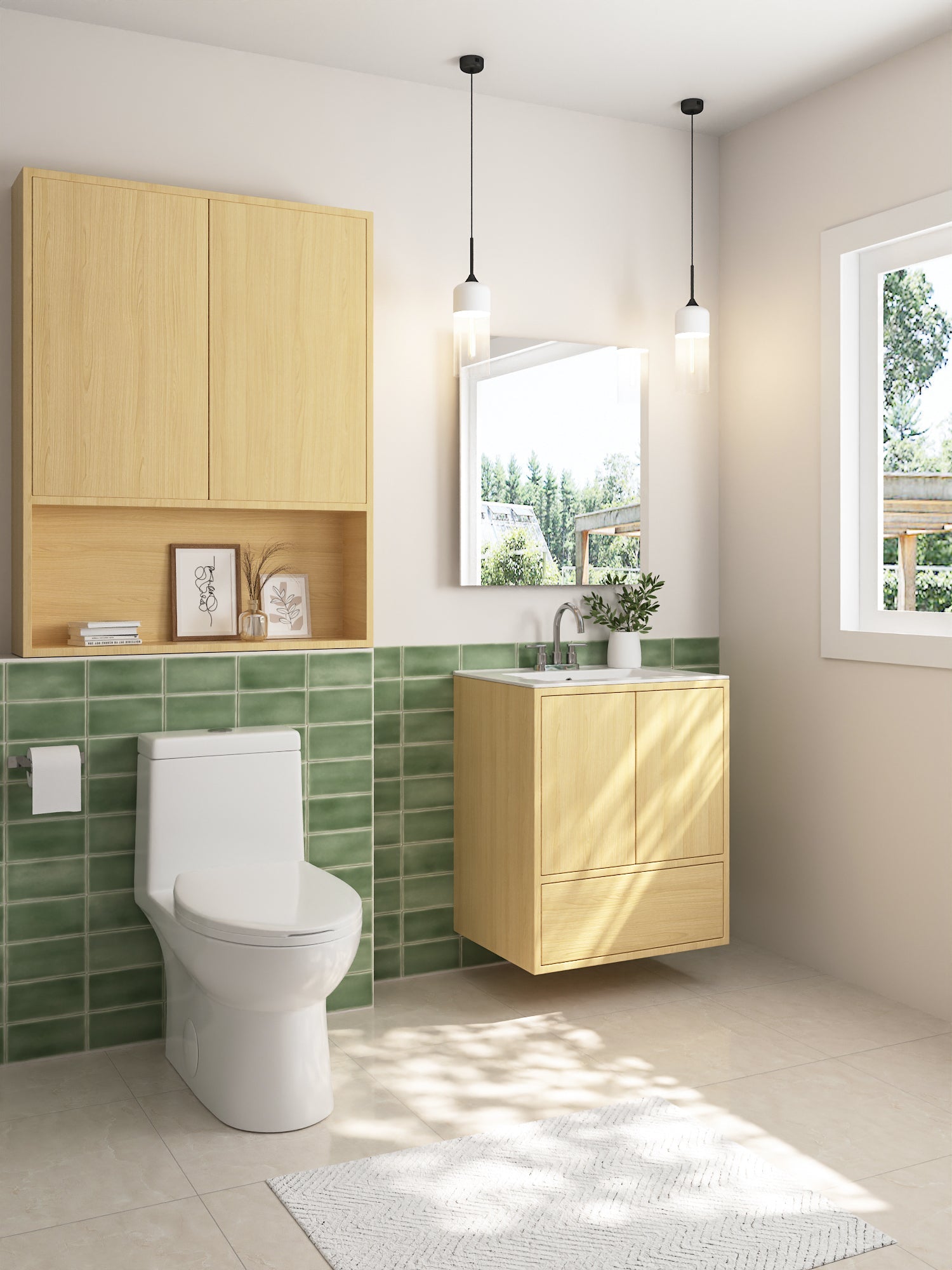

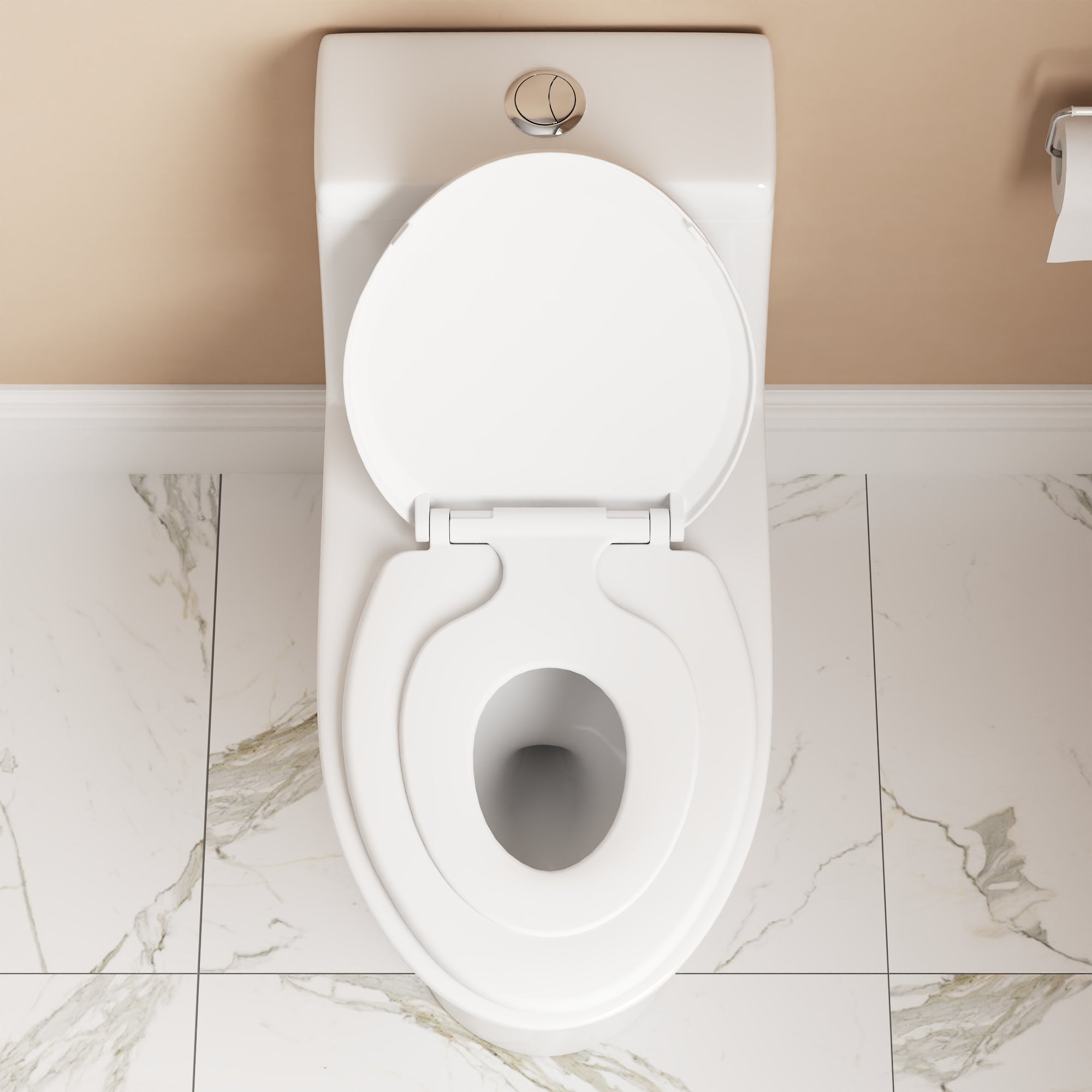

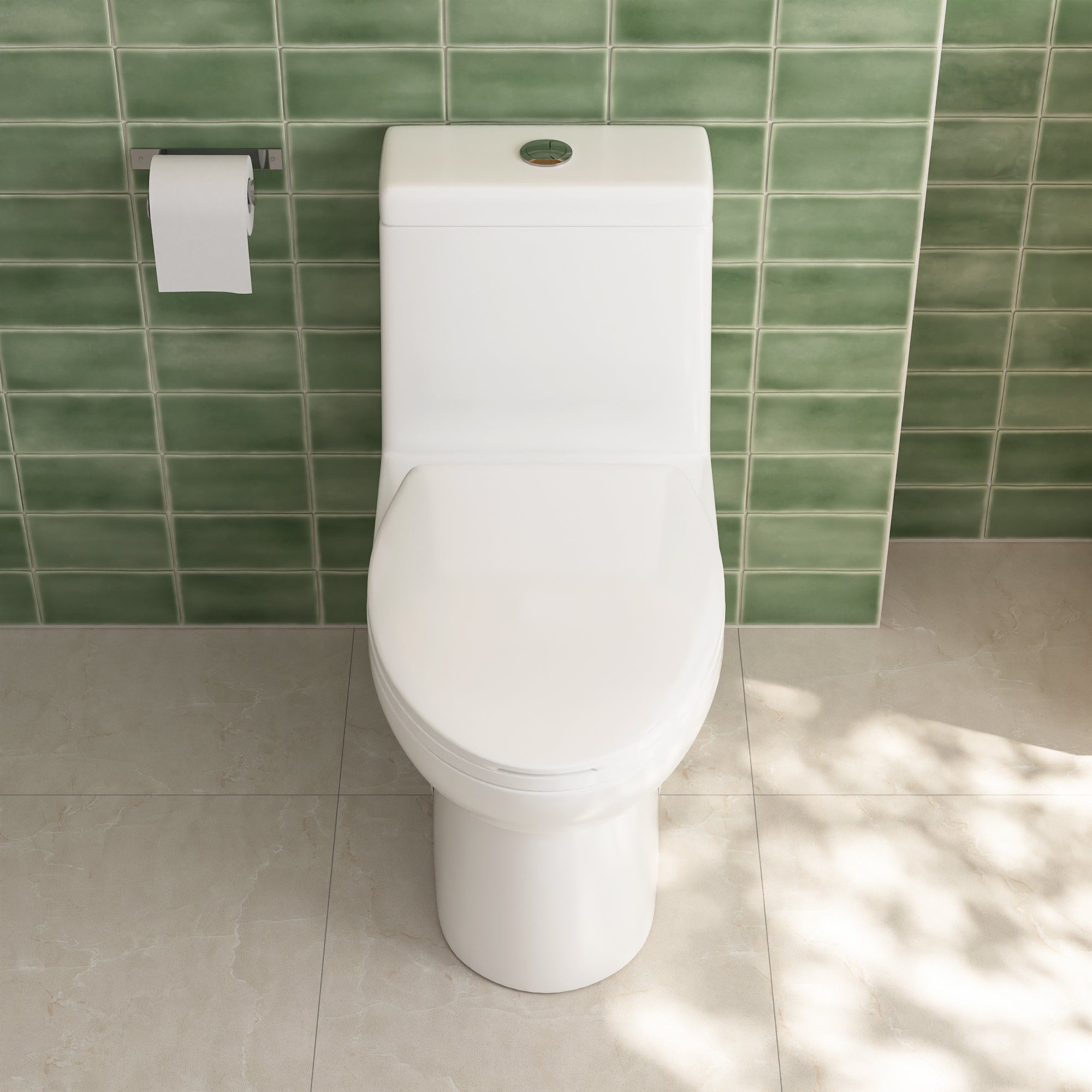

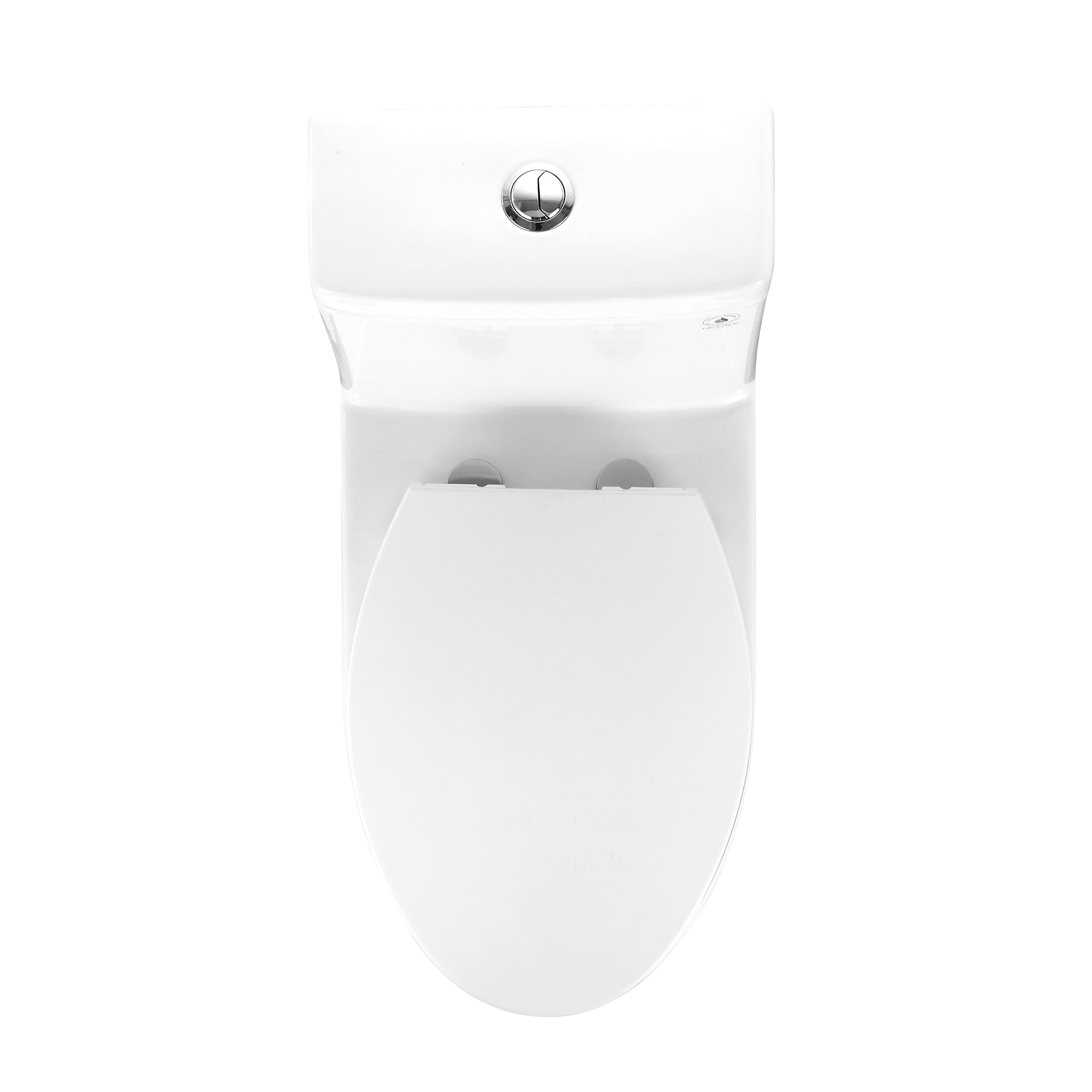

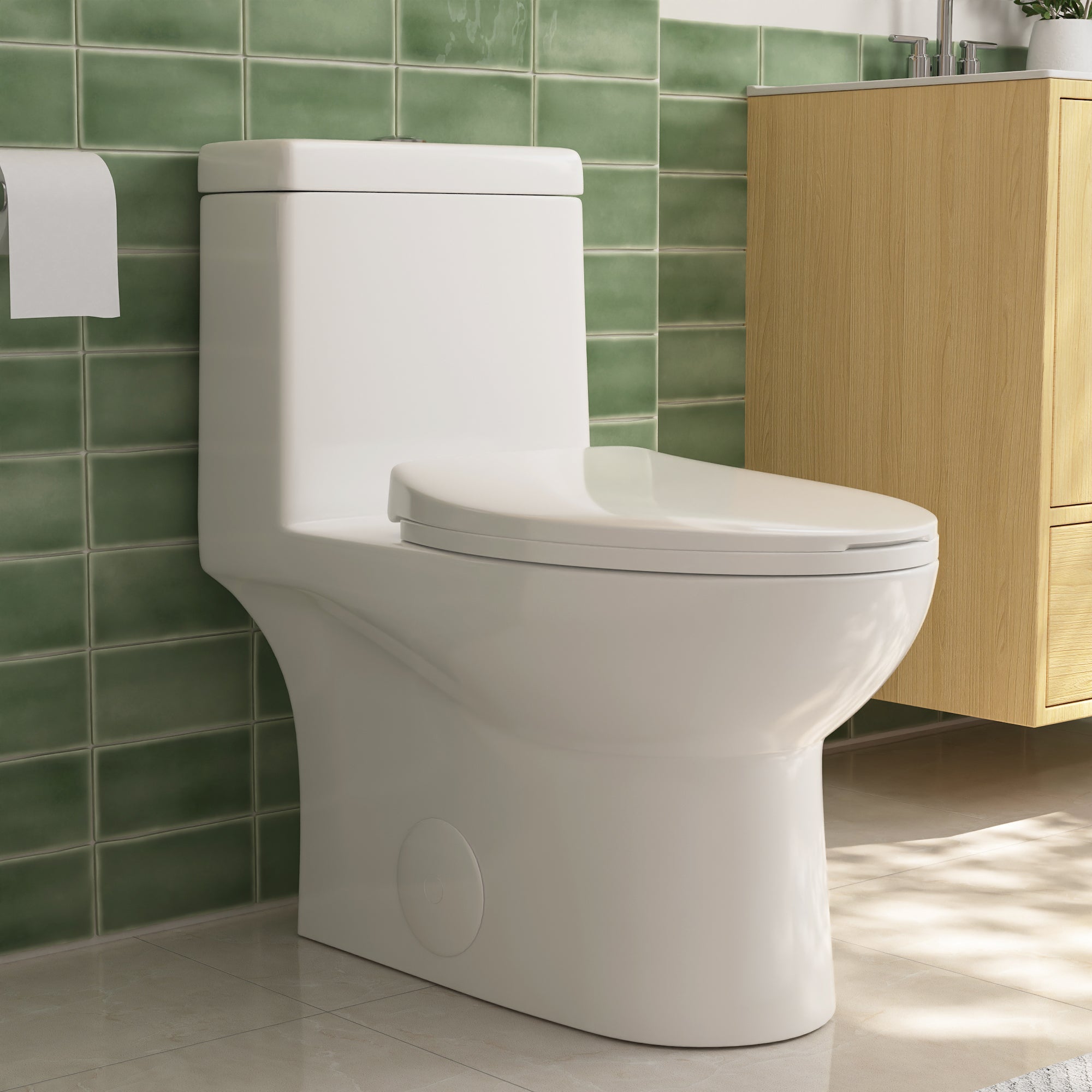

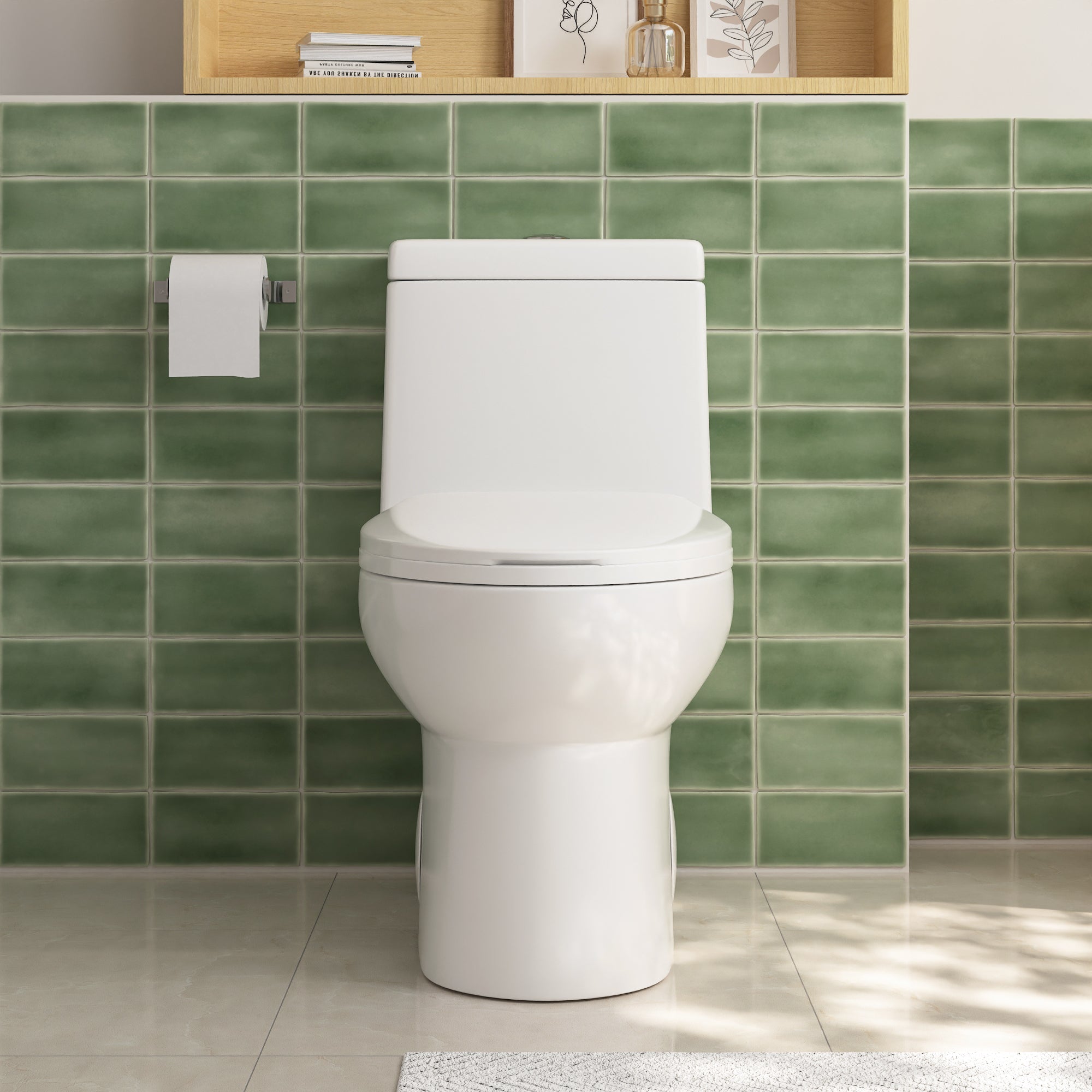

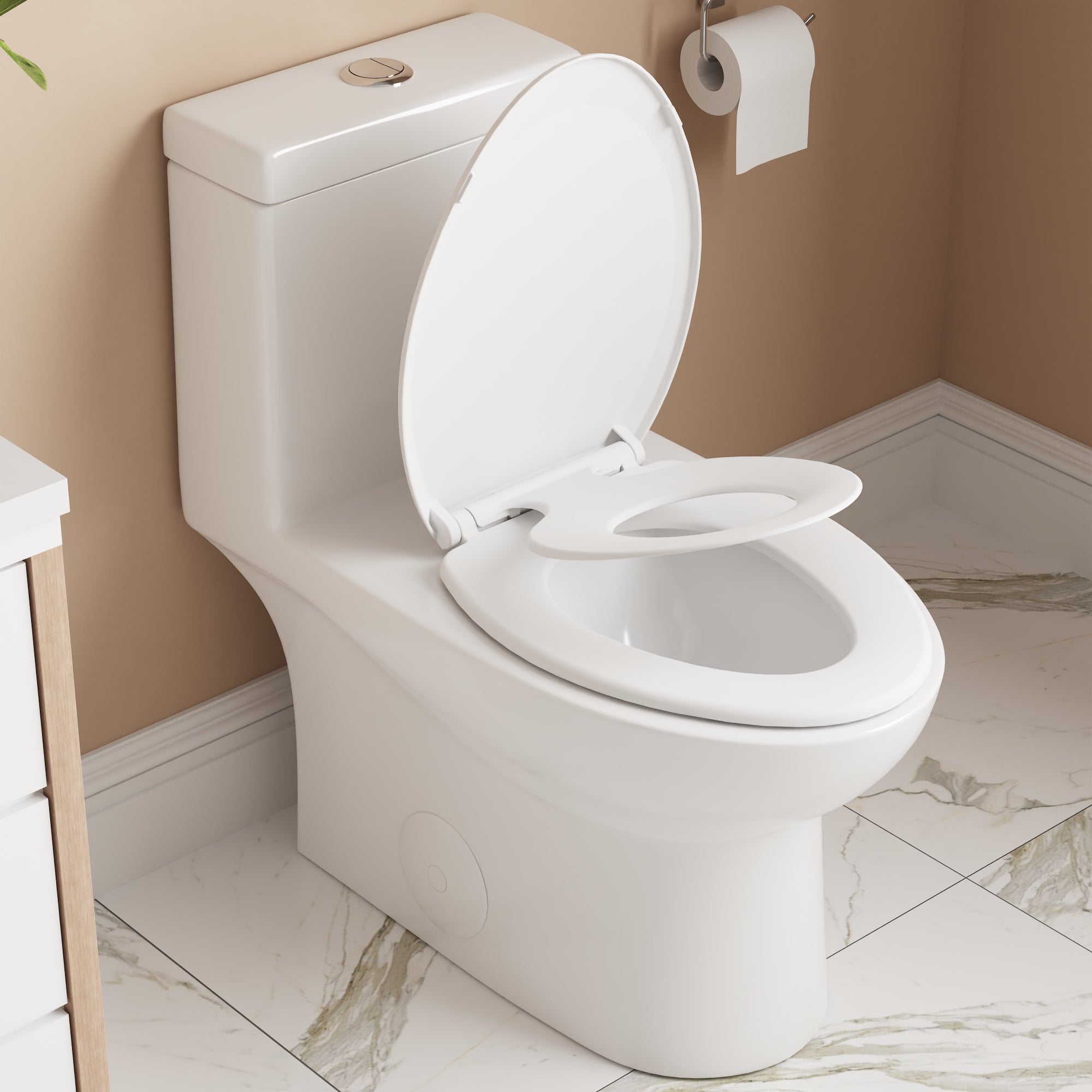

This DeerValley dual-flush elongated floor-mounted one-piece toilet features a contemporary and comfortable design. Its glazed surface adds a sleek touch to your bathroom decor. The toilet’s seat lid closes silently, creating a peaceful bathroom environment for added relaxation. The Dual-Flush feature promotes water conservation, making it an environmentally-friendly choice. Installation is made easy with the included seat and wax rings. The one-piece toilet has a fully skirted surface, which not only enhances its aesthetic appeal but also makes cleaning a breeze.
Features:
• Comfortable Seating: This one-piece toilet offers a comfortable seat height of 16 3/4 inches, making it suitable for most users, except for exceptionally tall individuals. It’s an excellent choice for small spaces and closets.
• Durable Craftsmanship: Crafted from ceramic and glazed through high-temperature calcination, this toilet is not only stylish but also highly durable. It resists pressure, corrosion, and scratches with ease.
• Dual-Flush Efficiency: DeerVally highly efficient dual-flush toilet allows you to conserve water by choosing between 1.1 GPF or 1.6 GPF for different tasks. Its siphon flushing system, combined with a fully glazed flush, delivers powerful and quiet flushing performance, ensuring no clogs, leaks, or issues.
• Effortless Cleaning: Our one-piece toilet features a seamlessly concealed trapway and a fully glazed surface. Cleaning is a breeze with no tricky corners or grooves, ensuring a hygienic and trouble-free experience.
• Easy Installation: Installation is straightforward, but be sure to turn off the water supply before installing this floor-mounted one-piece toilet for a trouble-free setup.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blends comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
MaP：Powerfully blend flushing performance, reliability, waste clearance, and durability.?
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

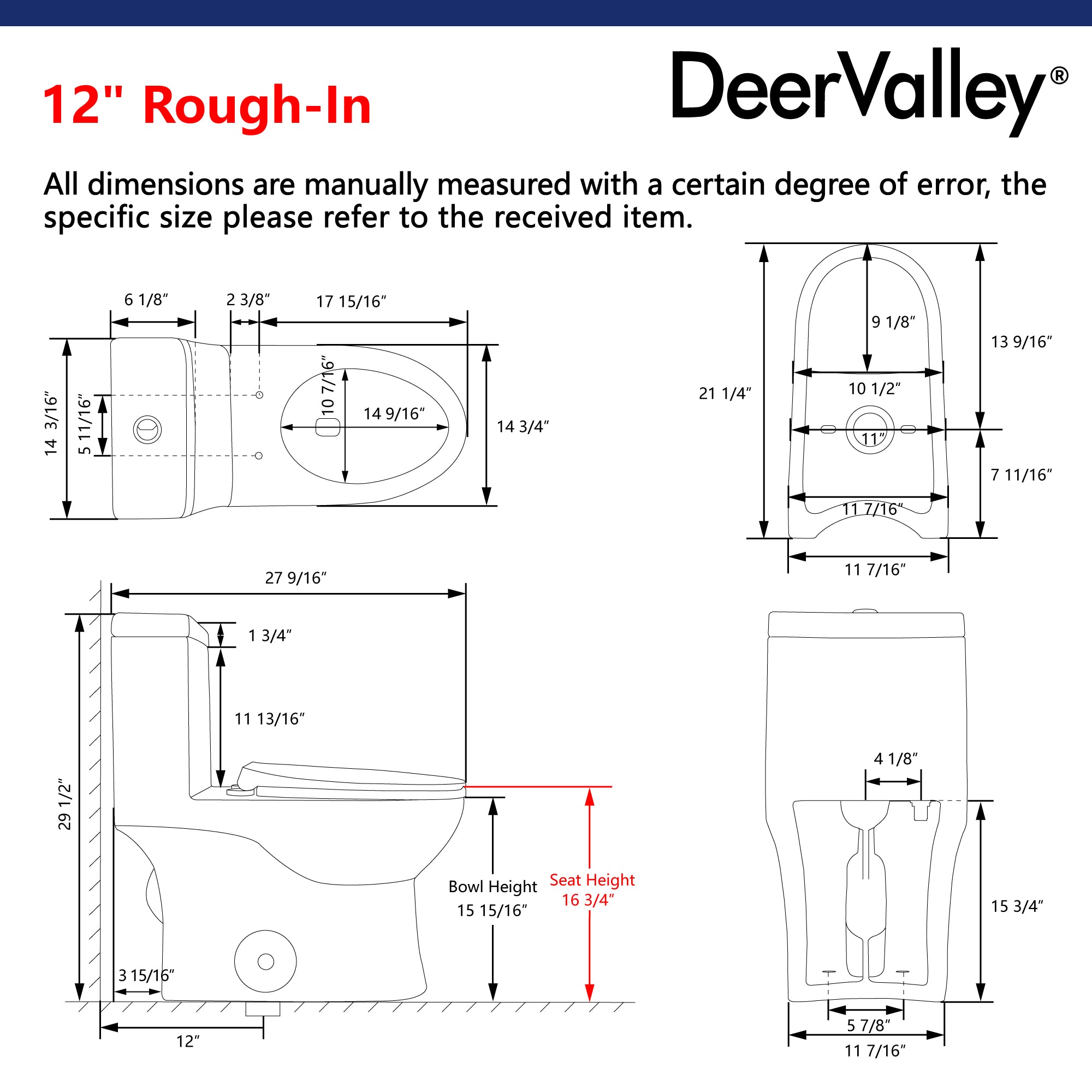

Weights & Dimensions
Overall: 29.53″ H X 14.76″ W X 27.56″ L
Rough In Size: 12.00″
Toilet Seat Height – Top to Bottom: 16.73″
Bowl Height – Top to Bottom: 15.94″
Tank: 14.17″ L X 6.10″ W X 11.81″ H
Tank Lid: 14.17″ L X 6.10″ W X 1.77″ H
Bolts Spread Distance: 5.71″
Distance from the Seat Installation Hole to the Tank: 2.36″
Distance from the Back of the Toilet to the Wall: 3.94″
Toilet Installation Hole Distance: 5.91″
Height from the Bottom of the Water Tank to the Ground: 15.75″
Distance Between the Center of Adapter and the Center of Trapway: 4.13″
Trapway Diameter( Inside ): 2.36″

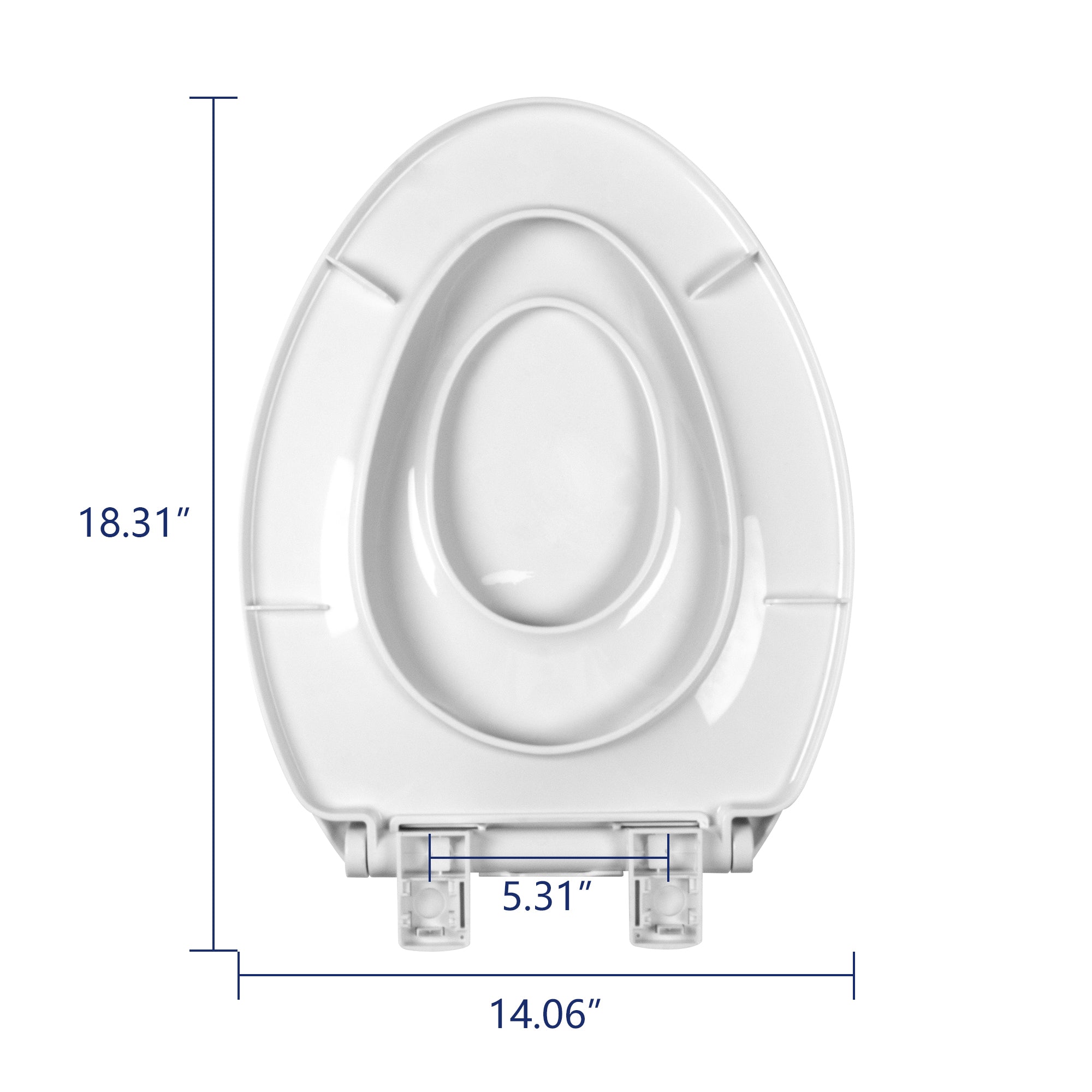

Toilet Seat: 1.97 Back/1.38 Front ” H X 13.78″ W X 17.91″ L
Toilet Seat Inside Ring: 7.68″ W X 11.93″ L
Bowl: 14.57″ L X 10.43″ W X 15.94″ H
Toilet Base Dimension: 21.26″ L X 11.42″ W
Overall Product Weight: 111 lb

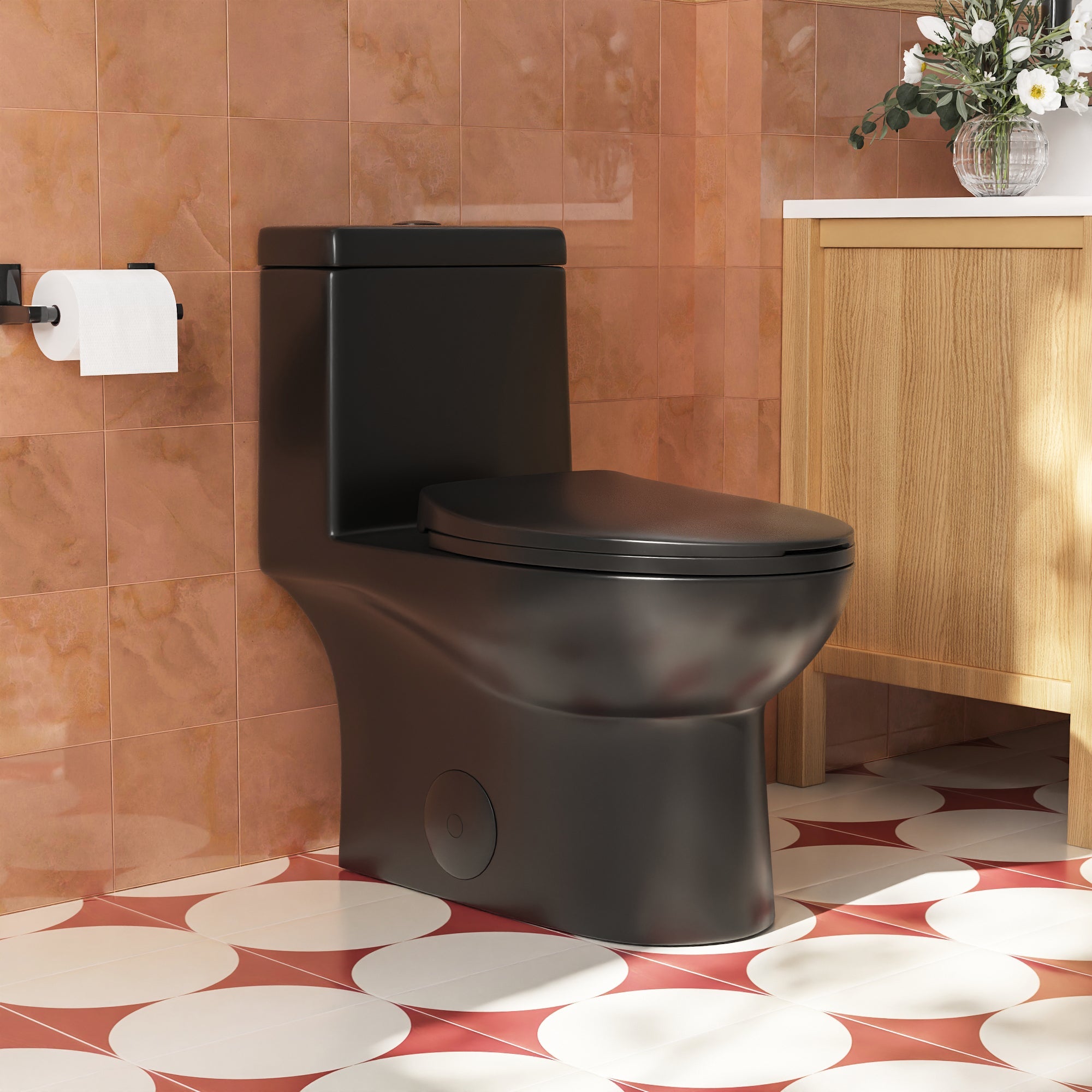

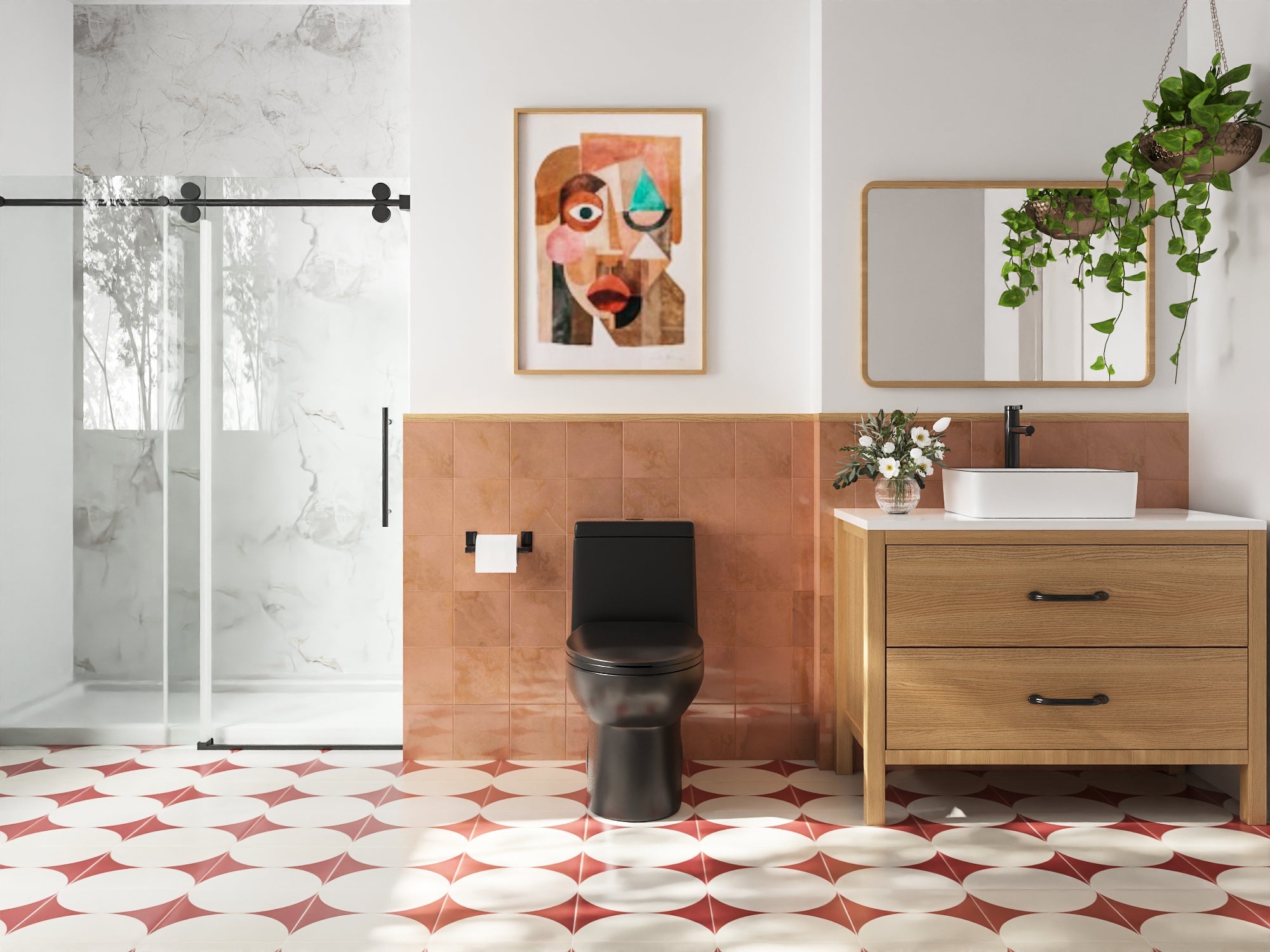

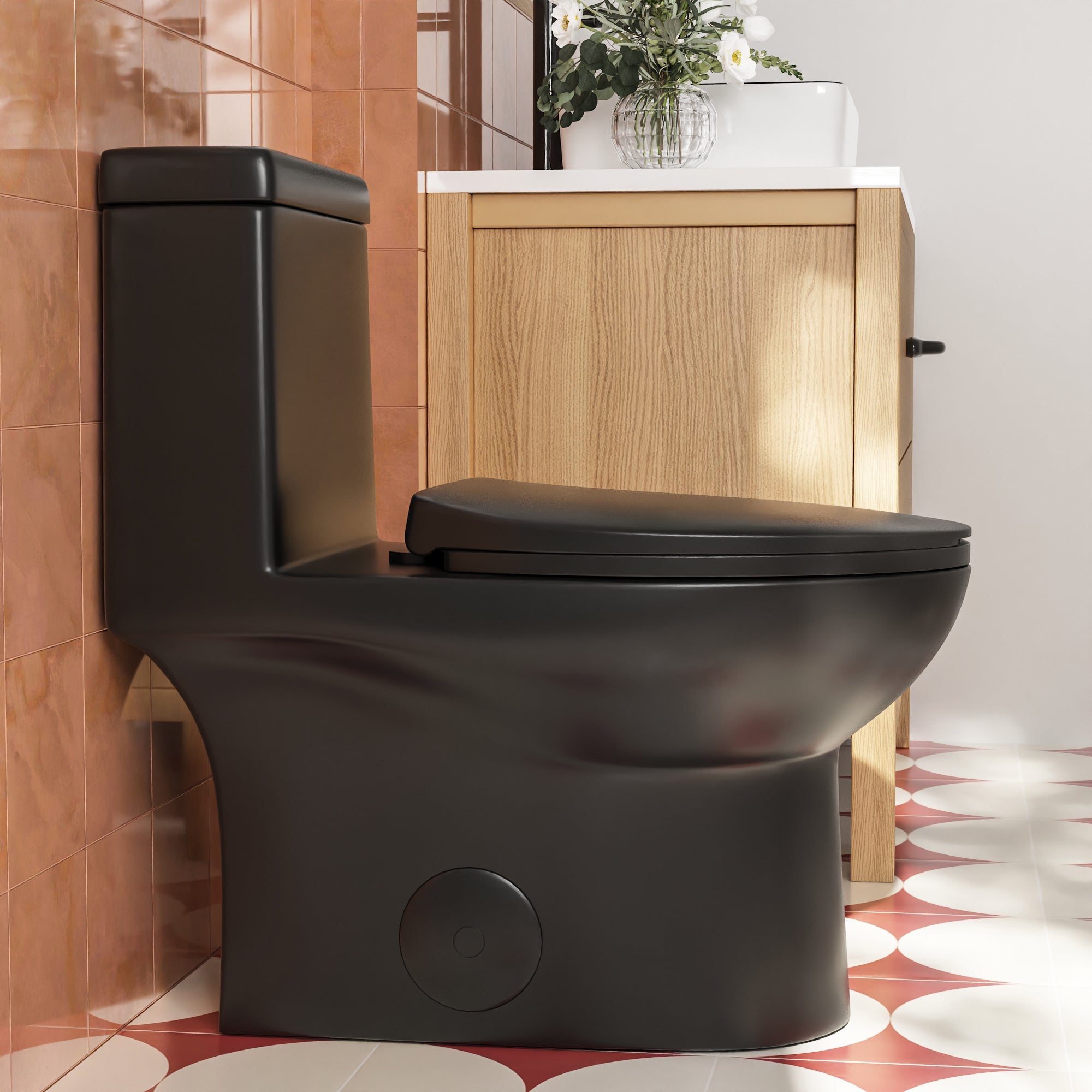

Color: White/Black
Flush Volume: 1.1/1.6 GPF
(DV-1F52816)
What is included in the package?
•
Fill Valve , Toilet Seat, Toilet installation package, Toilet tank side lid, Installation instruction
Compatible Accessories
• Fill Valve: DV-F816V01
• Toilet Seat for DV-1F52816: DV-F068S11 /DV-F068S21
• Toilet Seat for DV-1F52816B: DV-F816BS11
• Waxring and Bolts Kit: DV-F008P11
• Flush Button for DV-1F52816: DV-F812V31
• Flush Button for DV-1F52816B: DV-F816BV31
• Tank Lid for DV-1F52816:?DV-F816T11
• Tank Lid for DV-1F52816B: DV-F816BT11
• Side Bolt Cover for DV-1F52816:?DV-F026P21
• Side Bolt Cover for DV-1F52816B: DV-F026BP21
• Toilet Seat Installation Kit for DV-1F52816: DV-F816S01
• Toilet Seat Installation Kit for DV-1F52816B: DV-F816BS01
Toilet Seat Bidet
DeerValley’s Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.
•
DV-1B0093 & DV-1B0095
Installation Manual:
?DV-1F52816
DV-1F0182
Spec Sheet:
?
