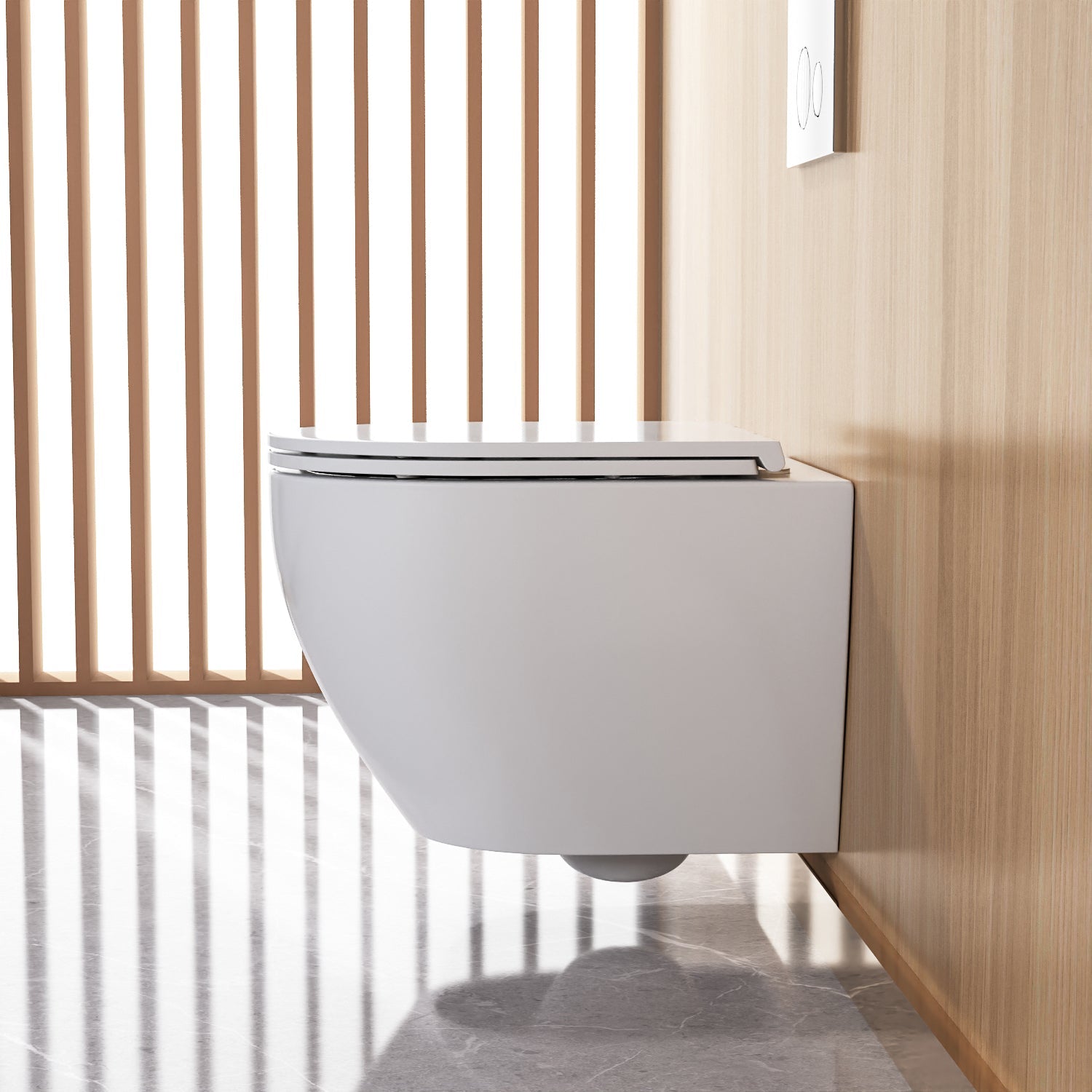

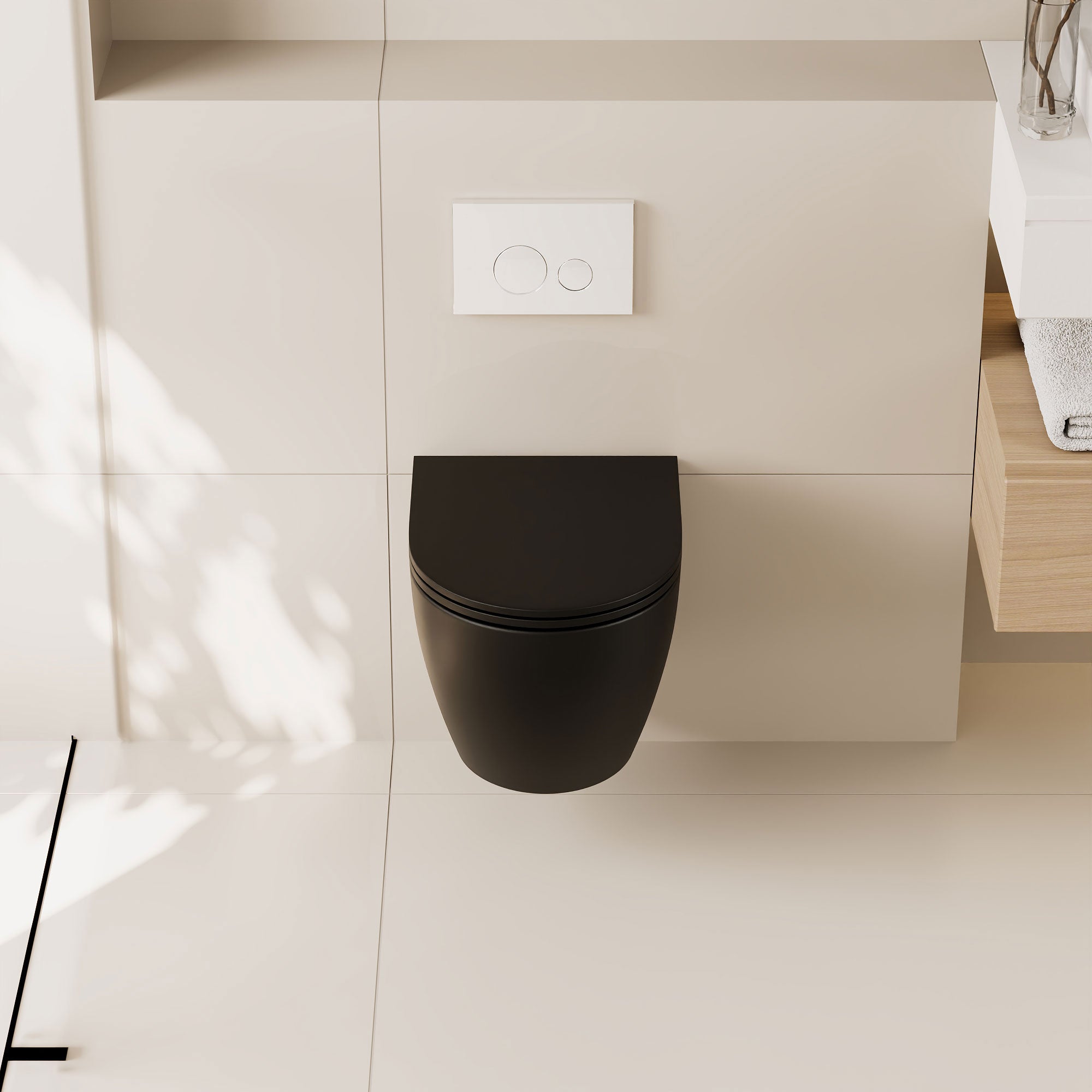

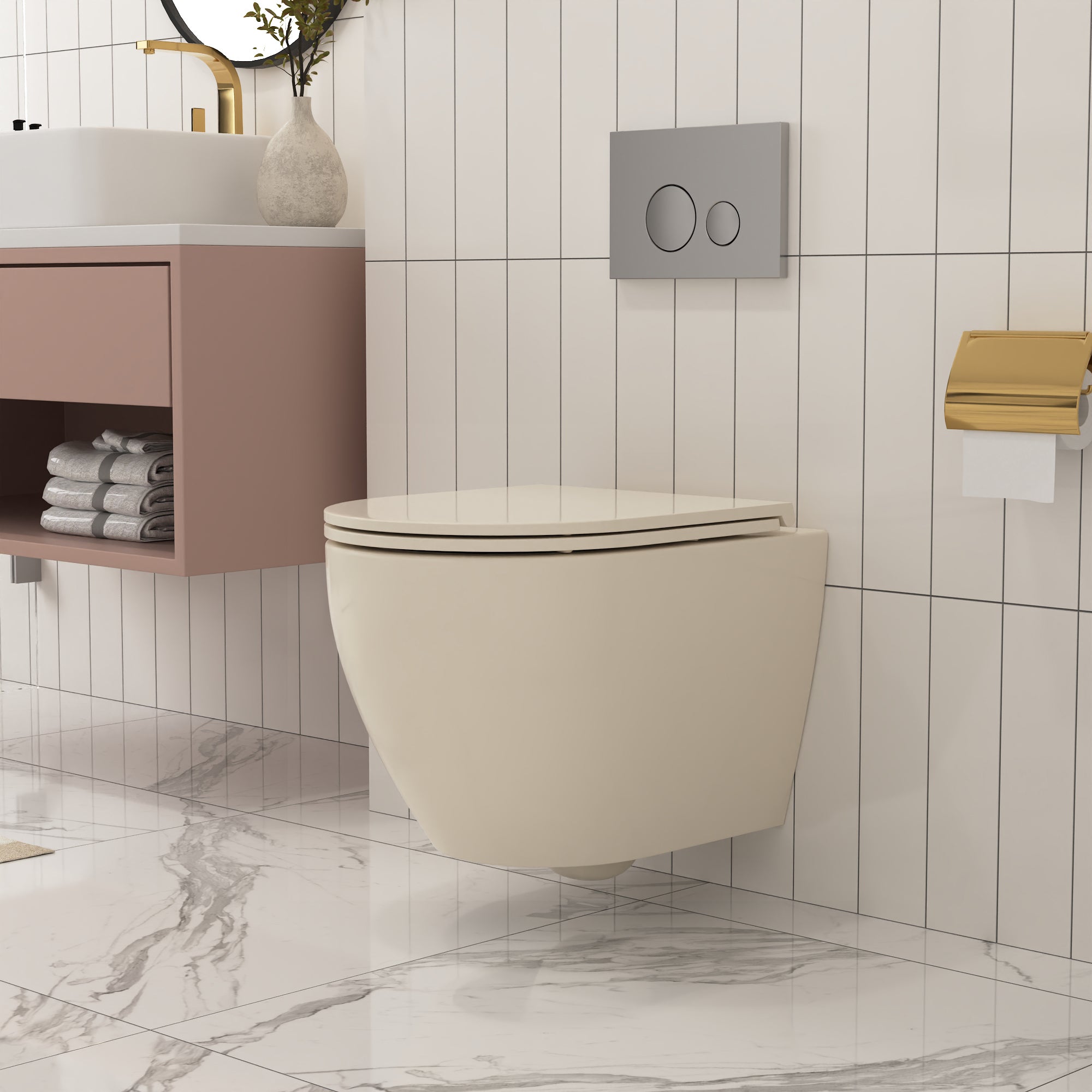

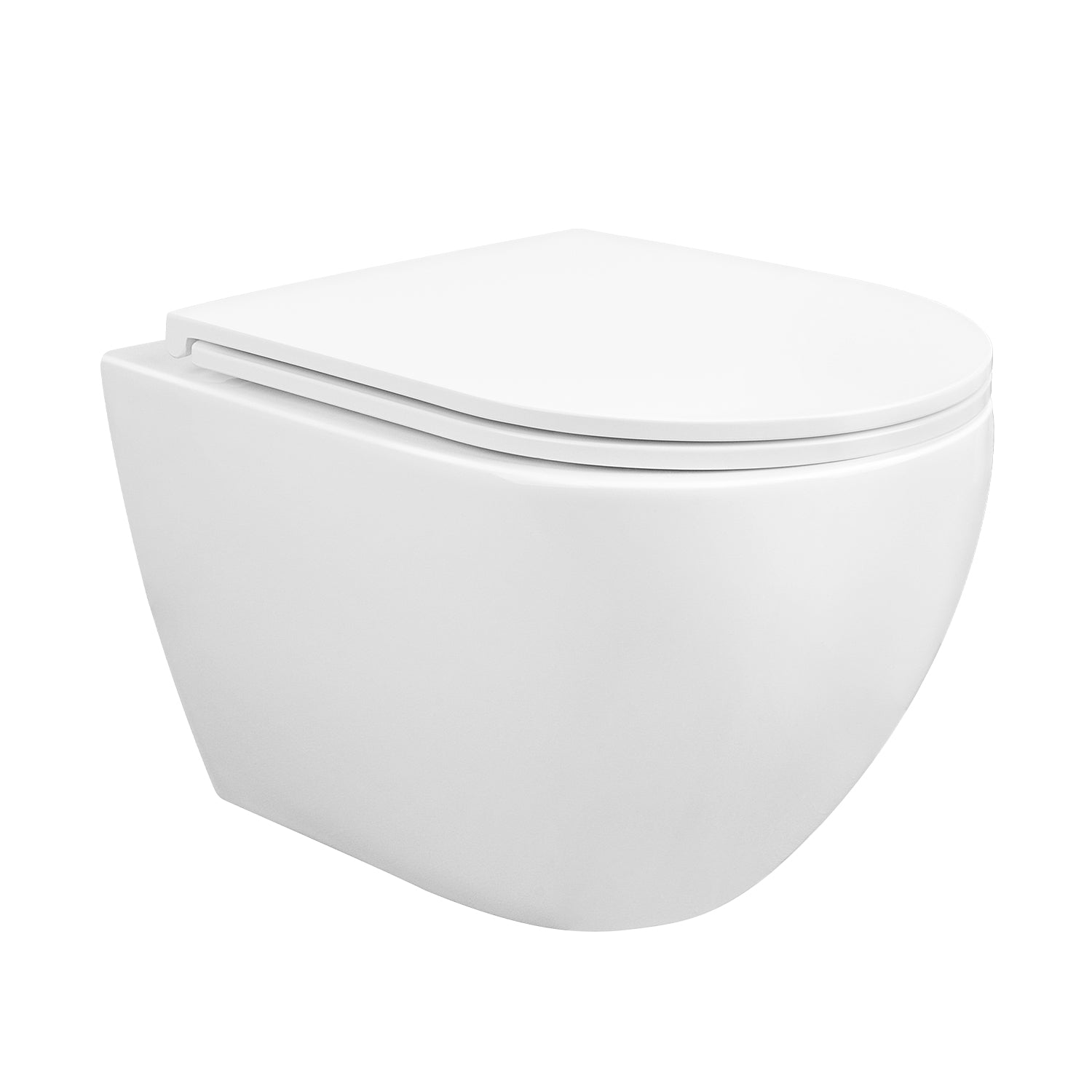

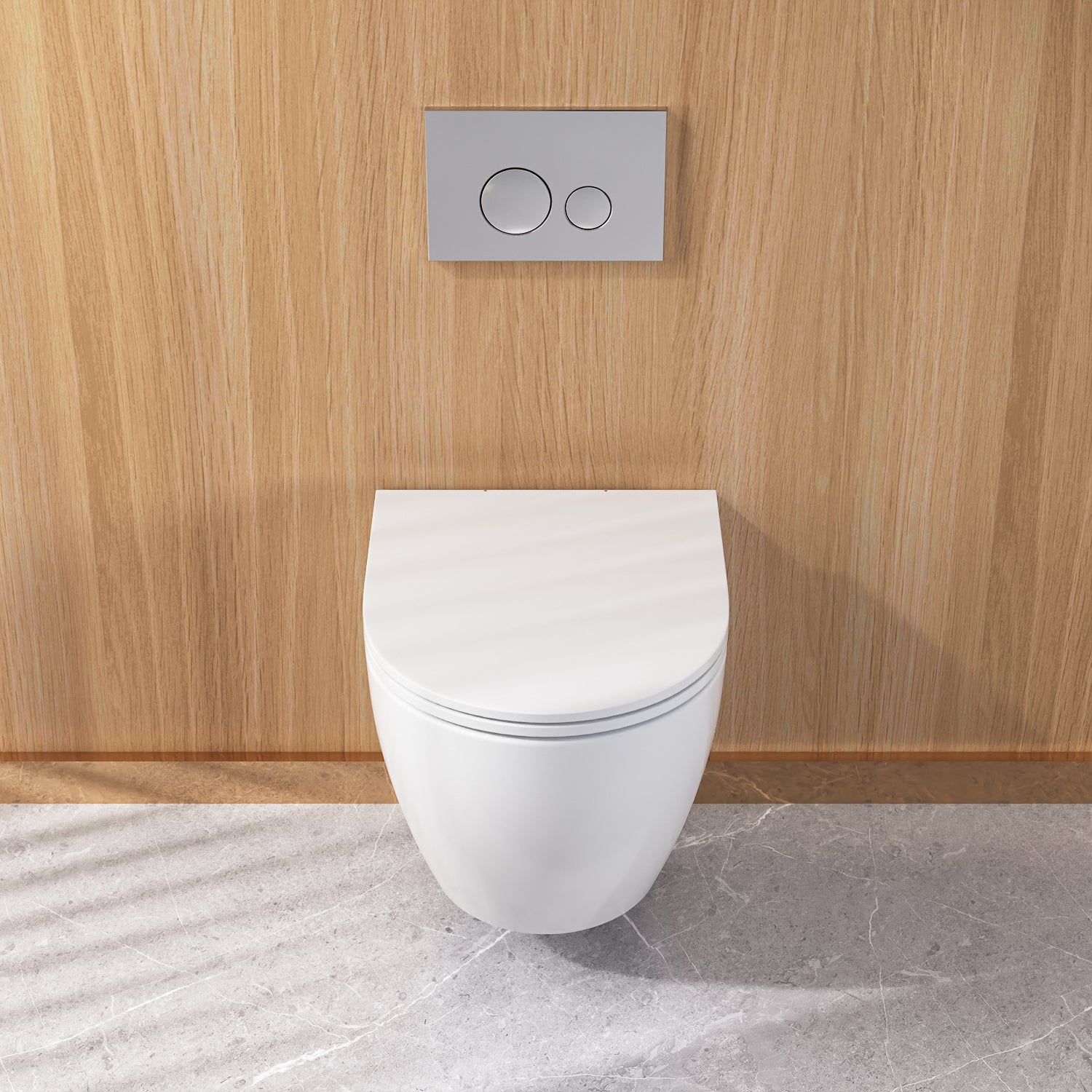

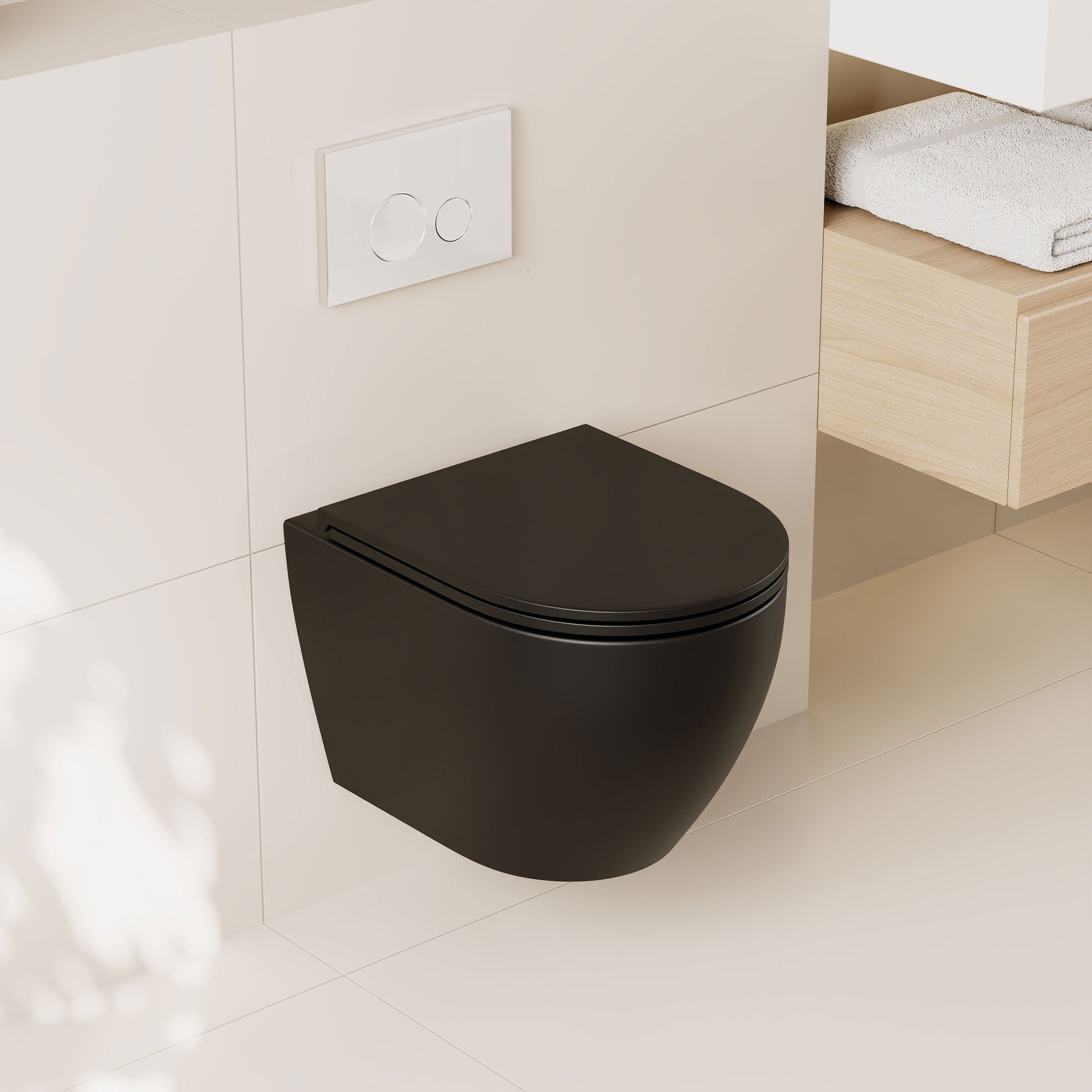

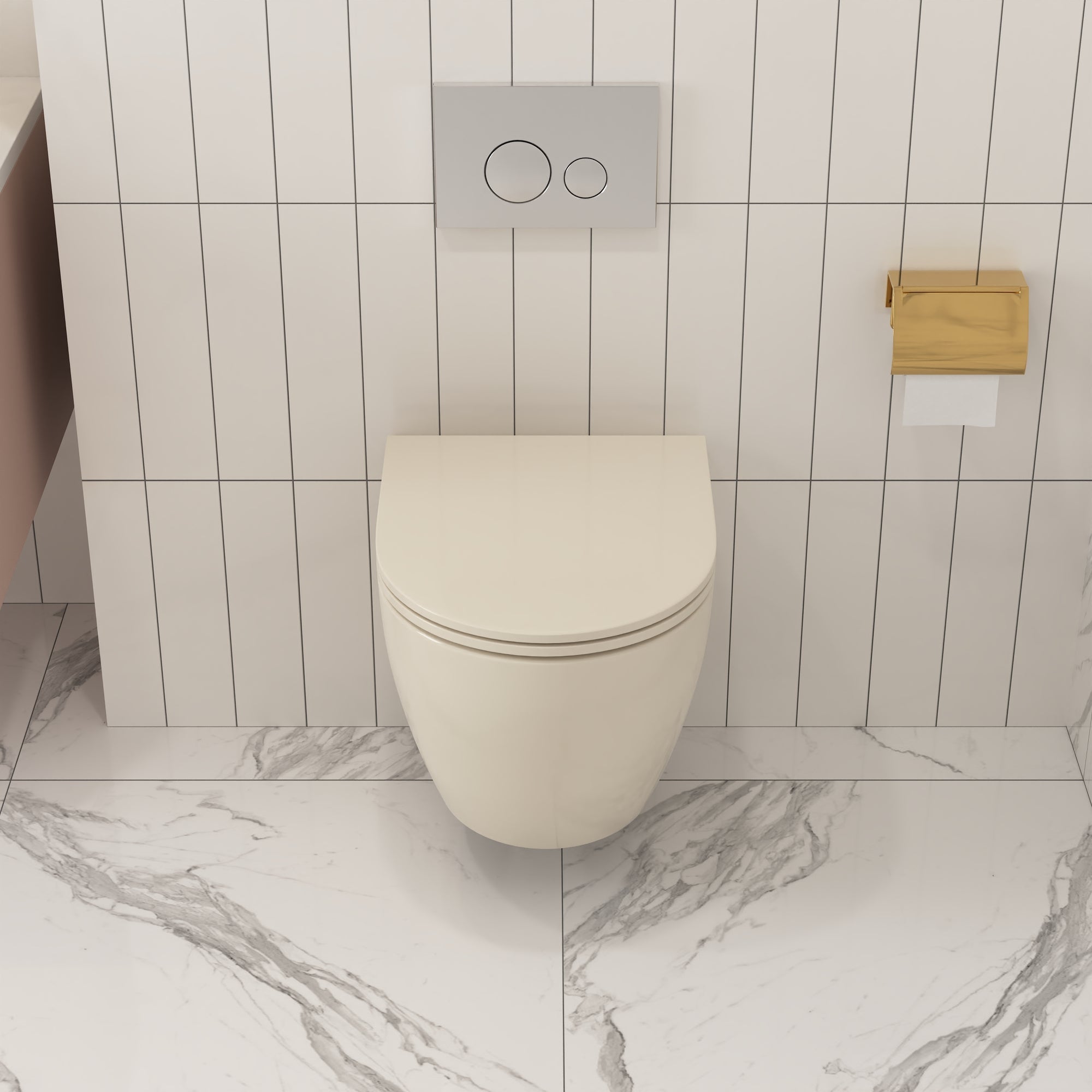

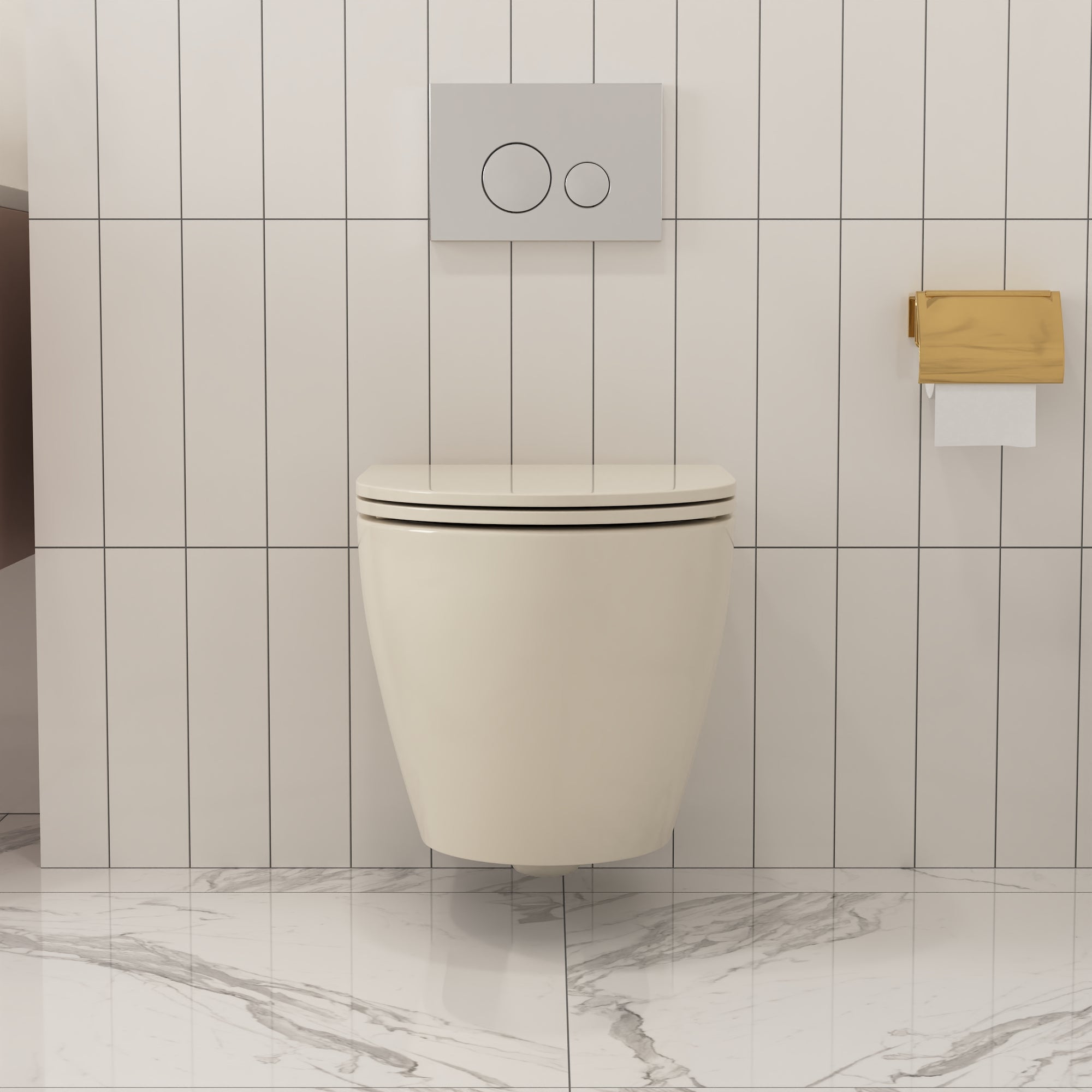

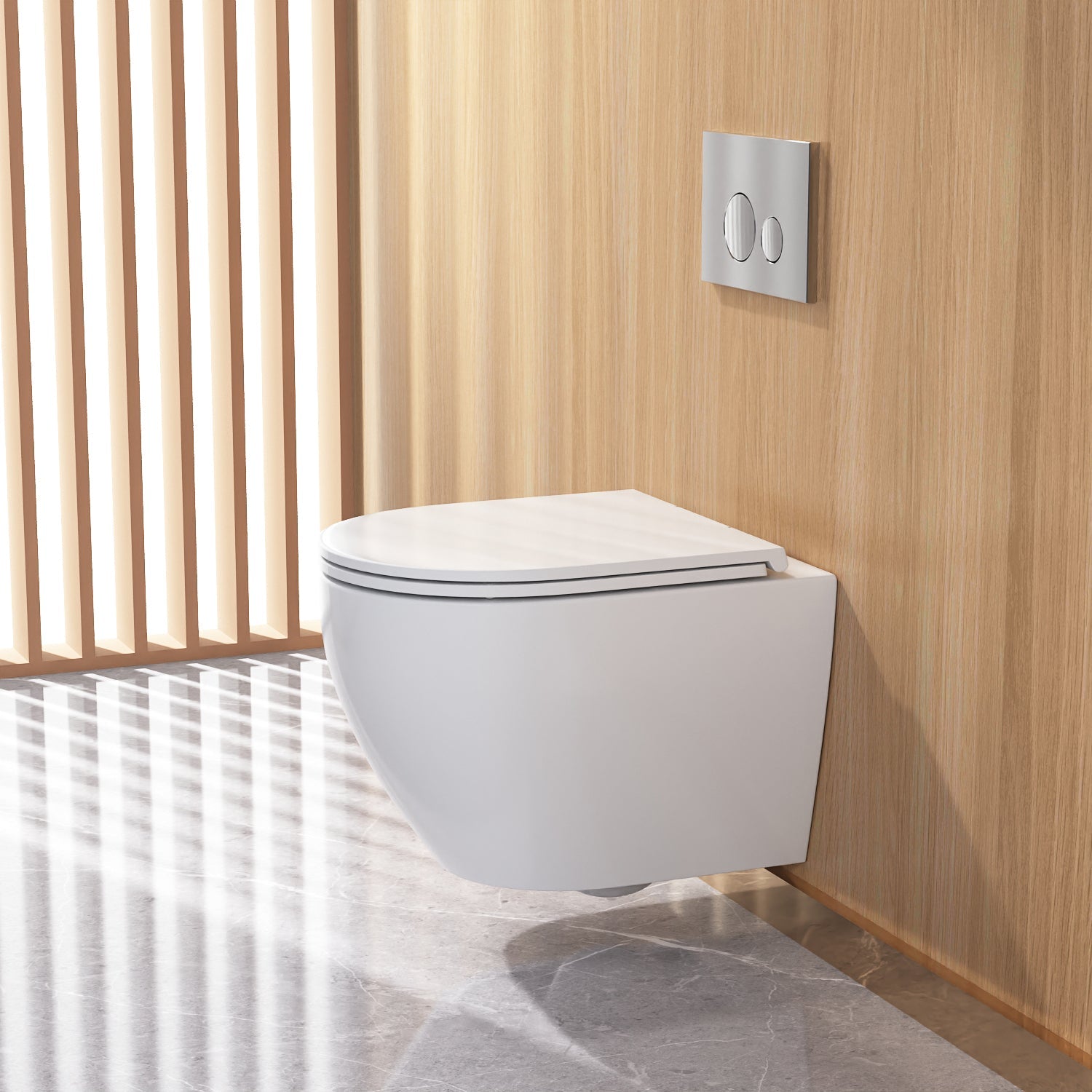

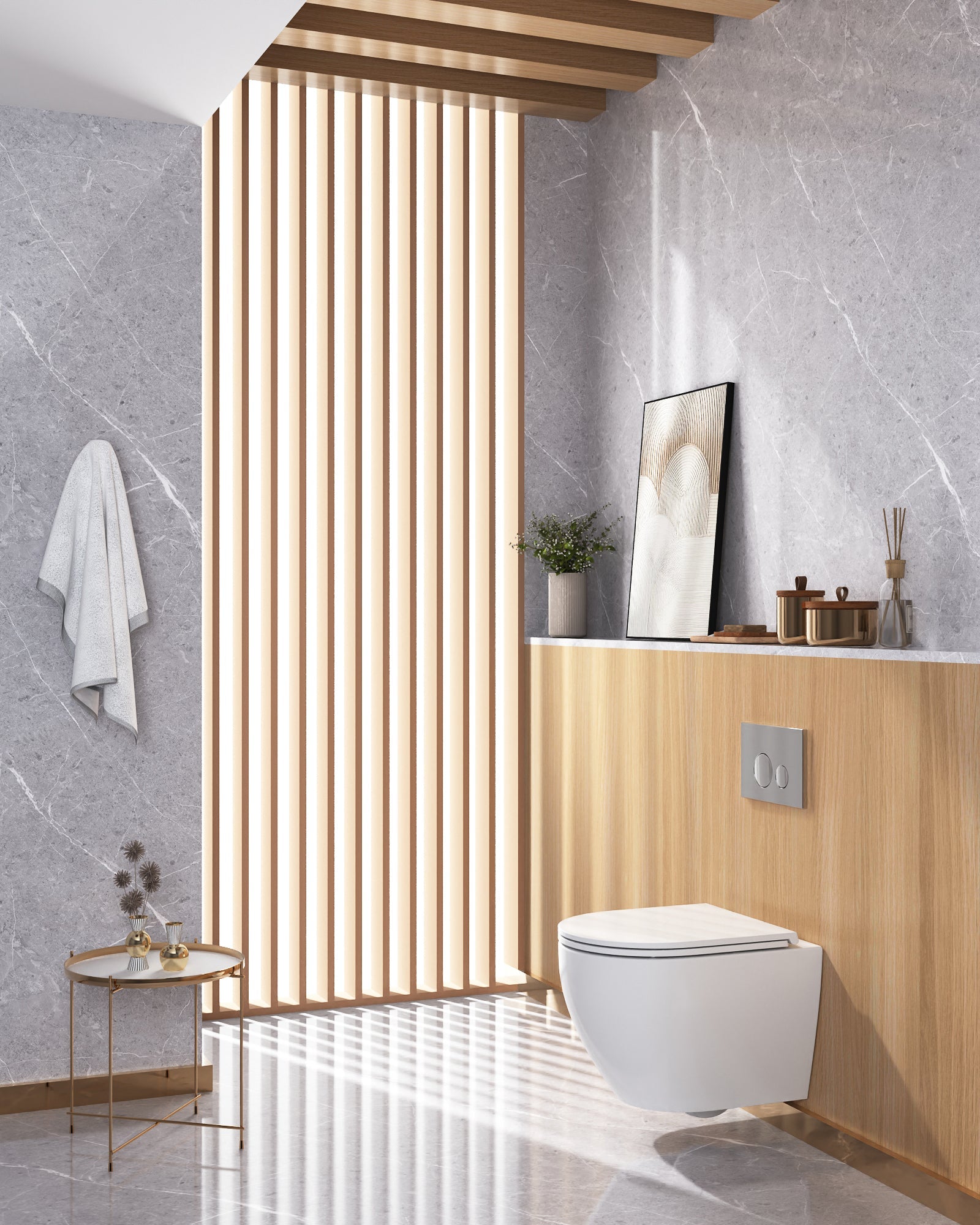

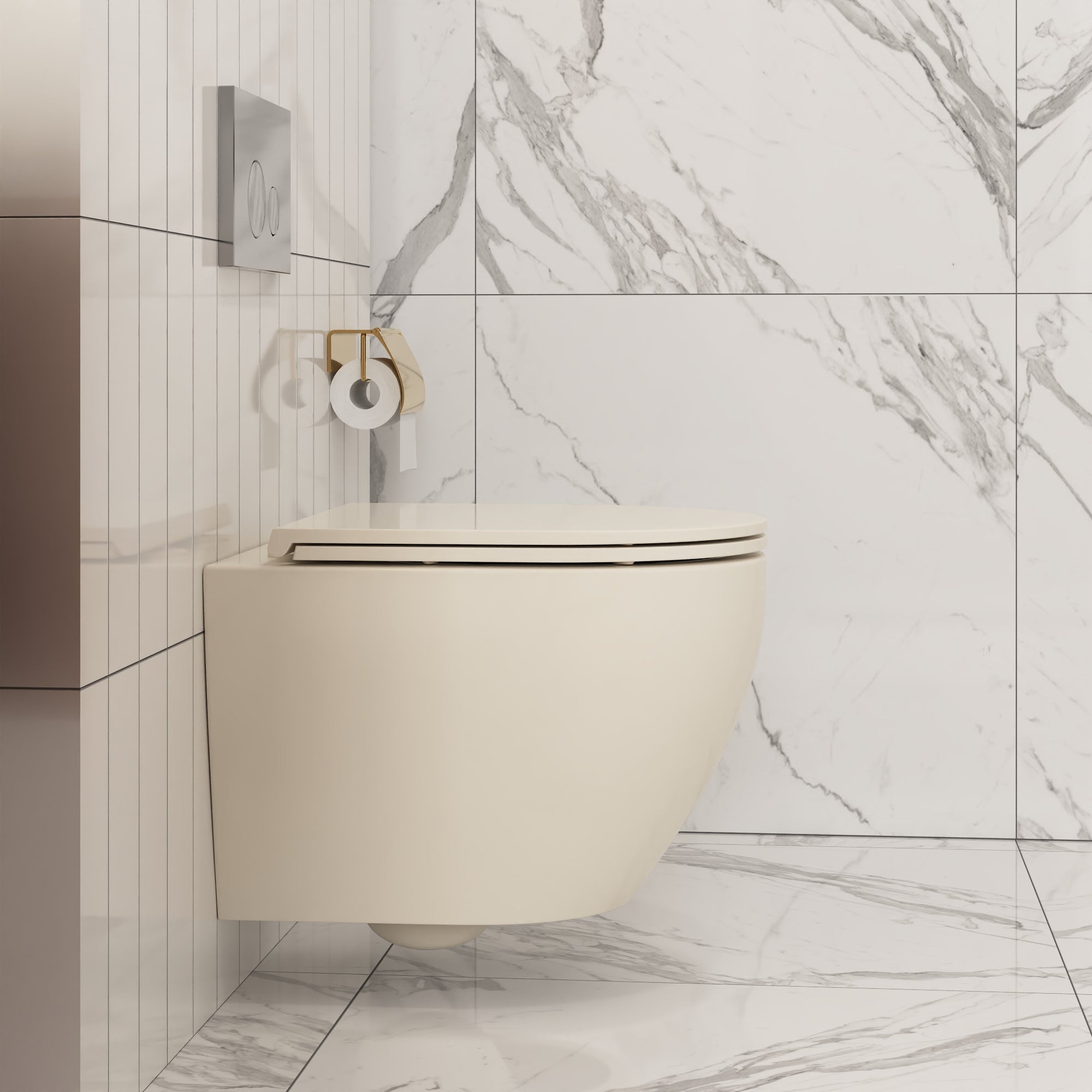

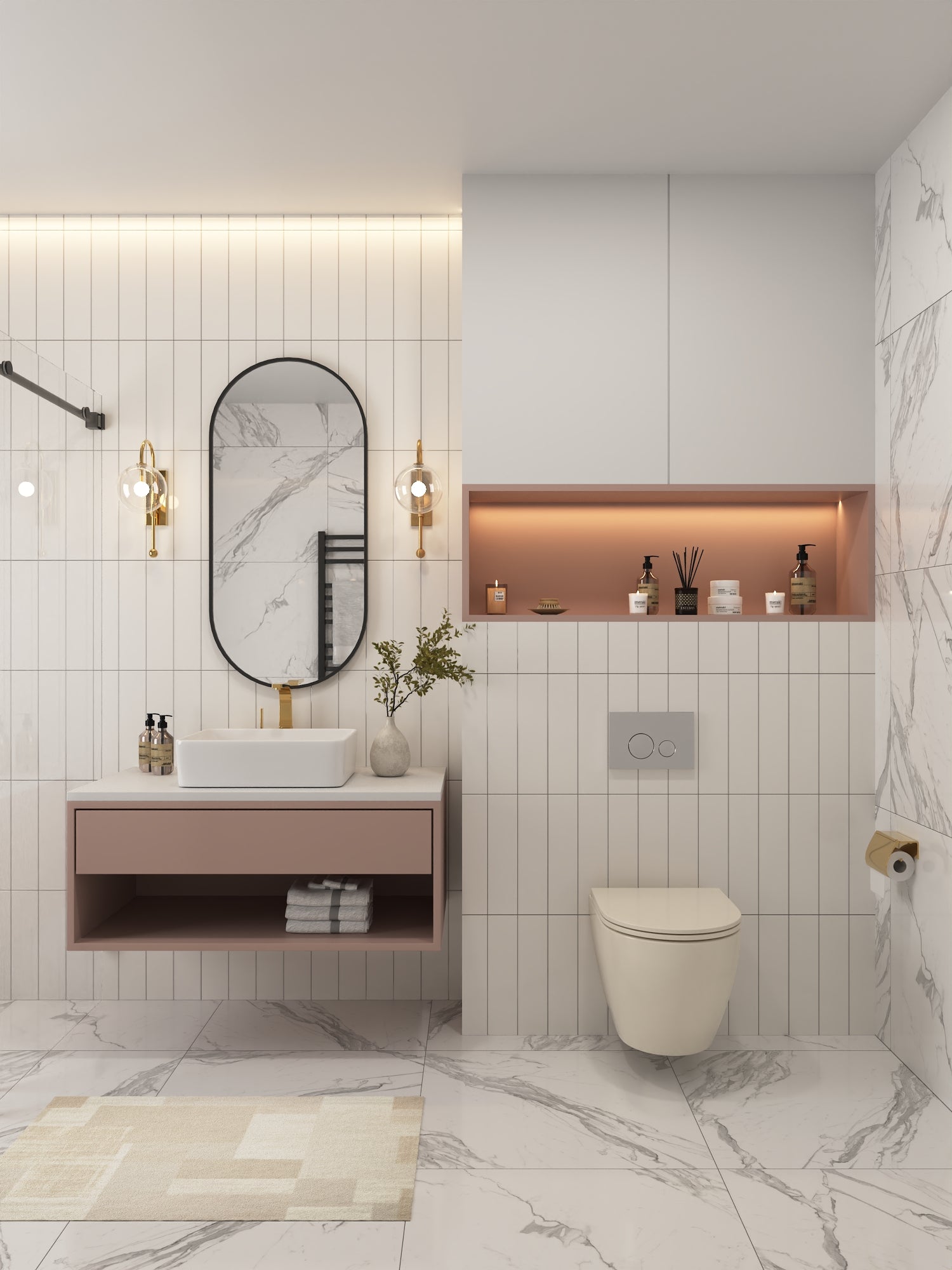

Made from quality ceramic material, the fully skirted design wall-hung toilet contributes to a smooth and seamless surface that indicates the aesthetic style of a modern bathroom. The strong ceramic constructions can effectively prevent harboring bacteria and yet is easy to clean. Wall-mounted installation way can effectively save space for small bathrooms and meet the diverse needs for bathroom decoration.
Features
• Excellent flush effect that has been tested by the factory for times.
• Wall-hung installation way is convenient to clean the beneath area of the toilet.

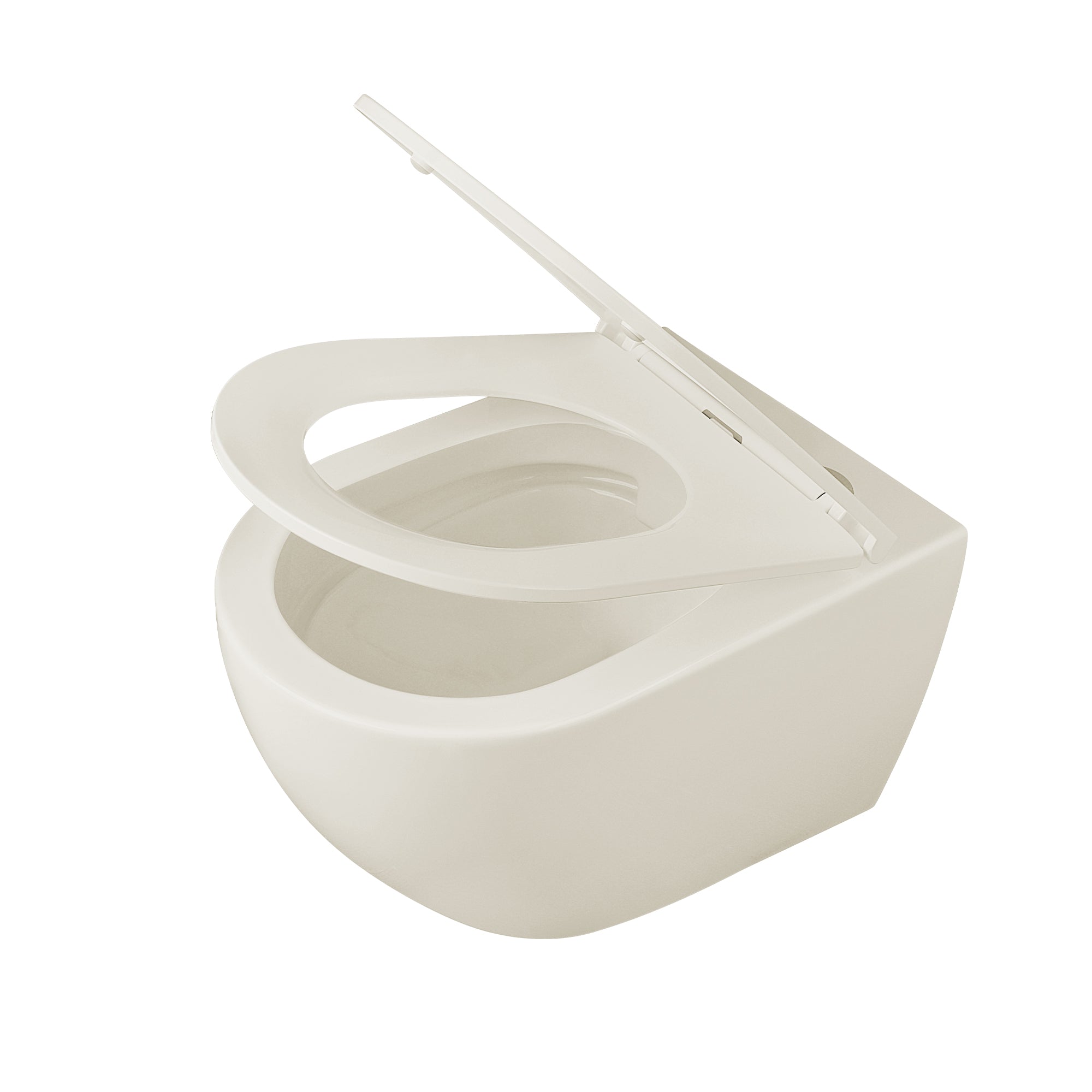

• One button quick-release seat can be unlatched from the toilet effortlessly.
• Siphon flushing design for super quiet and powerful flush without clogs and leaks.
• The toilet tank carrier system(sold separately) installation is required before the installation of the wall-hung toilet.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

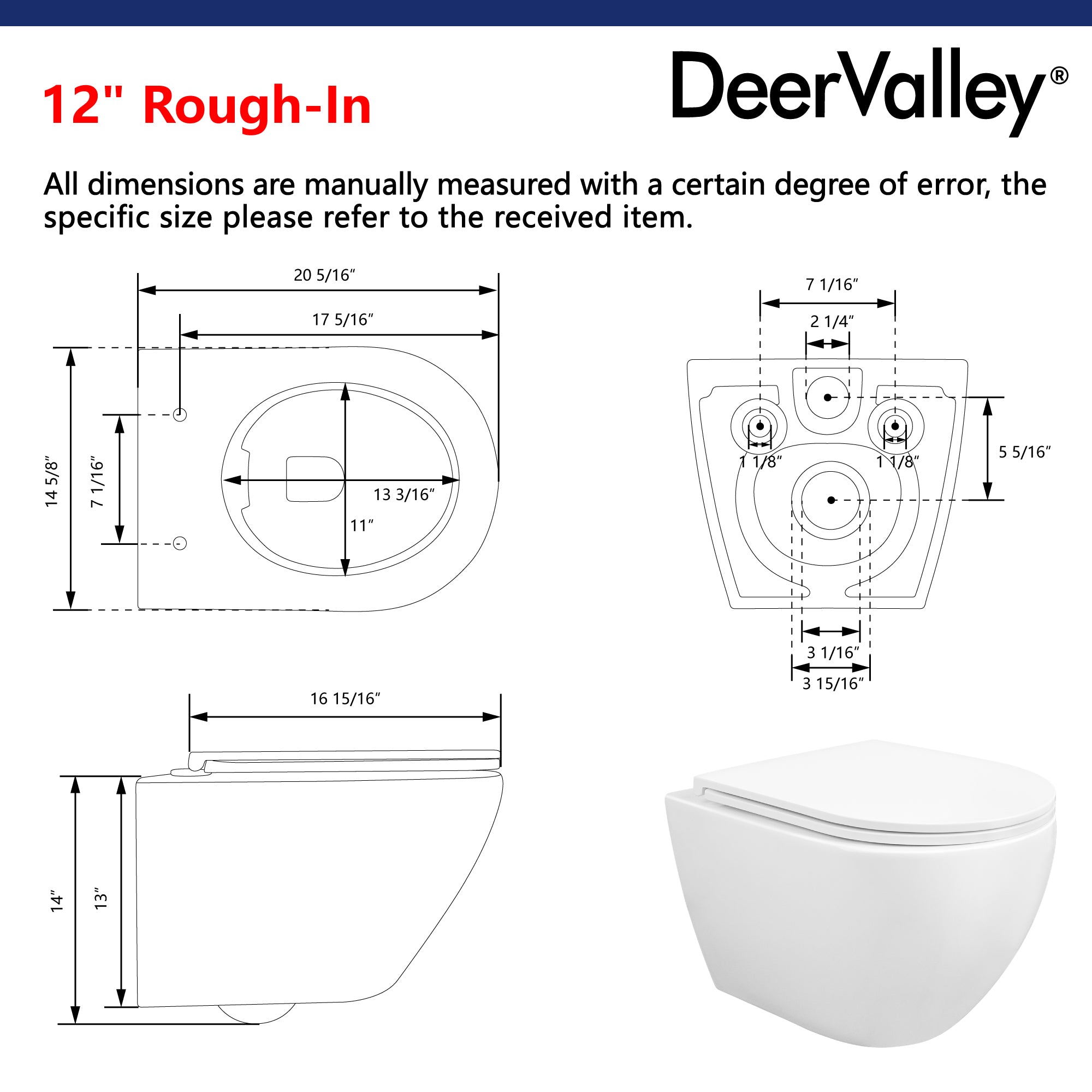

Weights & Dimensions
?
SKU:?
DV-1F0070/DV-1F0070B/DV-1F0070BN
DV-1F0070-CF/DV-1F0070B-CF/DV-1F0070BN-CF
With Concealed In-Wall Toilet Tank:?
No
Yes
Overall:?
19.88″L X 14.37″W X 13.98″H
19.88″L X 14.37″W X 13.98″H
Rough In Size:?
/
/
Toilet Seat Height – Top to Bottom:?
15.75″
15.75″
Bowl Height – Top to Bottom:?
13.98″
13.98″
Tank:?
/
/
Tank Lid:?
/
/
Bolts Spread Distance:?
7.09″
7.09″
Distance from the Seat Installation Hole to the Tank:?
2.52″
2.52″
Distance from the Back of the Toilet to the Wall:?
0
0
Toilet Installation Hole Distance:?
0
0
Height from the Bottom of the Water Tank to the Ground:?
/
/
Distance Between the Center of Adapter and the Center of Trapway:?
/
/
Trapway Diameter(Inside):?
3.03″
3.03″
Toilet Seat:?
2.17/0.79 Back/Front” H X 14.57″W X 17.32″L
2.17/0.79 Back/Front” H X 14.57″W X 17.32″L
Toilet Seat Inside Ring:?
8.62″W X 11.18″L
8.62″W X 11.18″L
Bowl:?
13.19″L X 11.02″W X 13.98″H
13.19″L X 11.02″W X 13.98″H
Toilet Base Dimension:?
15.2″L X 10.43″W
15.2″L X 10.43″W
Overall Product Weight:?
73 lb.
73 lb.
Color:?

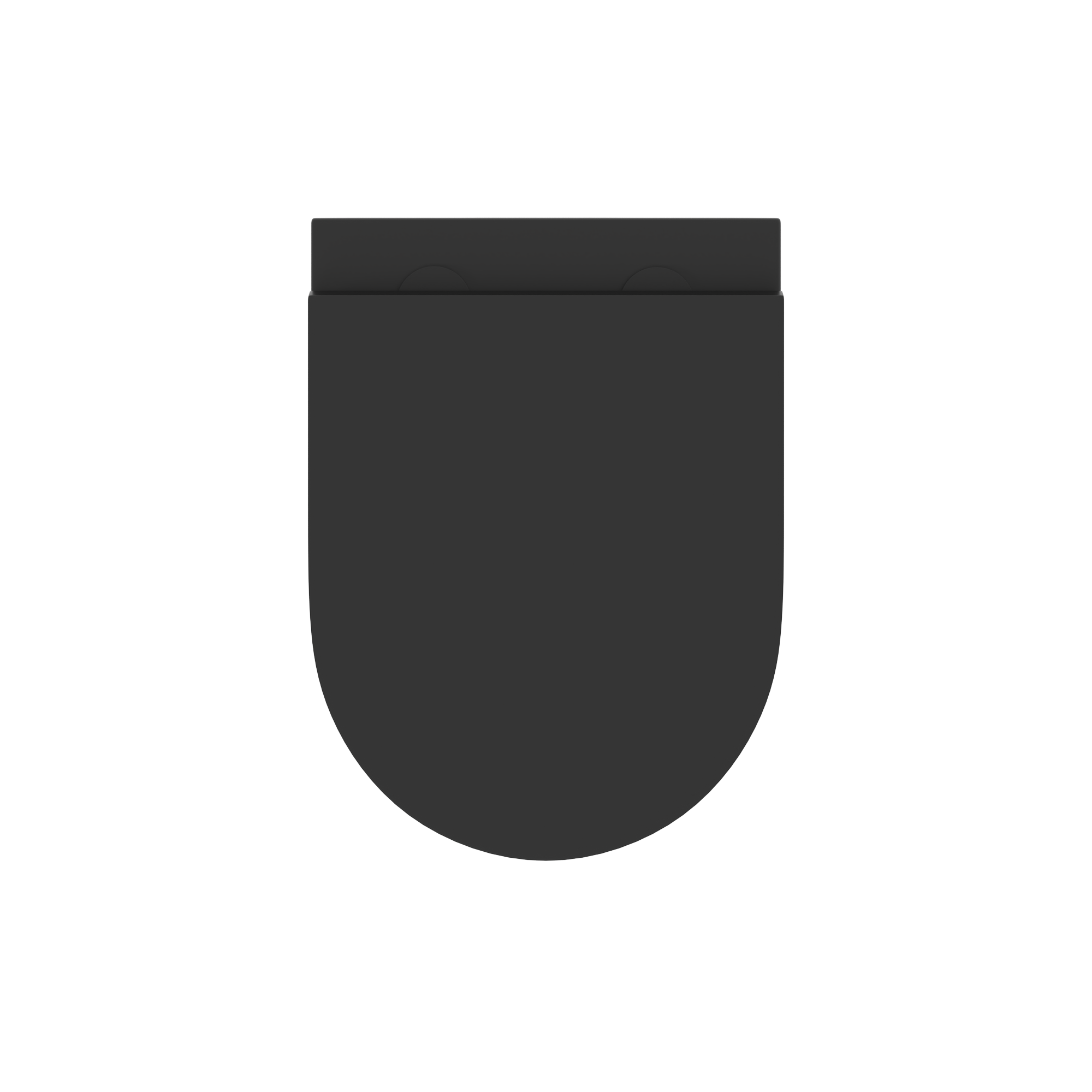

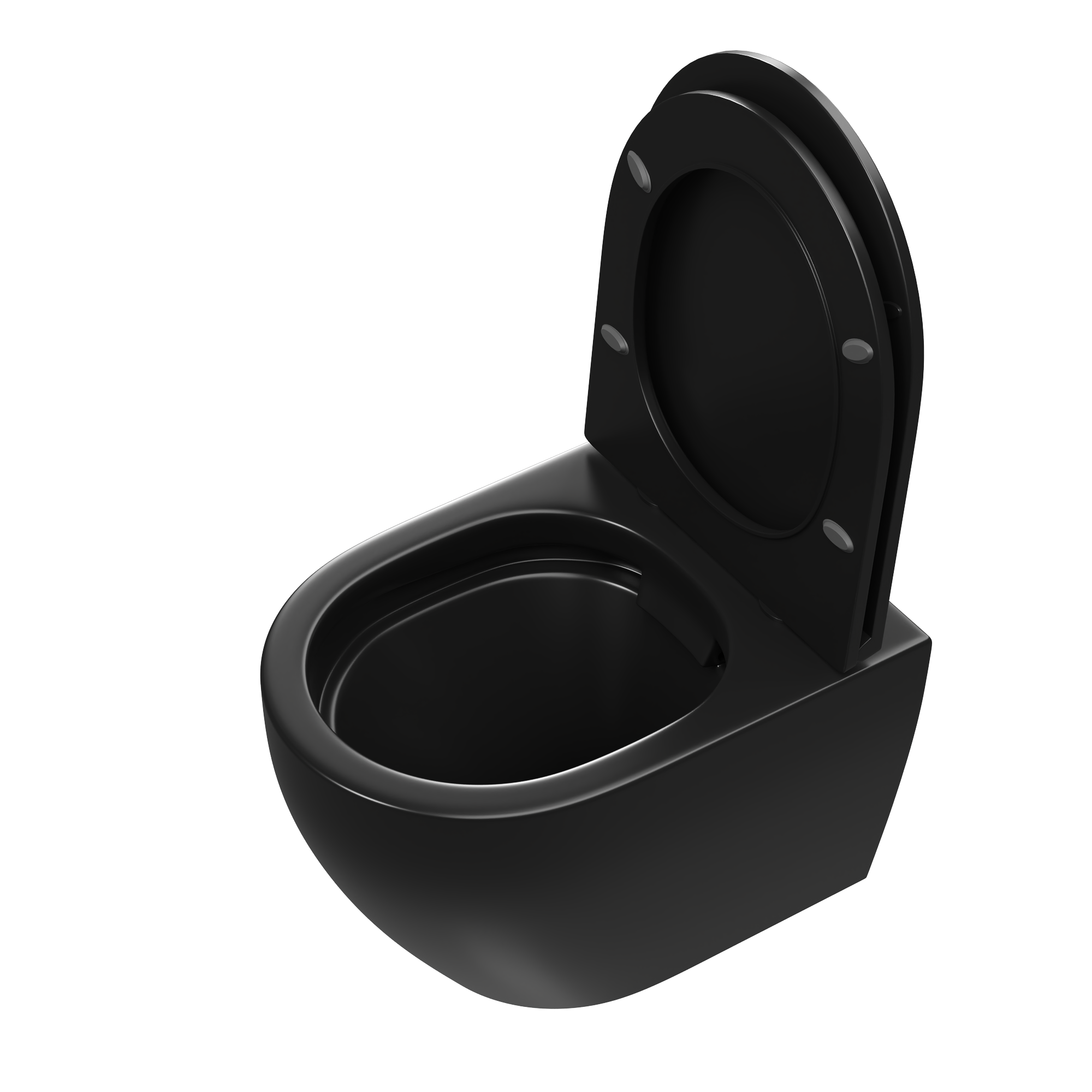

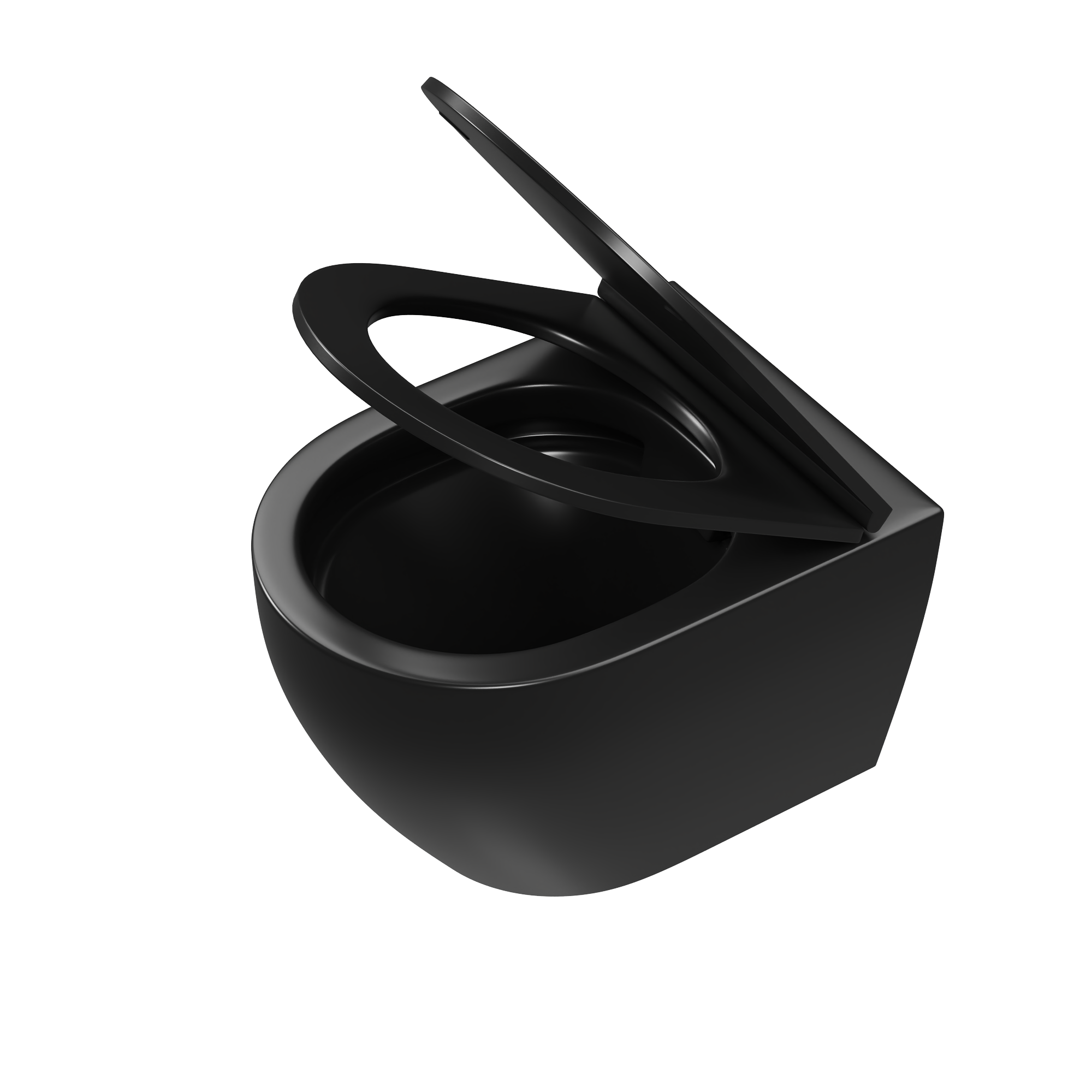

White/Black/Bone
White/Black/Bone
Flush Volume:?
1.1/1.6 GPF
1.1/1.6 GPF
What is included in the package?
• Installation instruction, Toilet lid installation package, wall anchor screw.
Compatible Accessories
•
In-Wall Toilet Tank: DV-1C0087
•
Toilet Installation Kit: DV-F0069P41
•
Toilet Seat for DV-1F0070: DV-F0070S11
• Toilet Seat for DV-1F0070B: DV-F0070BS11
• Toilet Seat for DV-1F0070BN: DV-F0070BNS11
• Toilet Seat Installation Kit for DV-1F0070: DV-F0070S01
• Toilet Seat Installation Kit for DV-1F0070B: DV-F0070BS01
• Toilet Seat Installation Kit for DV-1F0070BN: DV-F0070BNS01
