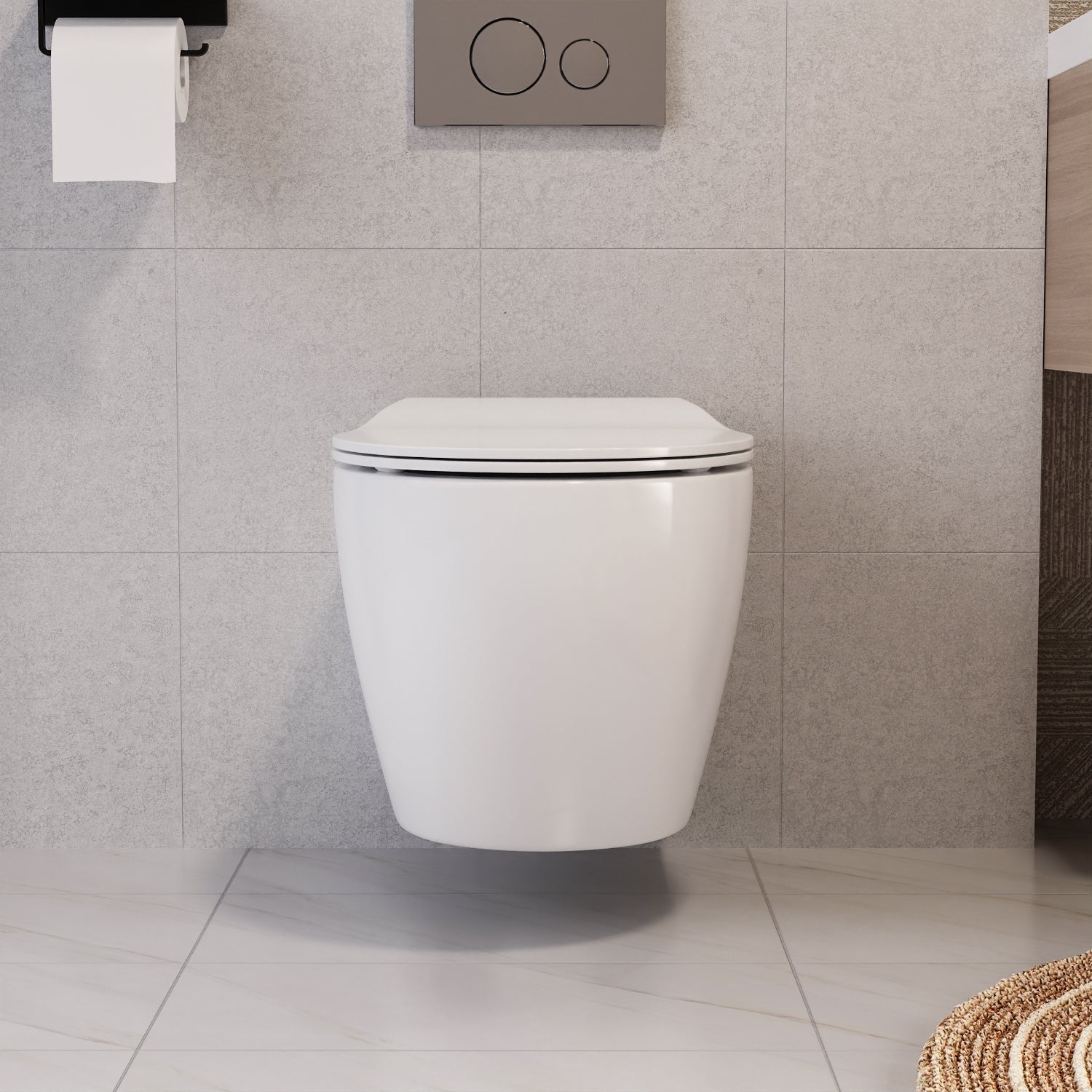

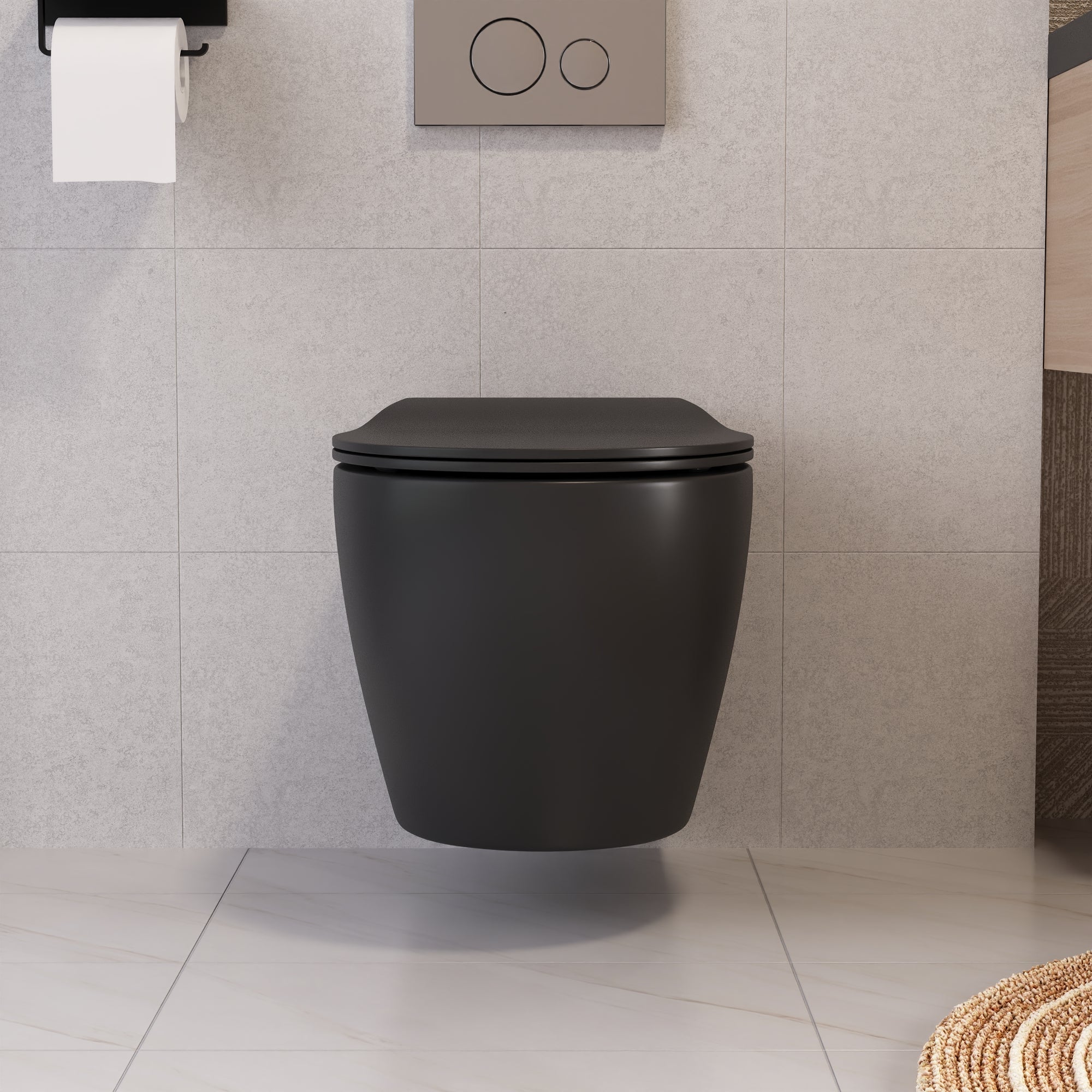

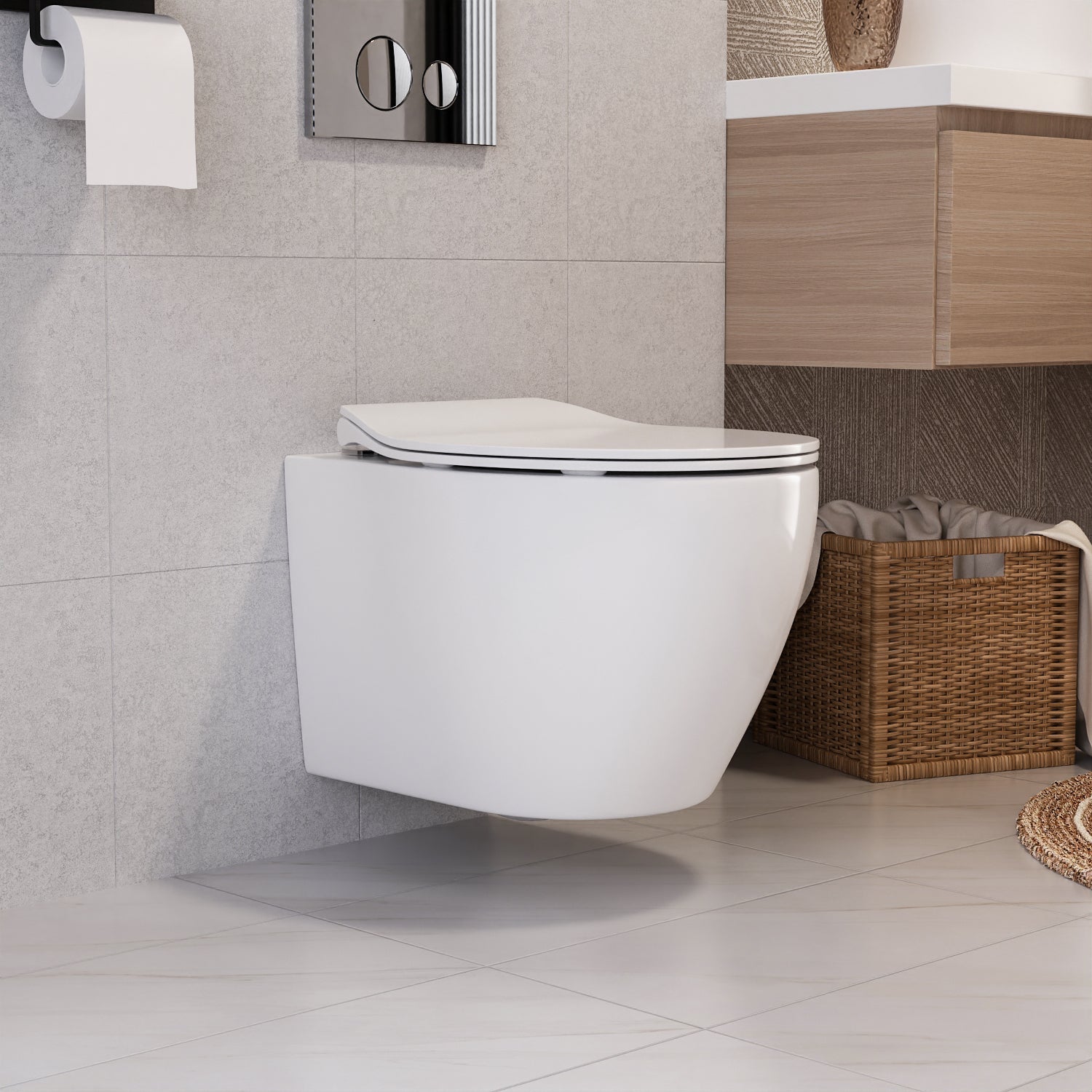

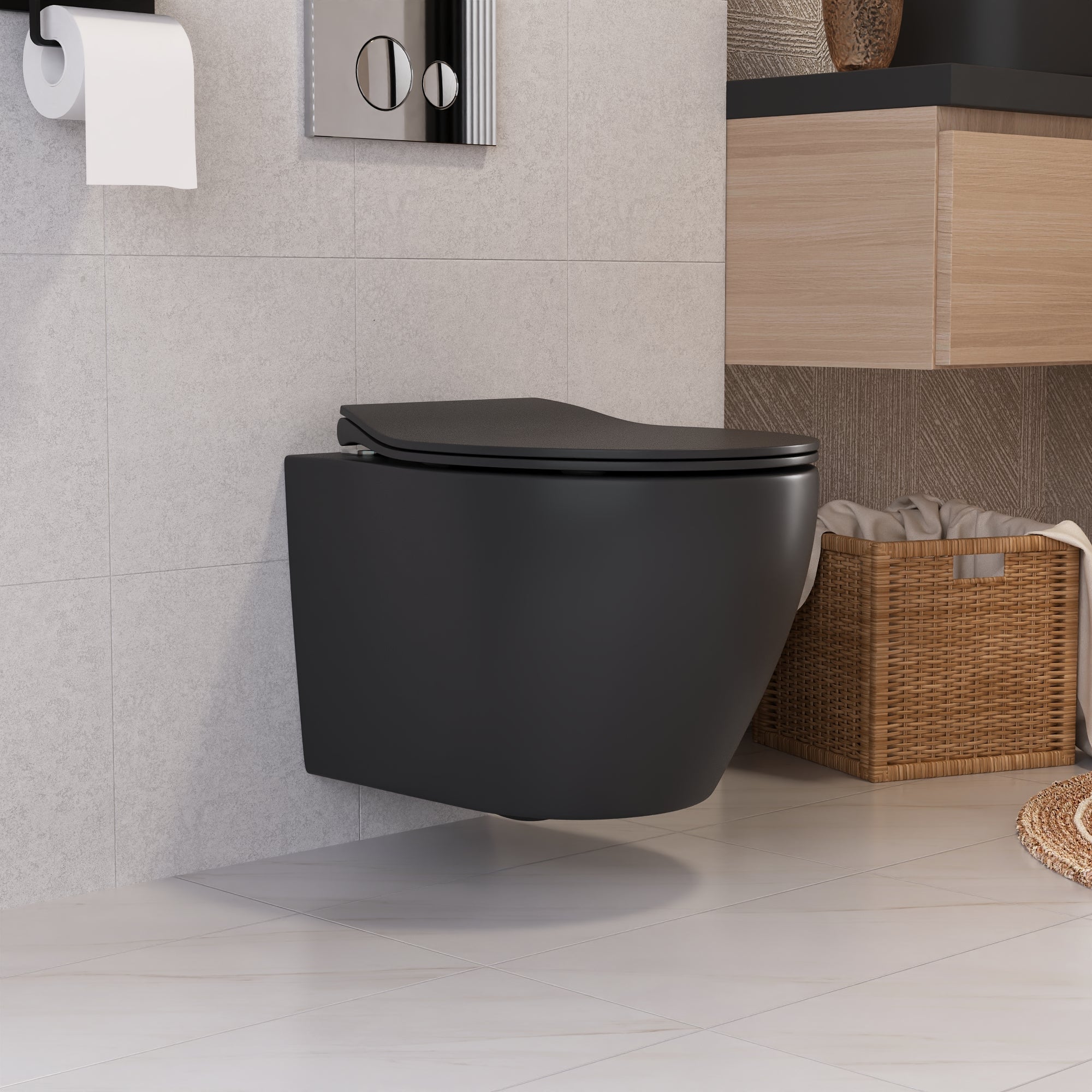

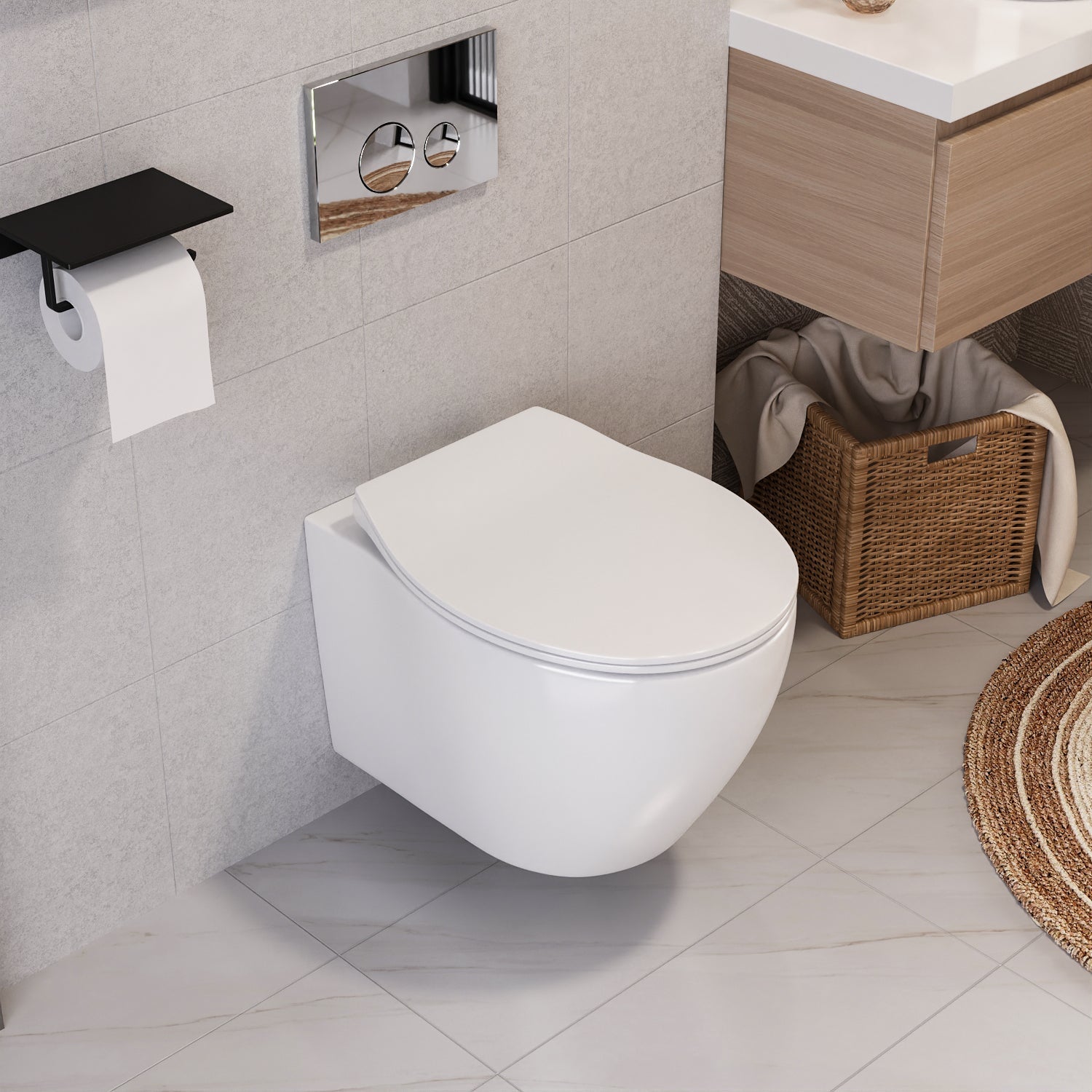

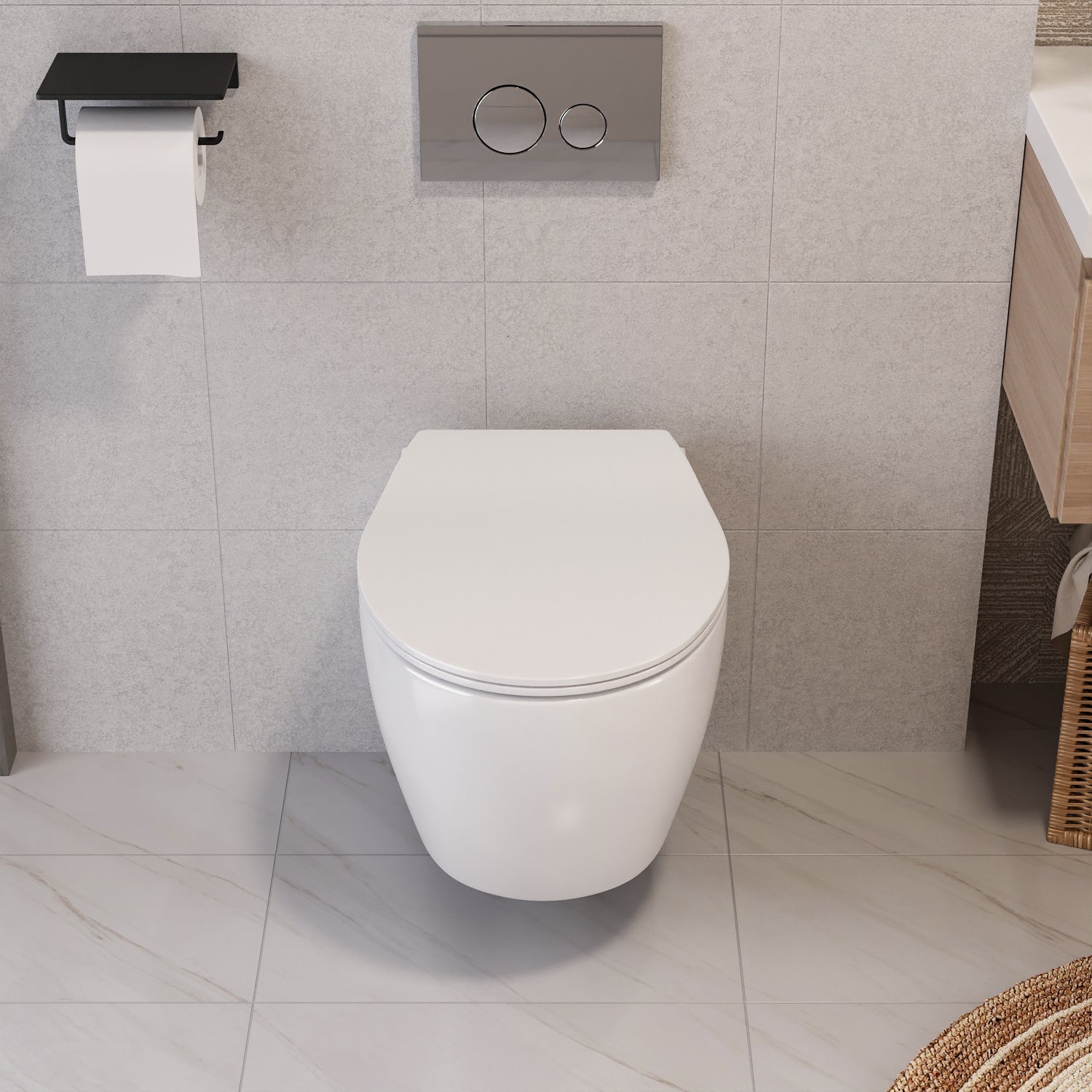

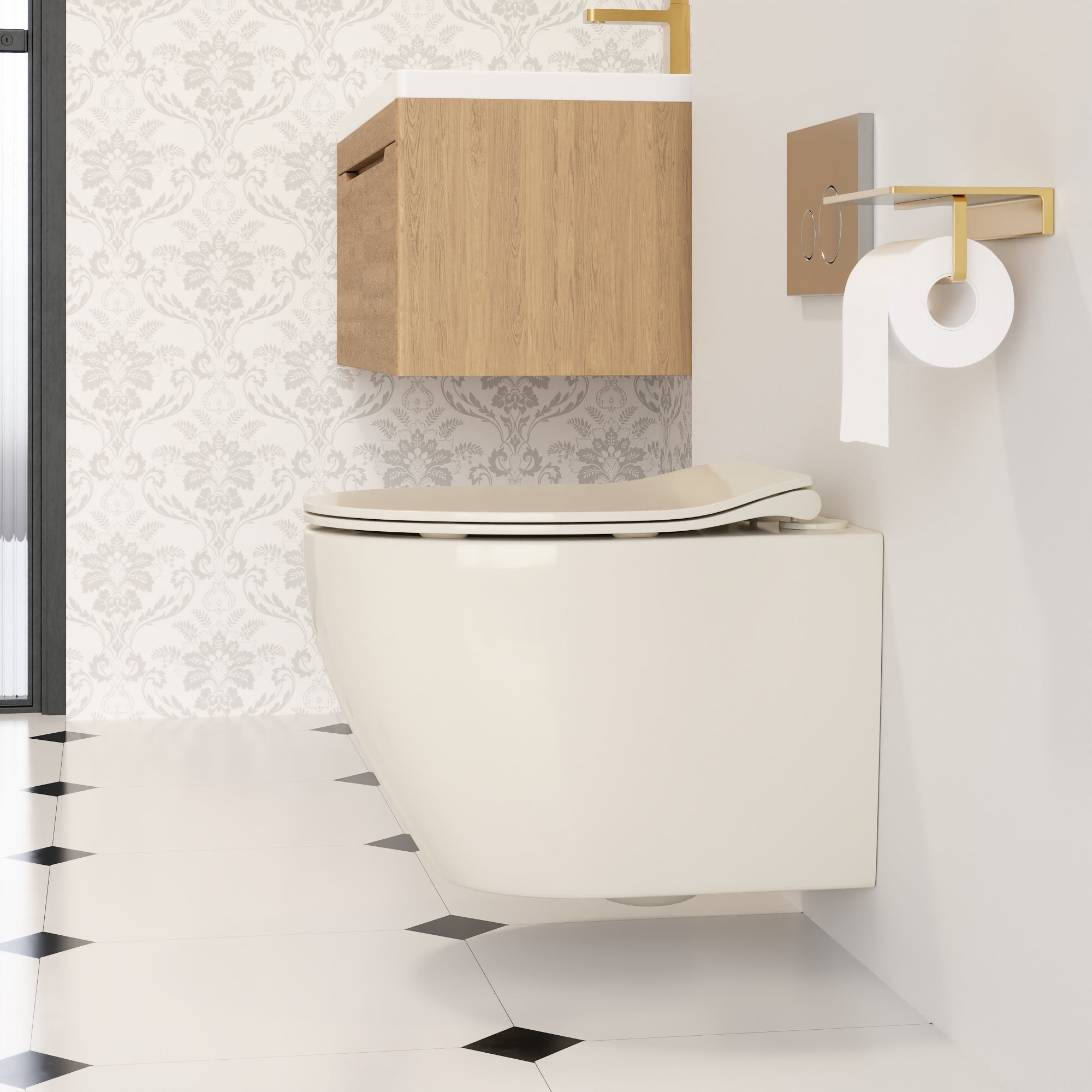

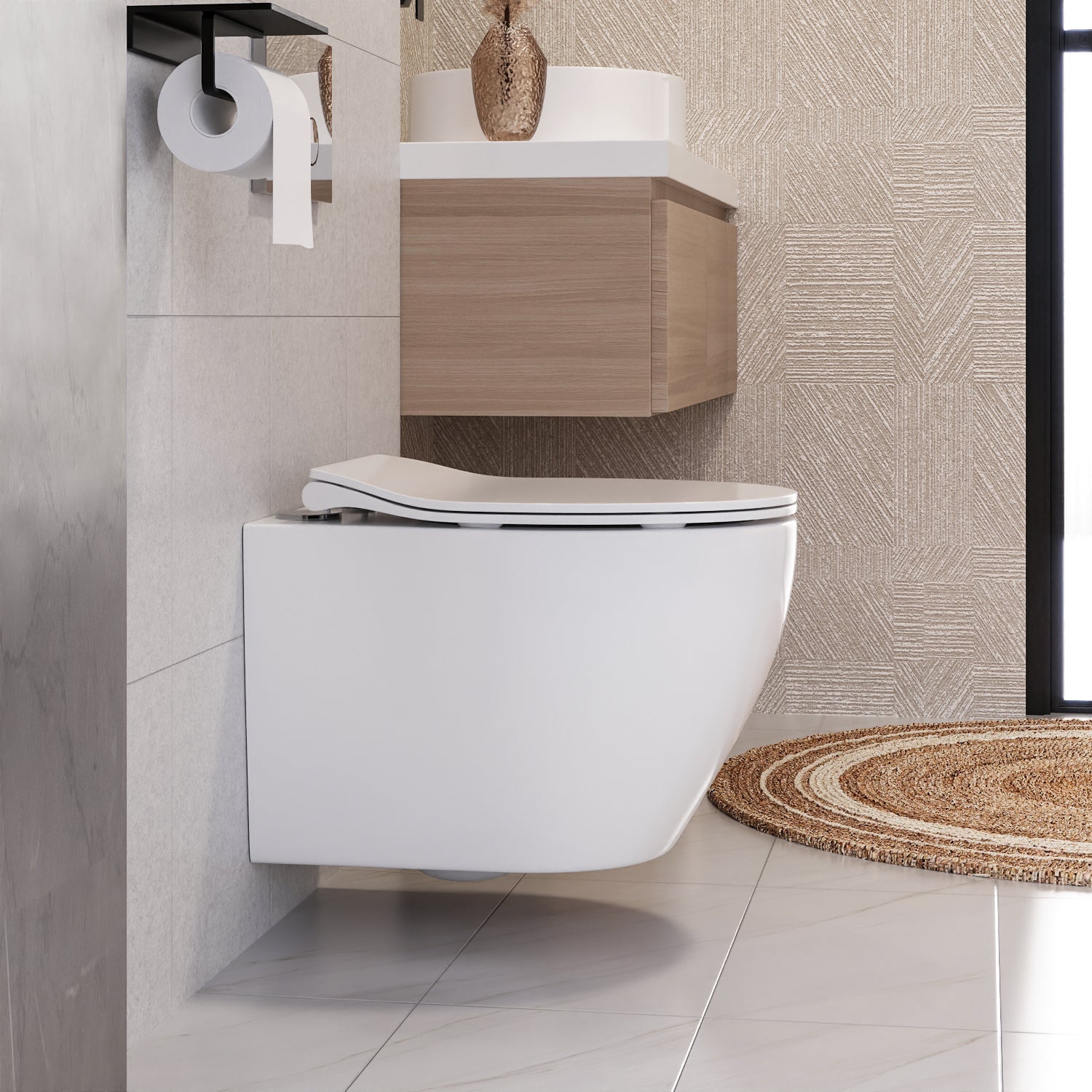

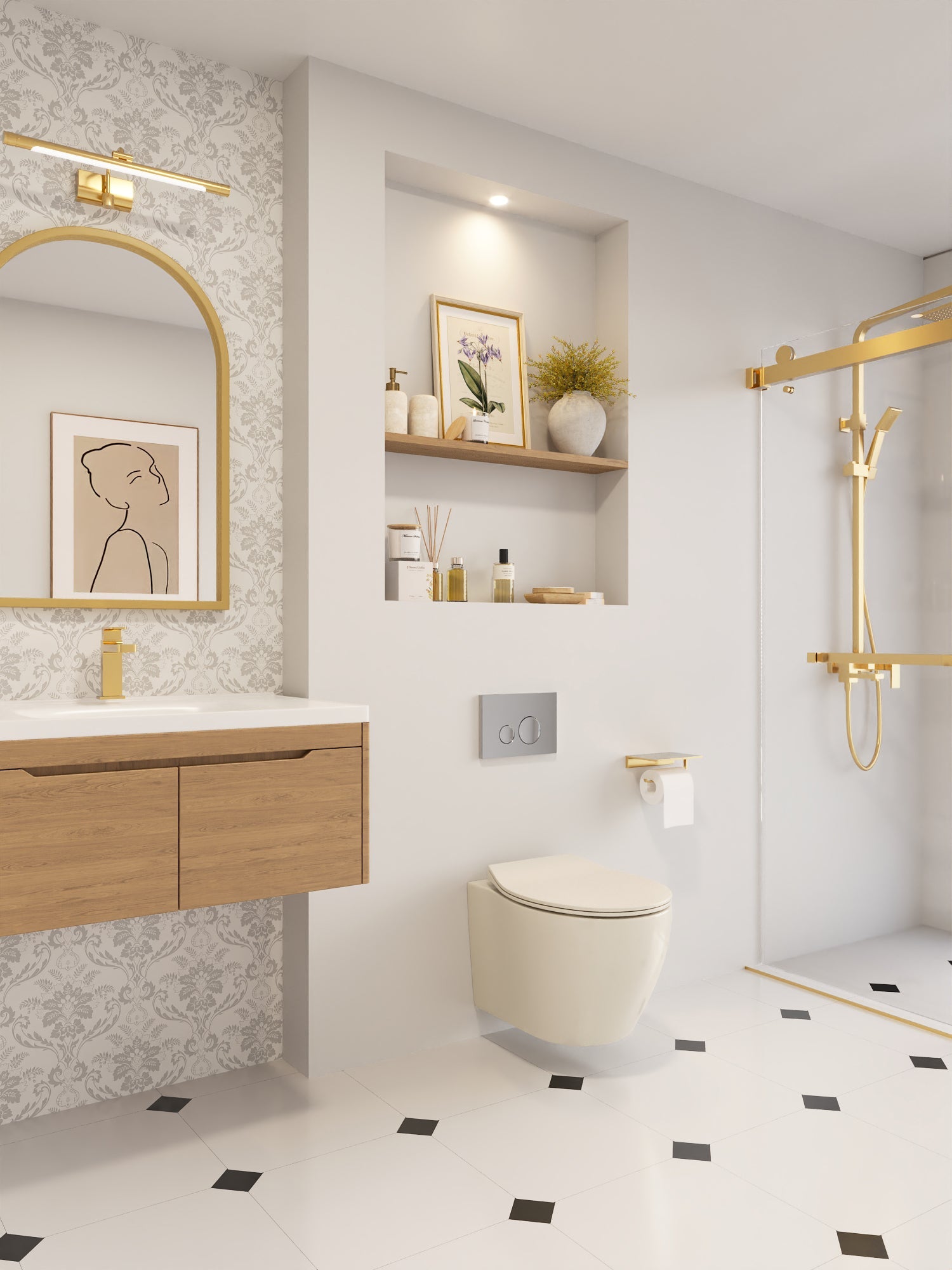

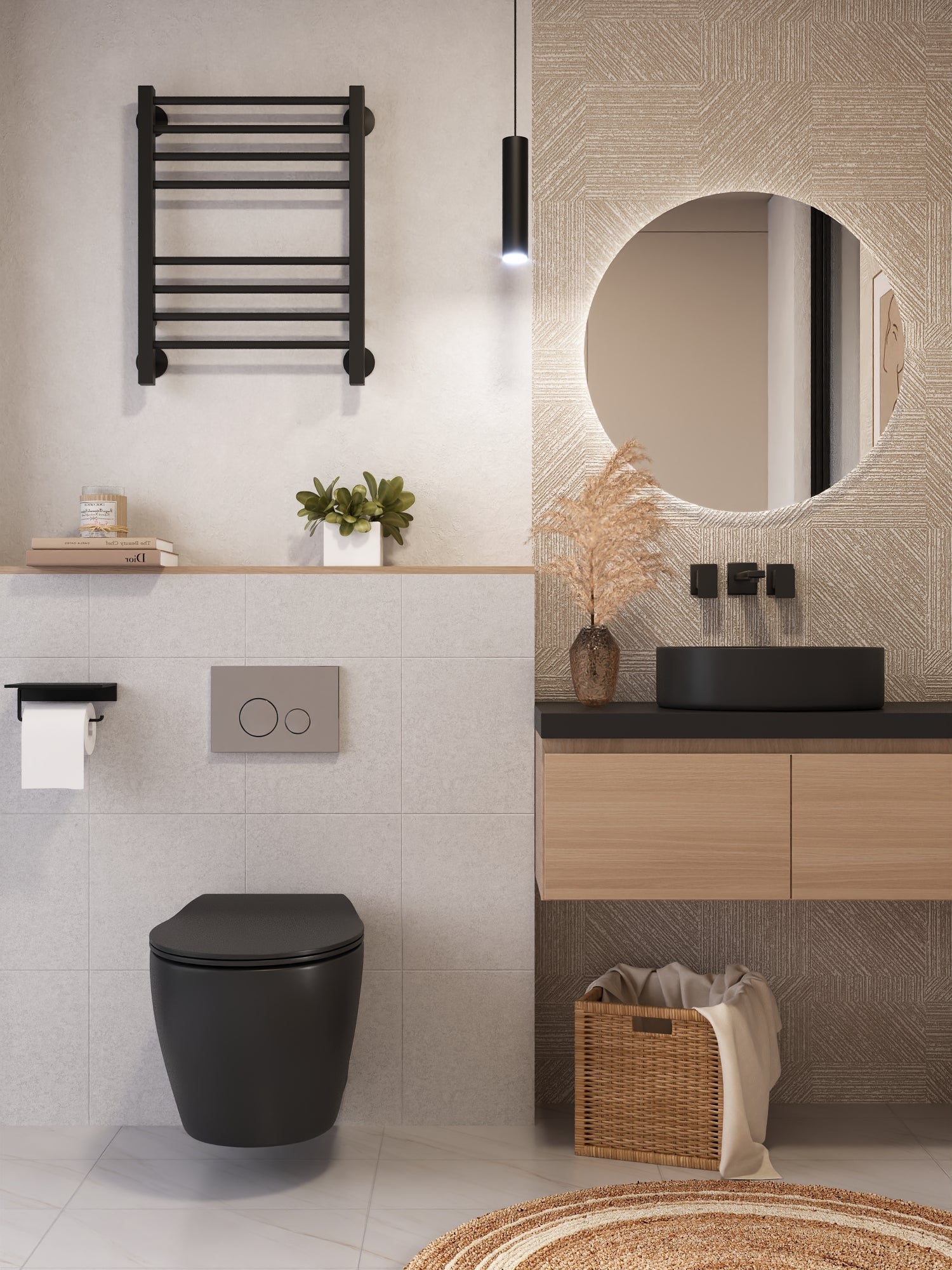

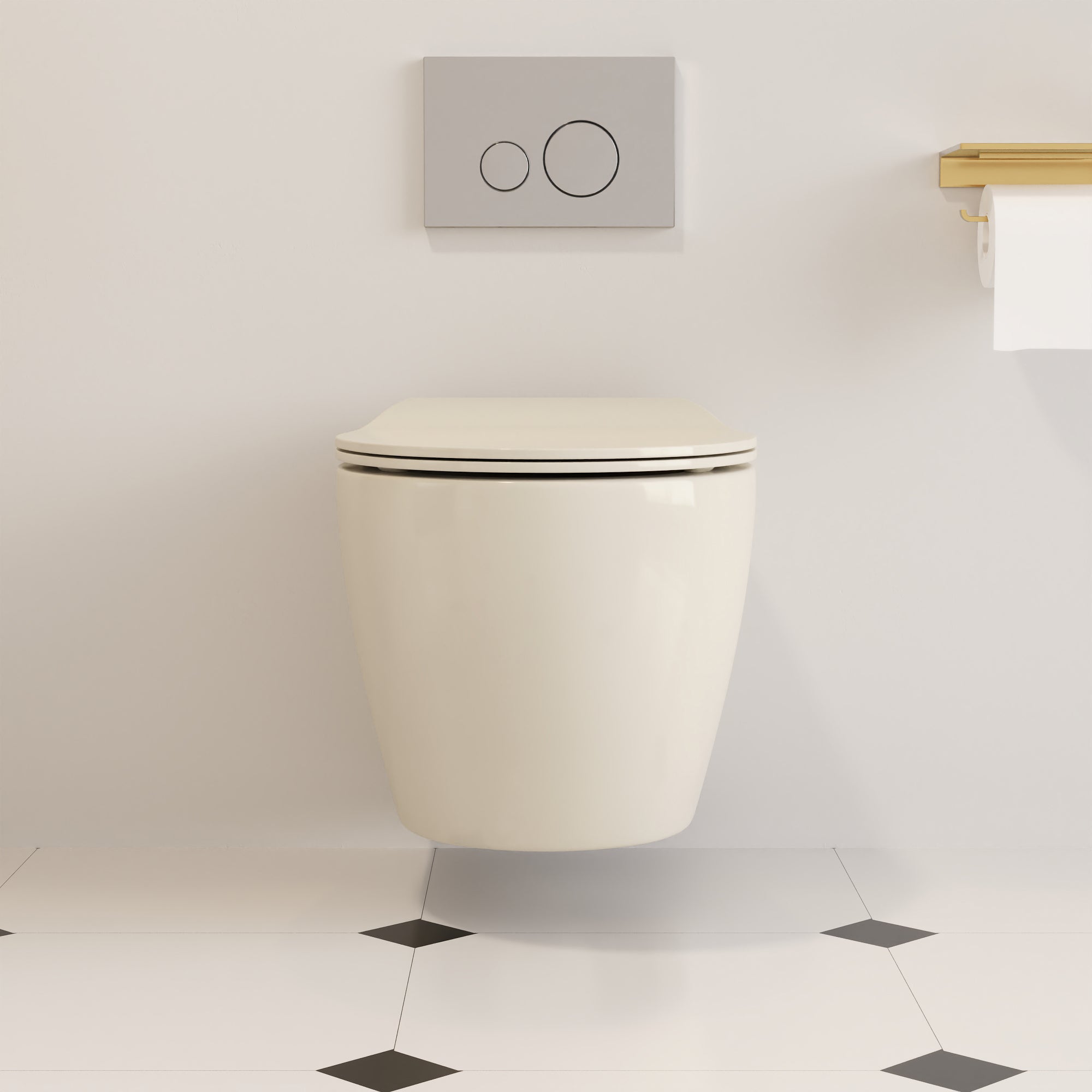

The wall-hung toilet which is manufactured from premium ceramic material is designed in a contemporary and stylish style. The full-glazed seamless ceramic surface looks great yet can effectively prevent harboring bacteria. Equipped with the slow-close toilet seat will effectively prevent the collision between the toilet seat and bowl and can provide you with a quieter and more peaceful bathroom. Exclusive wall-hung design contributes more space to your bathroom compared to the standard toilet and makes the area beneath the toilet easier to clean at the same time. It is a wise choice for your bathroom decoration.
Features
• Small space toilet design for more space saving. The toilet tank carrier system(sold separately) installation is required before the installation of the wall-hung toilet.
• Siphon-flushing: Fully glazed flush. Super-quiet and powerful flush with no clogs and no leaks.

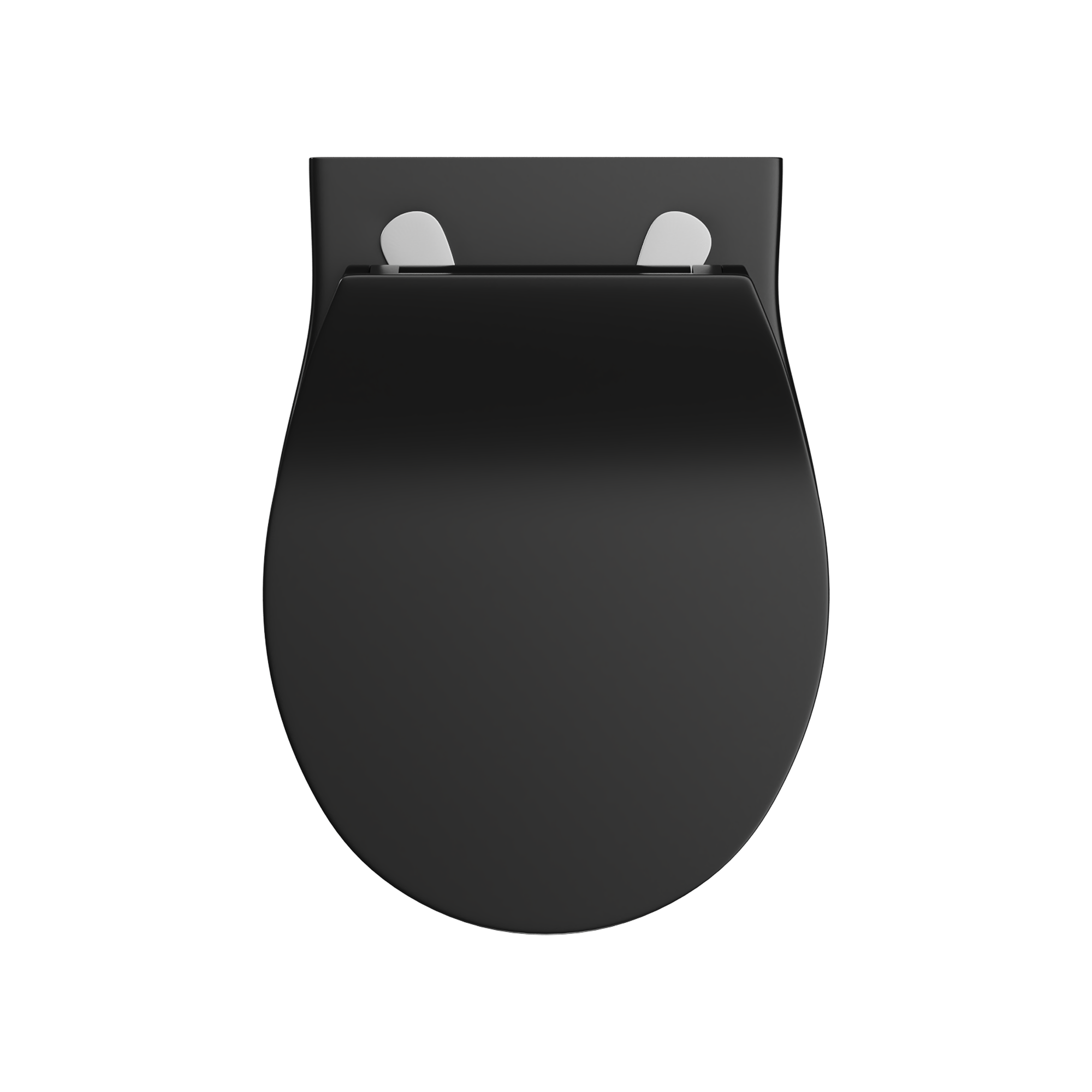

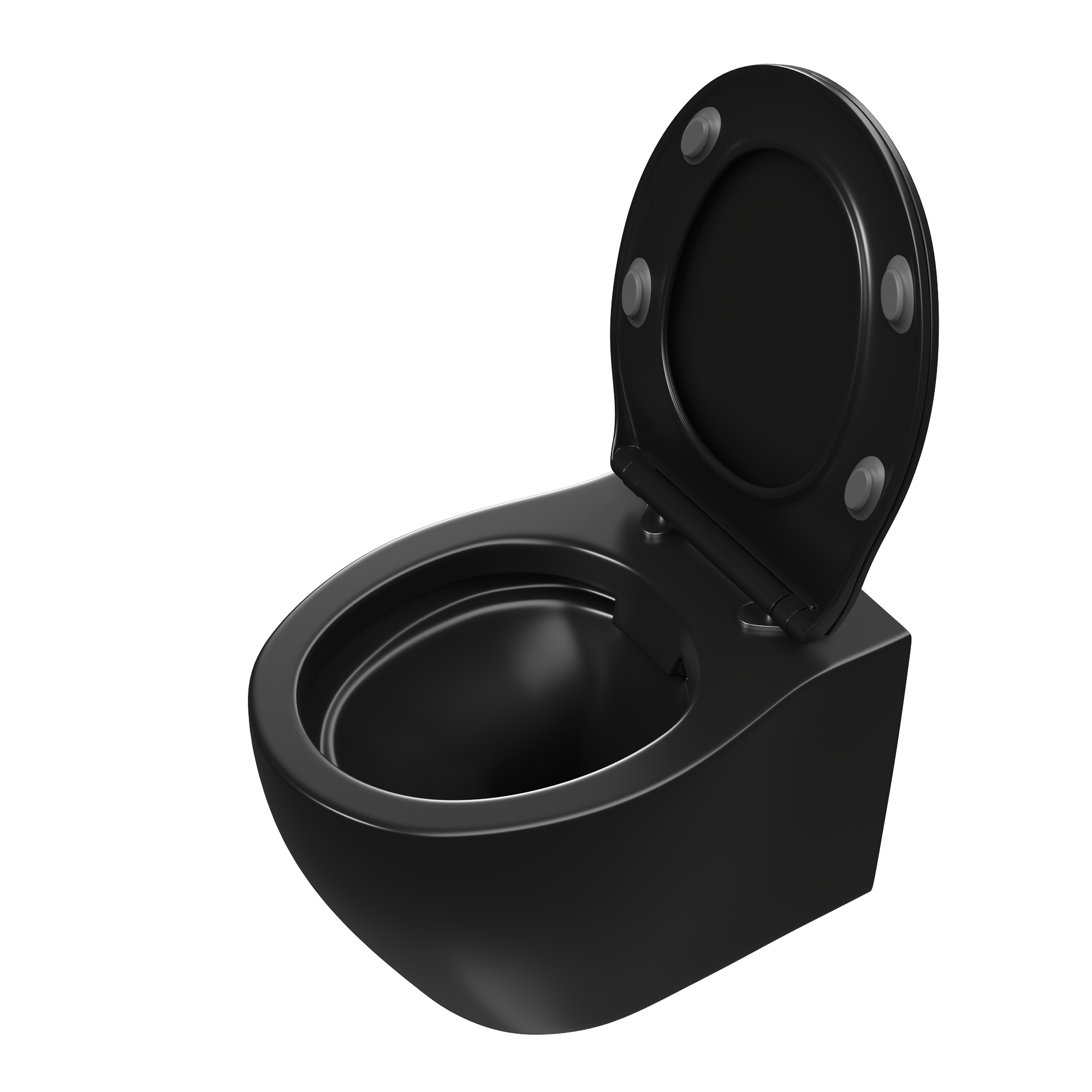

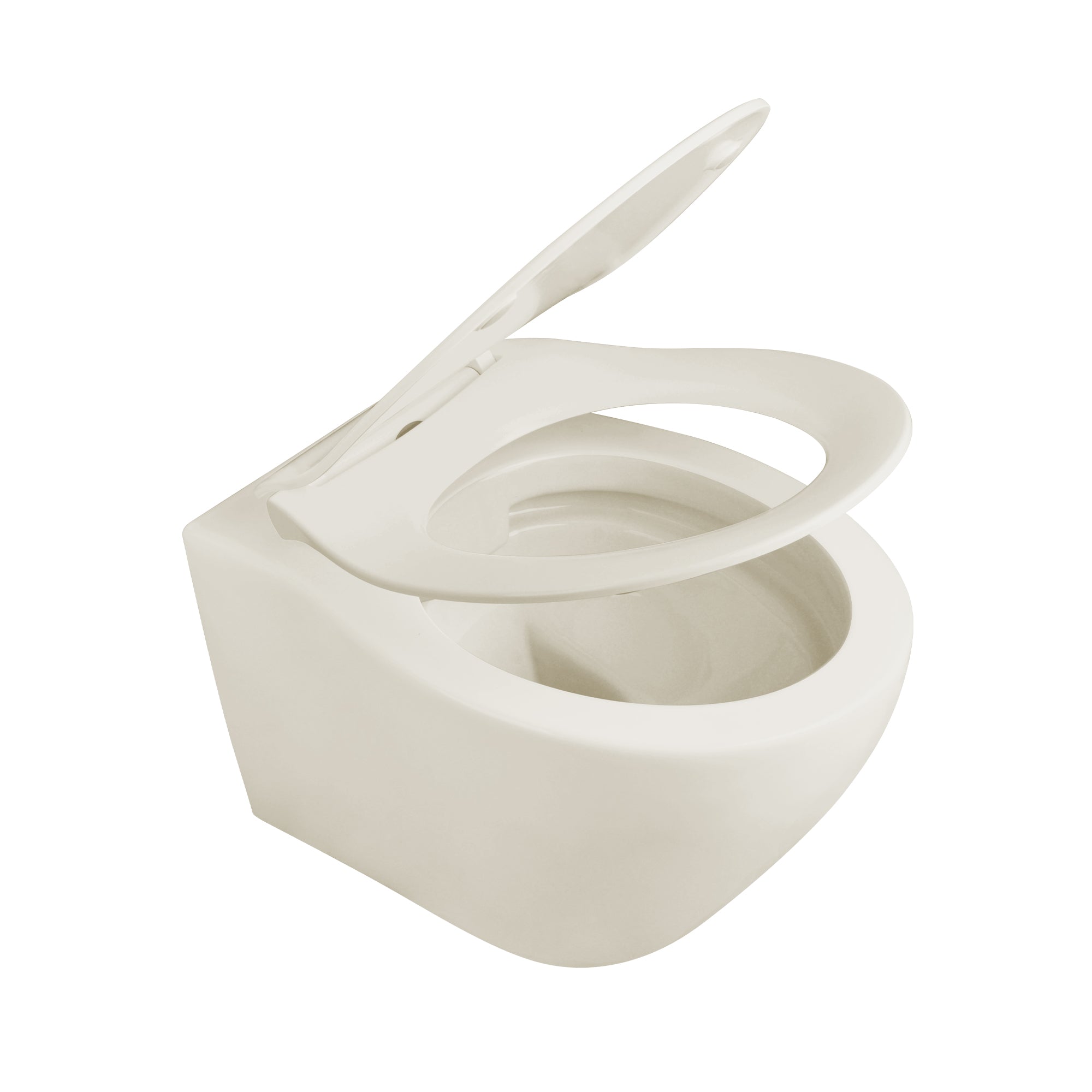

• The quick-release seat can be unlatched from the toilet.
• 100% factory flush tested, American standard wall-hung toilet.
• The required toilet tank carrier system with the straight pipe and the connecting pipe is sold separately.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

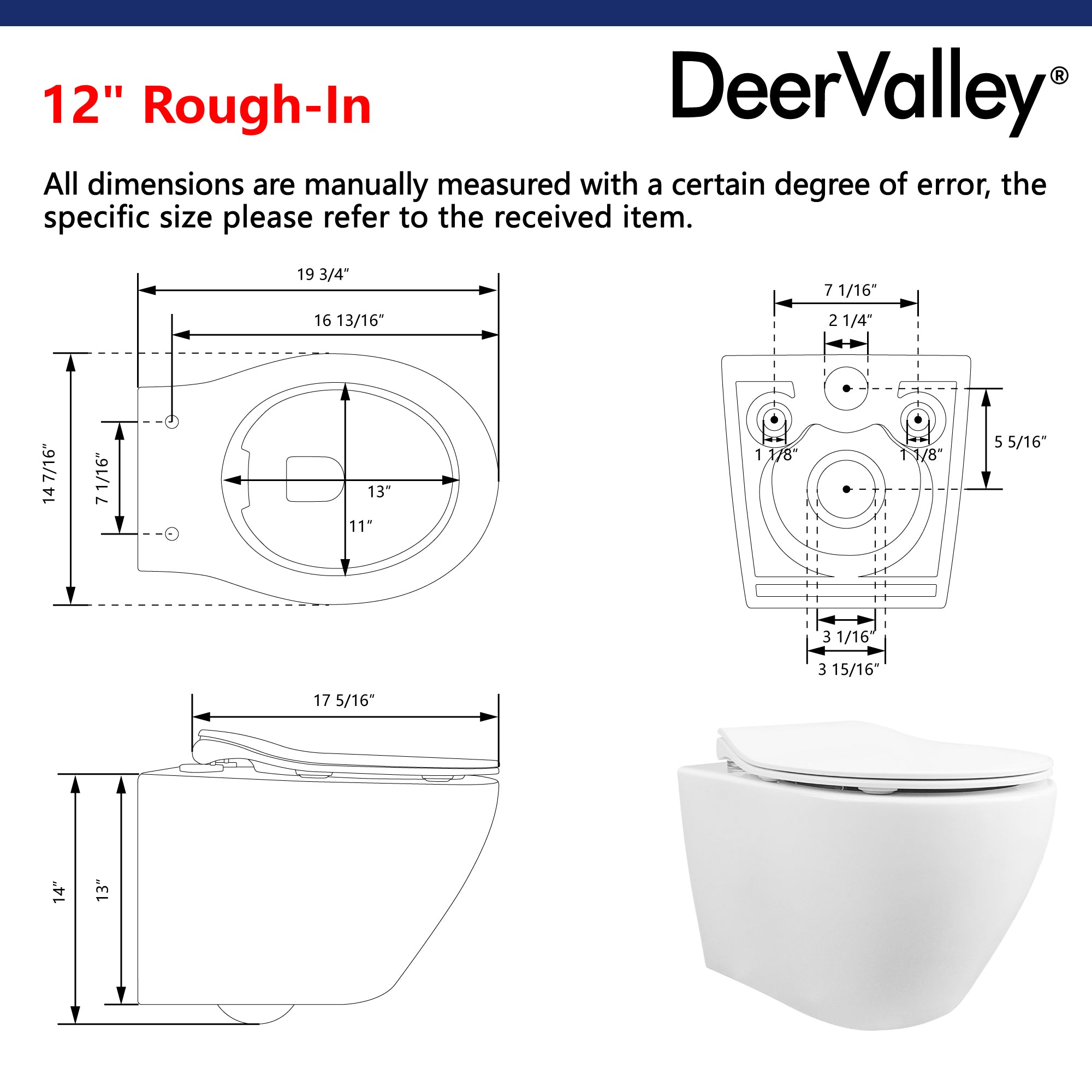

Weights & Dimensions
SKU:?
DV-1F0069/DV-1F0069B/DV-1F0069BN
DV-1F0069-CF/DV-1F0069B-CF/DV-1F0069BN-CF
With Concealed In-Wall Toilet Tank:?
No
Yes
Overall:?
20.28″L X 14.76″W X 13.98″H
20.28″L X 14.76″W X 13.98″H
Rough In Size:?
/
/
Toilet Seat Height – Top to Bottom:?
14.41″
14.41″
Bowl Height – Top to Bottom:?
13.98″
13.98″
Tank:?
/
/
Tank Lid:?
/
/
Bolts Spread Distance:?
7.09″
7.09″
Distance from the Seat Installation Hole to the Tank:?
2.52″
2.52″
Distance from the Back of the Toilet to the Wall:?
0
0
Toilet Installation Hole Distance:?
0
0
Height from the Bottom of the Water Tank to the Ground:?
/
/
Distance Between the Center of Adapter and the Center of Trapway:?
/
/
Trapway Diameter(Inside):?
2.91″
2.91″
Toilet Seat:?
1.22/1.02 Back/Front” H X 14.09″W X 16.81″L
1.22/1.02 Back/Front” H X 14.09″W X 16.81″L
Toilet Seat Inside Ring:?
9.25″W X 11.97″L
9.25″W X 11.97″L
Bowl:?
12.99″L X 11.02″W X 13.98″H
12.99″L X 11.02″W X 13.98″H
Toilet Base Dimension:?
14.17″L X 9.84″W
14.17″L X 9.84″W
Overall Product Weight:?
73 lb.
73 lb.
Color:?
White/Black/Bone
White/Black/Bone
Flush Volume:?
1.1/1.6 GPF
1.1/1.6 GPF
What is included in the package?
• Installation instruction, Toilet lid installation package, wall anchor screw
Compatible? Accessories
• In-Wall Toilet Tank: DV-1C0087
• Toilet Installation Kit: DV-F0069P41
• Toilet Seat for DV-1F0069: DV-F0069S11
• Toilet Seat for DV-1F0069B: DV-F0069BS11
• Toilet Seat for DV-1F0069BN: DV-F0069BNS11
• Toilet Seat Installation Kit for DV-1F0069: DV-F0069S01
• Toilet Seat Installation Kit for DV-1F0069B: DV-F0069BS01
• Toilet Seat Installation Kit for DV-1F0069BN: DV-F0069BNS01
