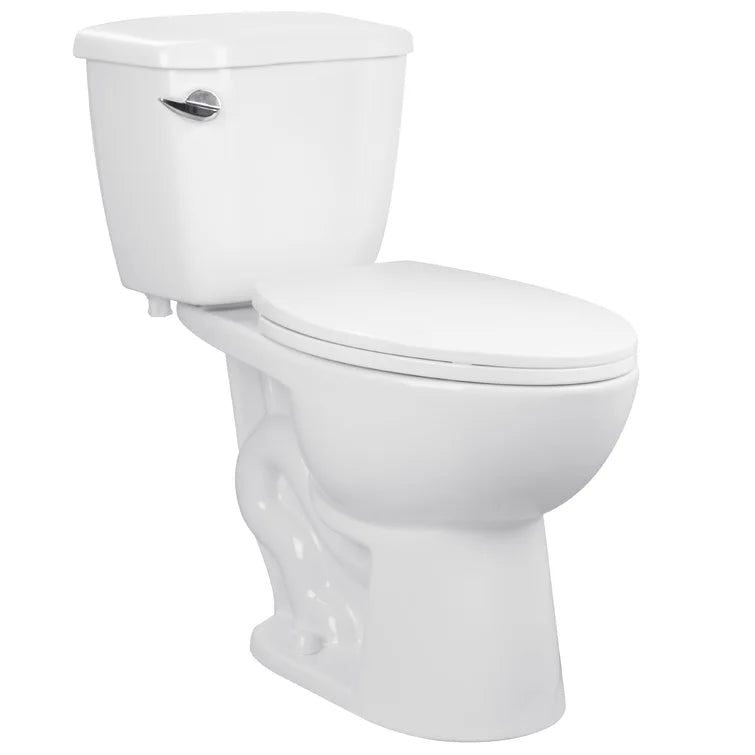

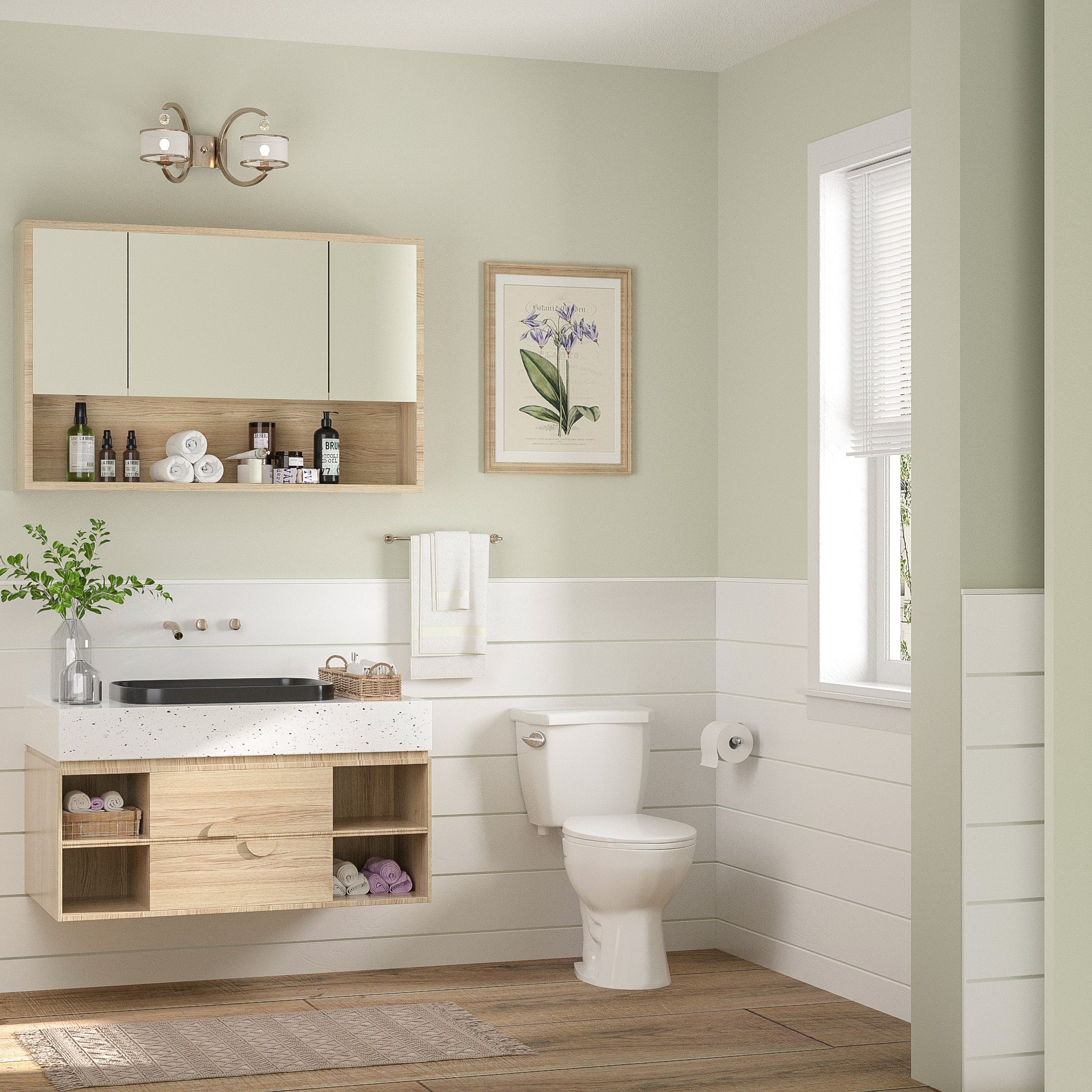

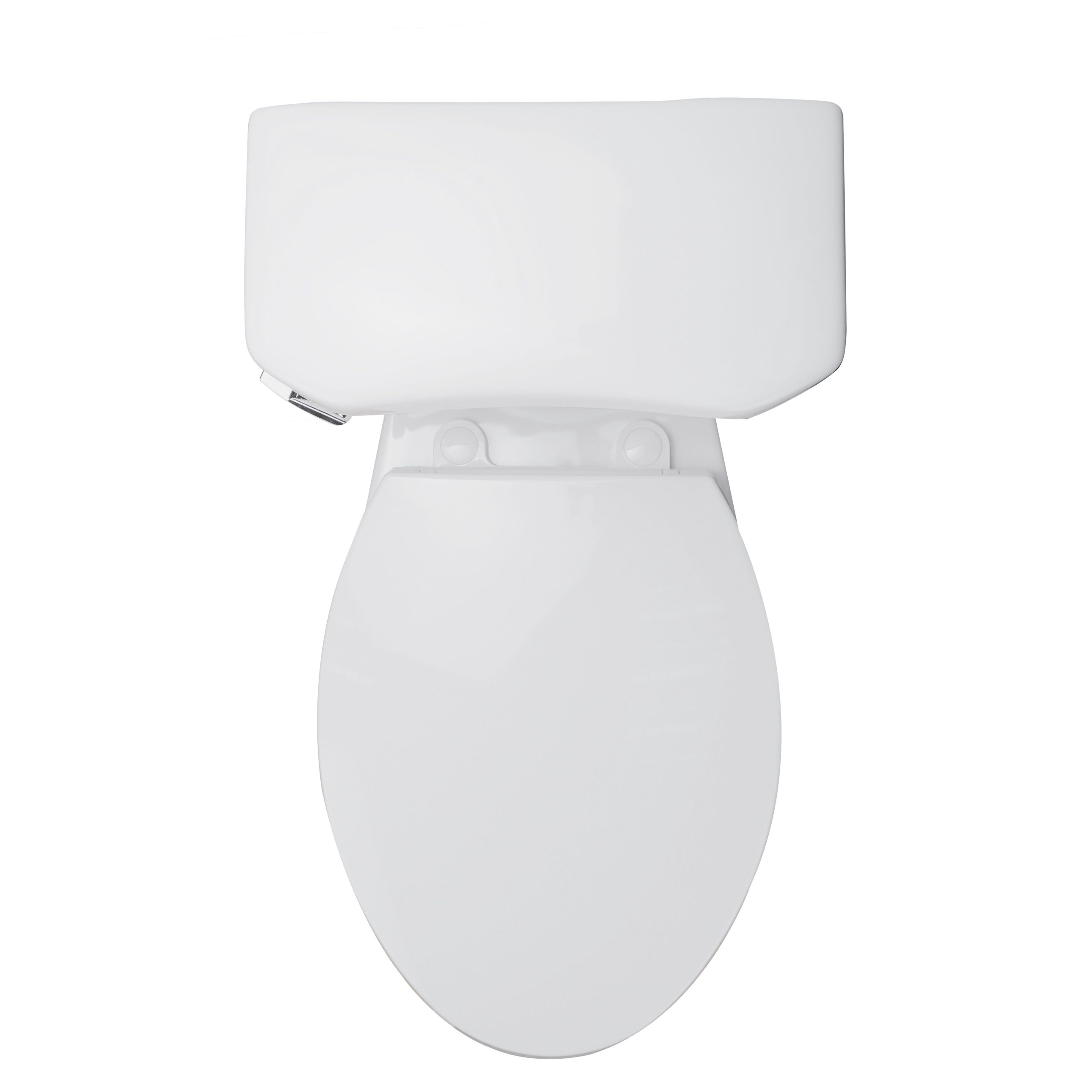

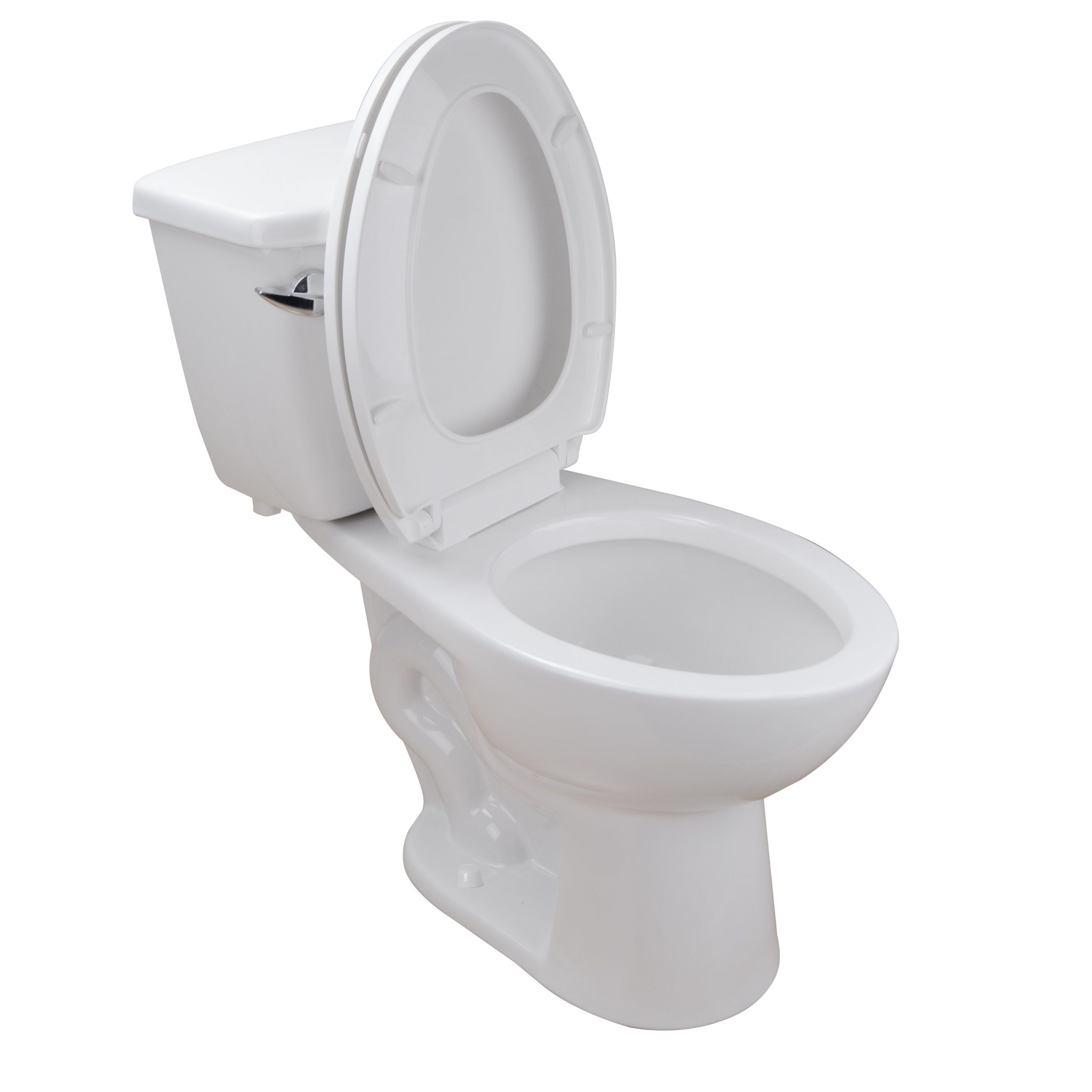

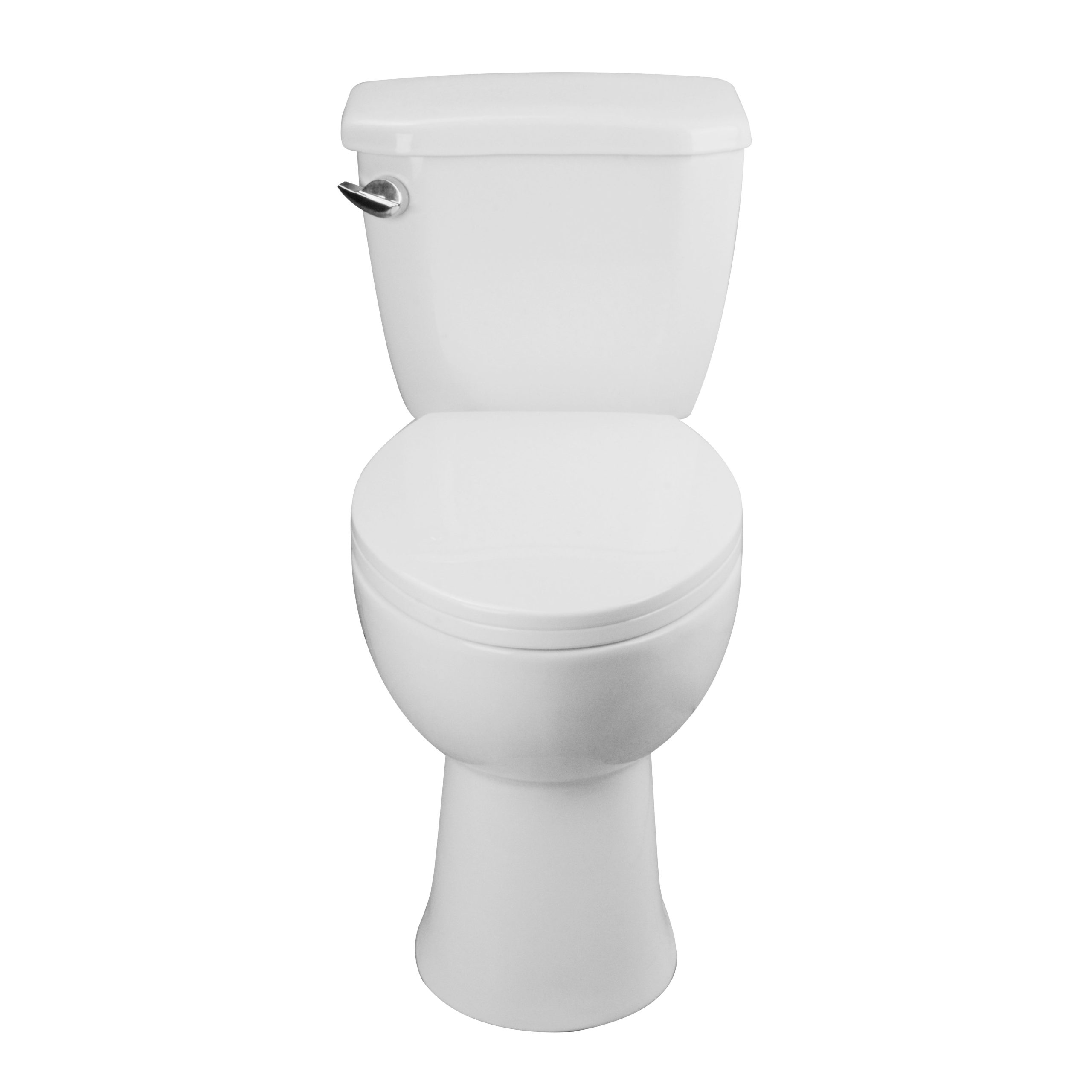

A perfect blend of traditional and contemporary design, while the elongated bowl offers improved comfort. The two-piece toilet features a powerful flushing system that ensures the bowl is thoroughly cleared and cleaned with every flush, making the toilet the perfect choice for eco-friendly elegance. This two-piece toilet has a left-hand chrome trip lever. This Complete Solution package includes everything necessary for installation.
Features
• Elongated bowl offers added room and comfort
• Bowl design reduces water flow resistance and turbulence, resulting in a quieter flush
• Standard left-hand polished chrome trip lever included
• The quiet-close elongated seat allows the seat to close quietly
• Complete solution toilets provide everything you need in 1 box, including bowl, tank, slow-close toilet seat, cover, wax ring, and floor hardware, the supply line is not included
• Light-touch canister flush requires a lower actuation force than a flapper
•
O ne-year limited warranty. DeerValley is always confident in our products and takes care of every customer.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
MaP：Powerfully blend flushing performance, reliability, waste clearance, and durability.?
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

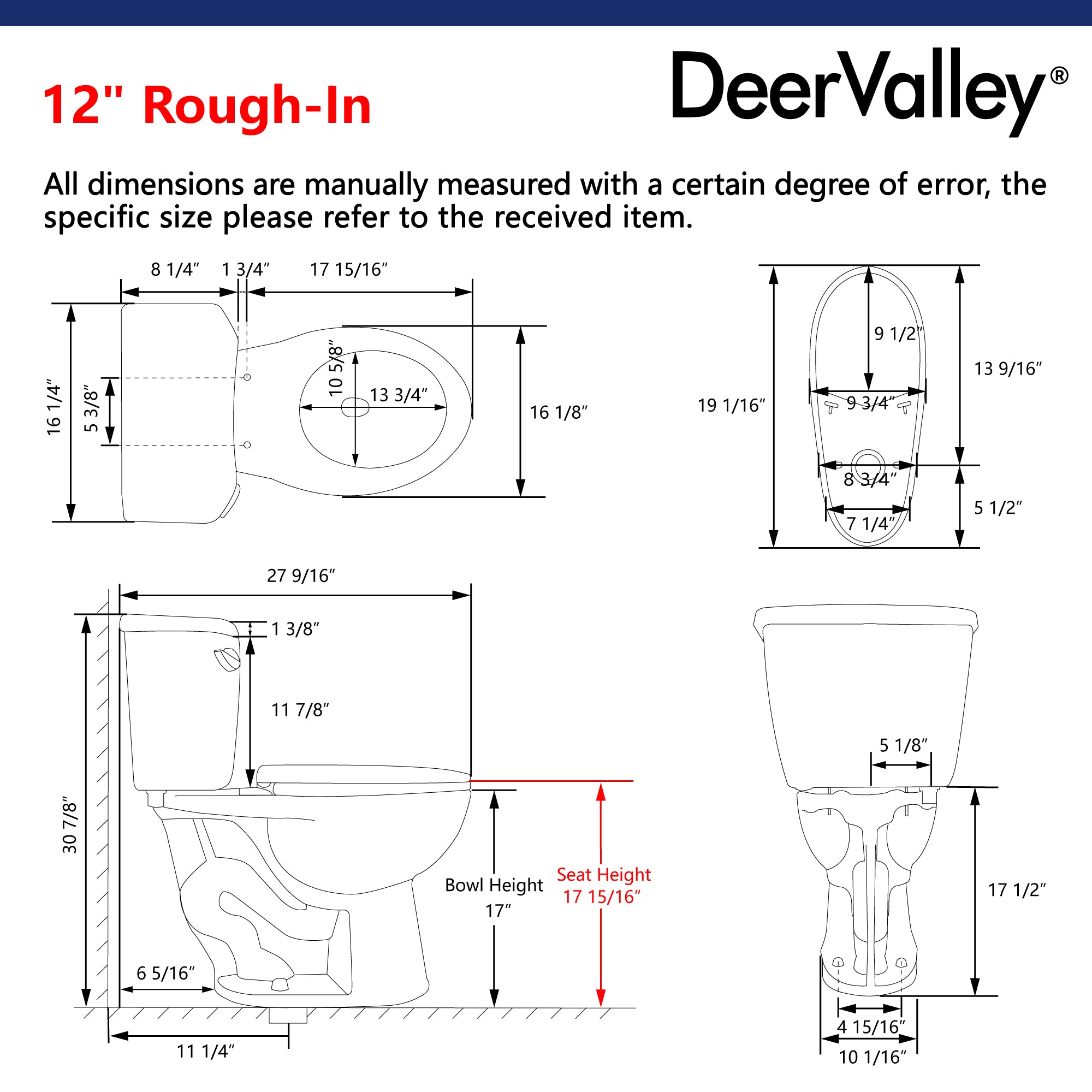

Weights & Dimensions
Overall:?27.56″?L?X?16.14″?W X?30.91″ H
Rough In Size:?12″
Toilet Seat Height – Top to Bottom:?17.91″
Bowl Height – Top to Bottom:?17.01″
Tank:?11.89″?H X?15.75″?L?X?8.07″ W
Tank Lid: 1.38″?H X?16.26″?L?X?8.27″ W
Bolts Spread Distance: 5.39″
Distance from the Seat Installation Hole to the Tank: 1.77″
Distance from the Back of the Toilet to the Wall: 6.30″
Toilet Installation Hole Distance: 4.92″
Height from the Bottom of the Water Tank to the Ground: 17.52″
Distance Between the Center of Adapter and the Center of Trap-way: 5.12″
Trap-way Diameter: 2.17″
Toilet Seat: 1.77?Back/?1.26?Front ” H X 14.09″ W X 17.91″ L
Toilet Seat Inside Ring: 8.46″ W X 12.40″ L
Bowl: 13.78″ L?X?10.63″ W
Toilet Base Dimension(Length & Width): 19.09?X?10.04″
Overall Product Weight:?102.7?lb.
Flush Volume:?1.28 GPF
What is included in the package?
• Toilet seat, wax ring kit, bolts.
Compatible Accessories
• Toilet Seat Quick Release Bracket: DV-F531S01
• Toilet Tank Installation Kit: DV-F531P21
• Toilet Seat: DV-F531S11
• Tank Lid: DV-F531T11
• Flush Button: DV-F531V31
• Waxring and Toilet Bolts: DV-F531P11
• Fill Valve: DV-F531V01
Installation Manual:
?
?
