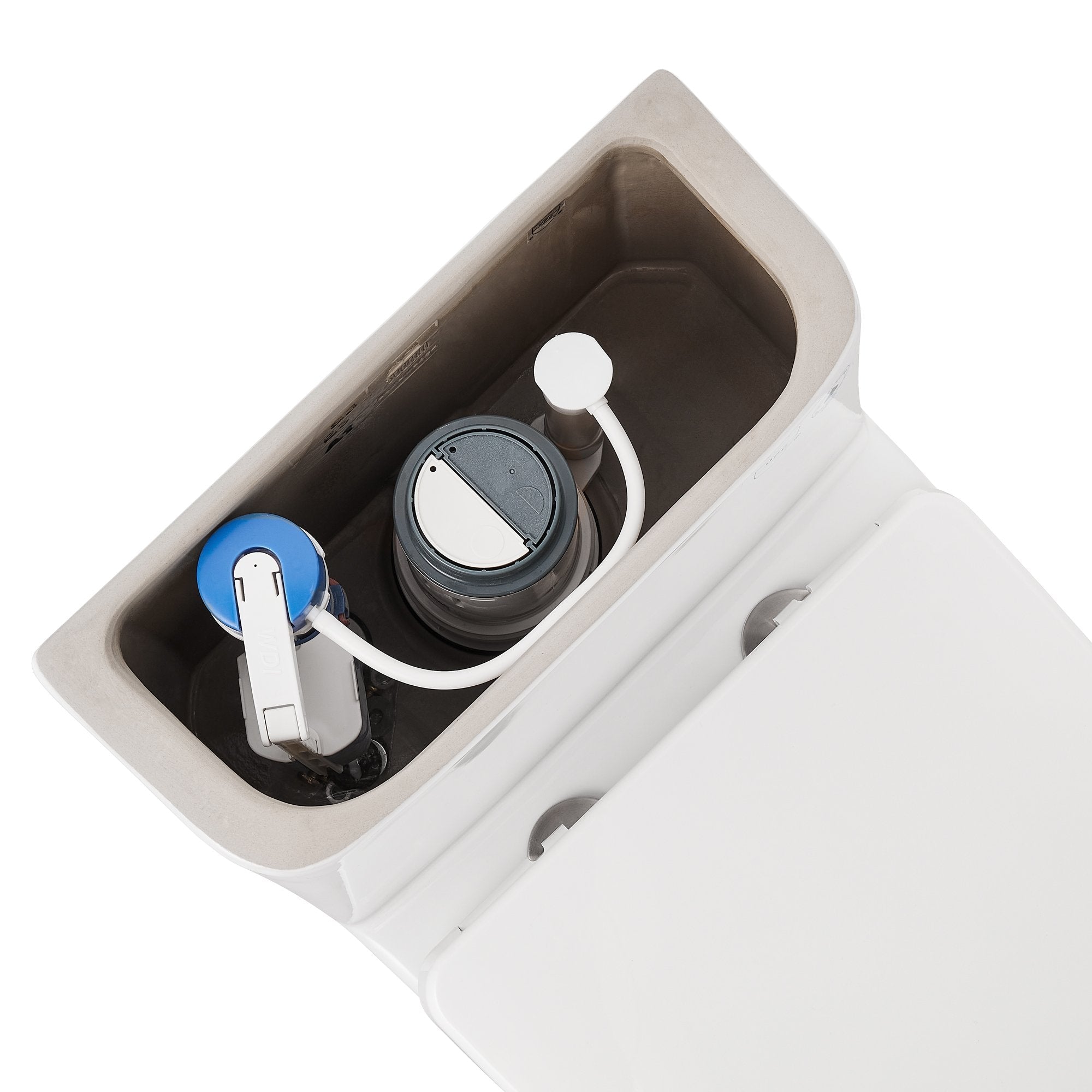

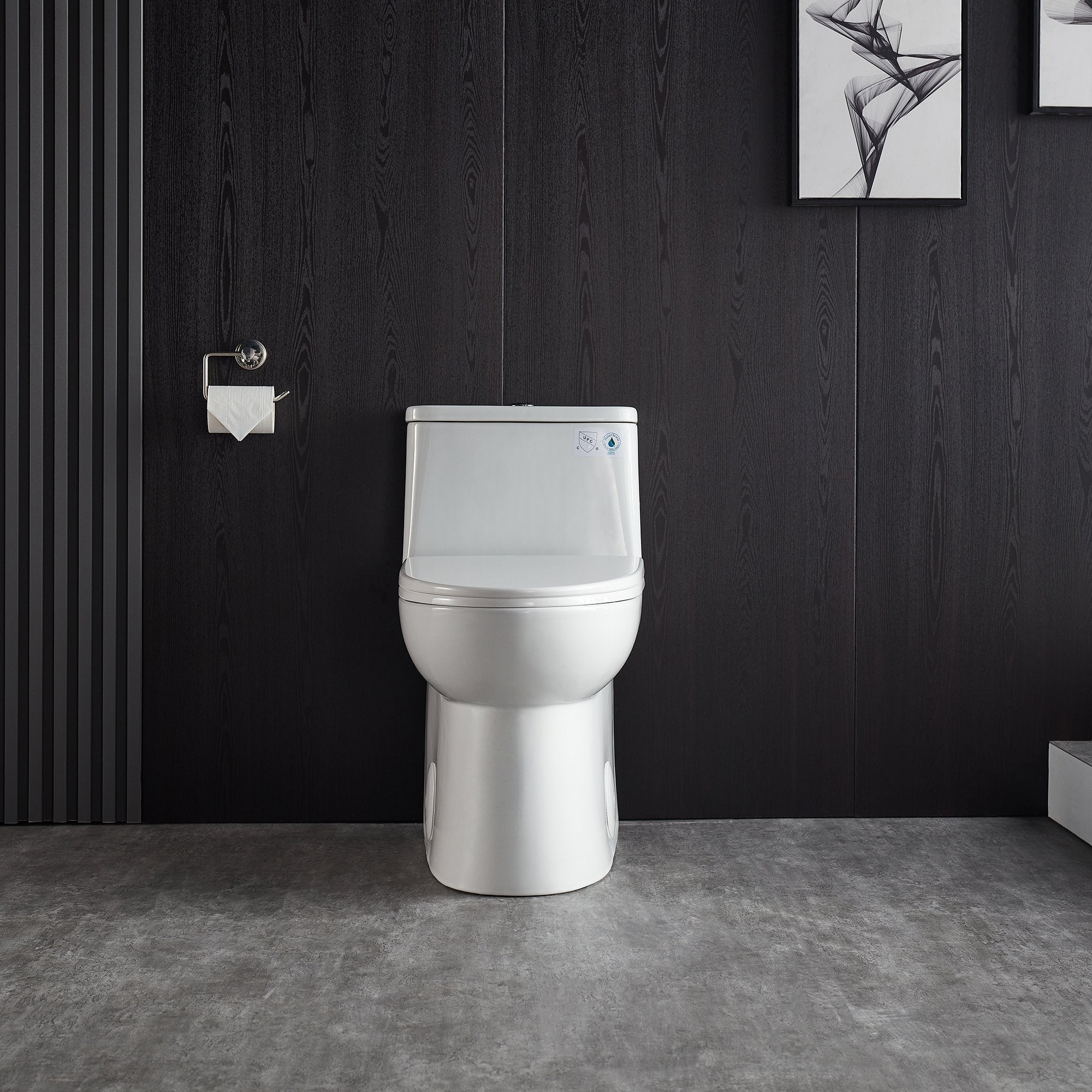

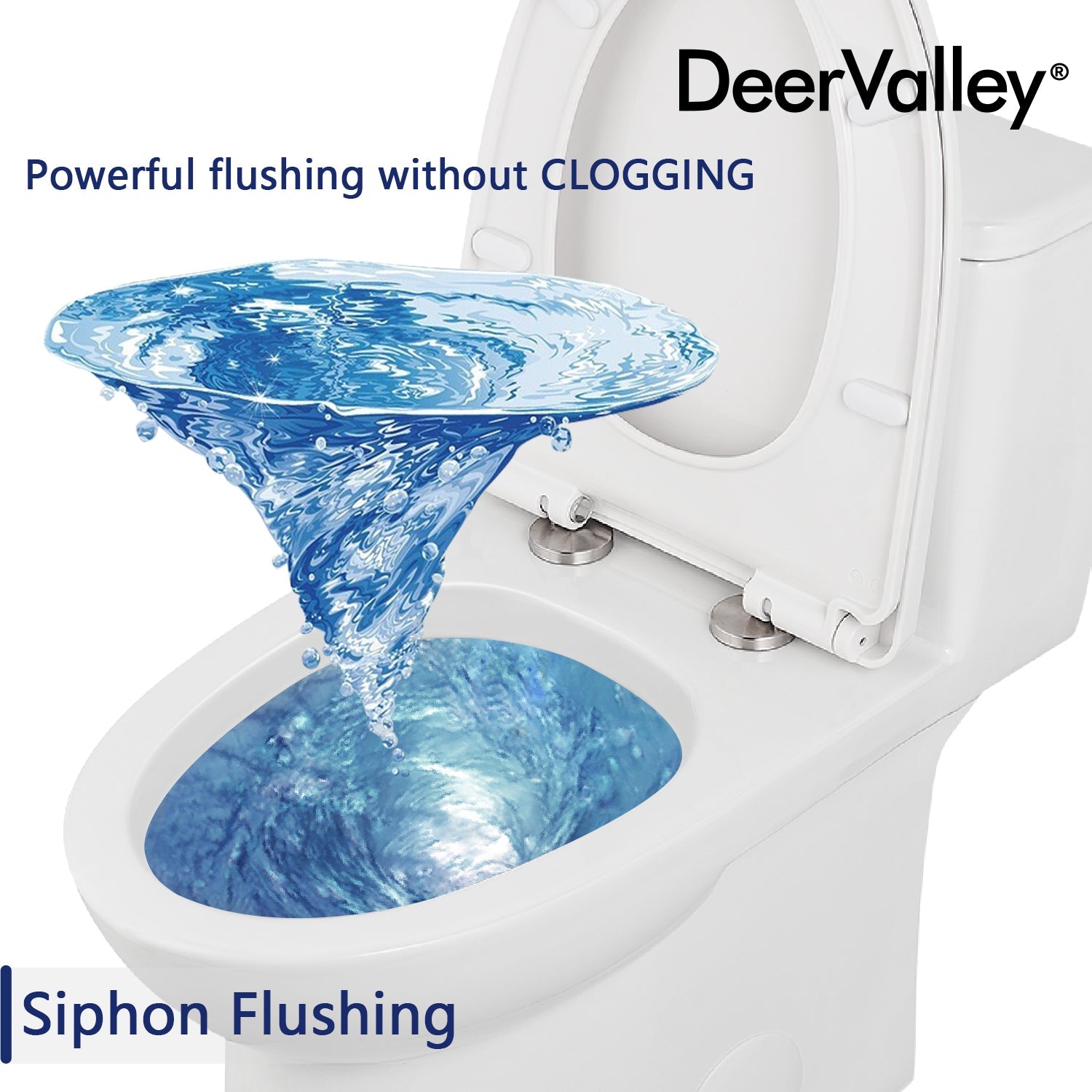

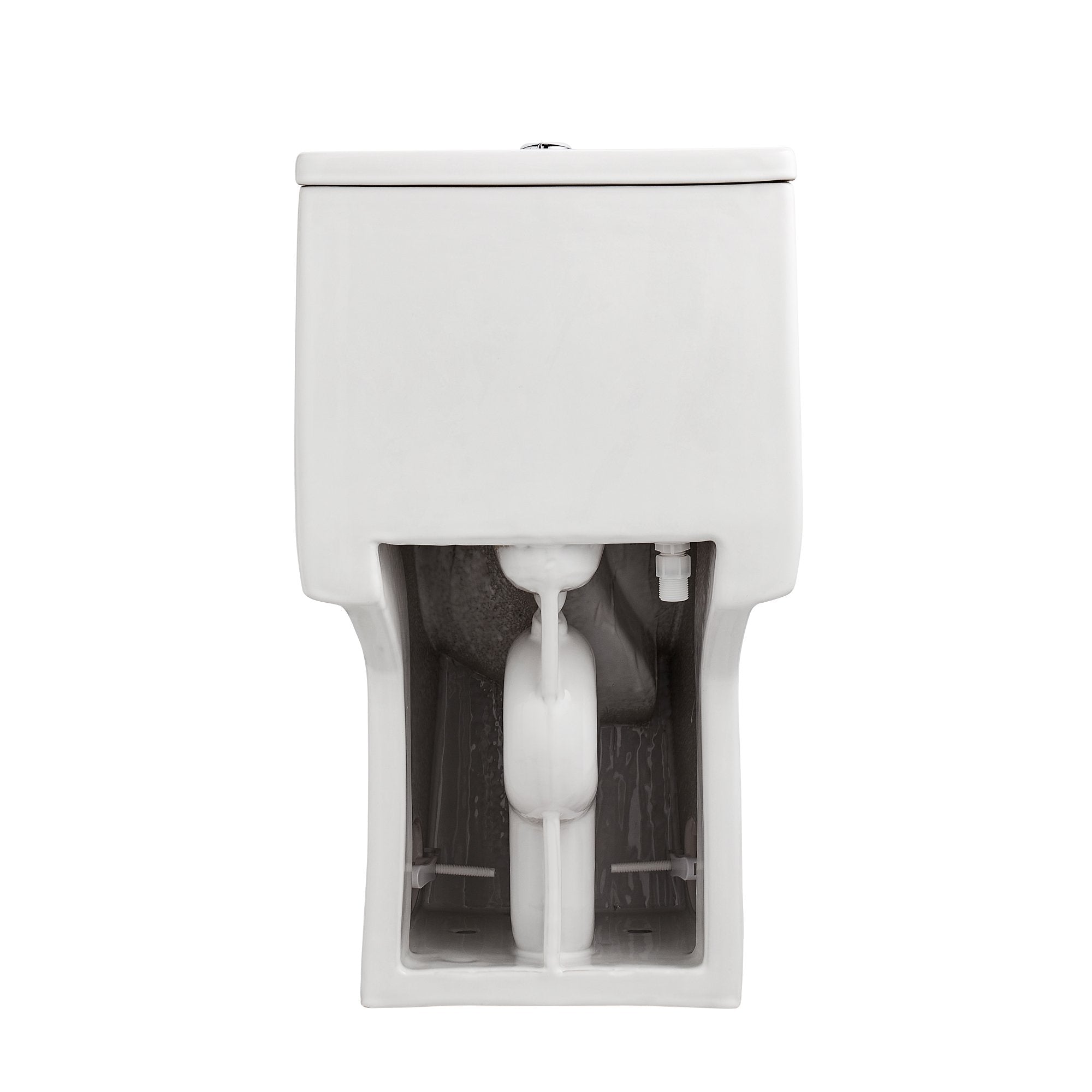

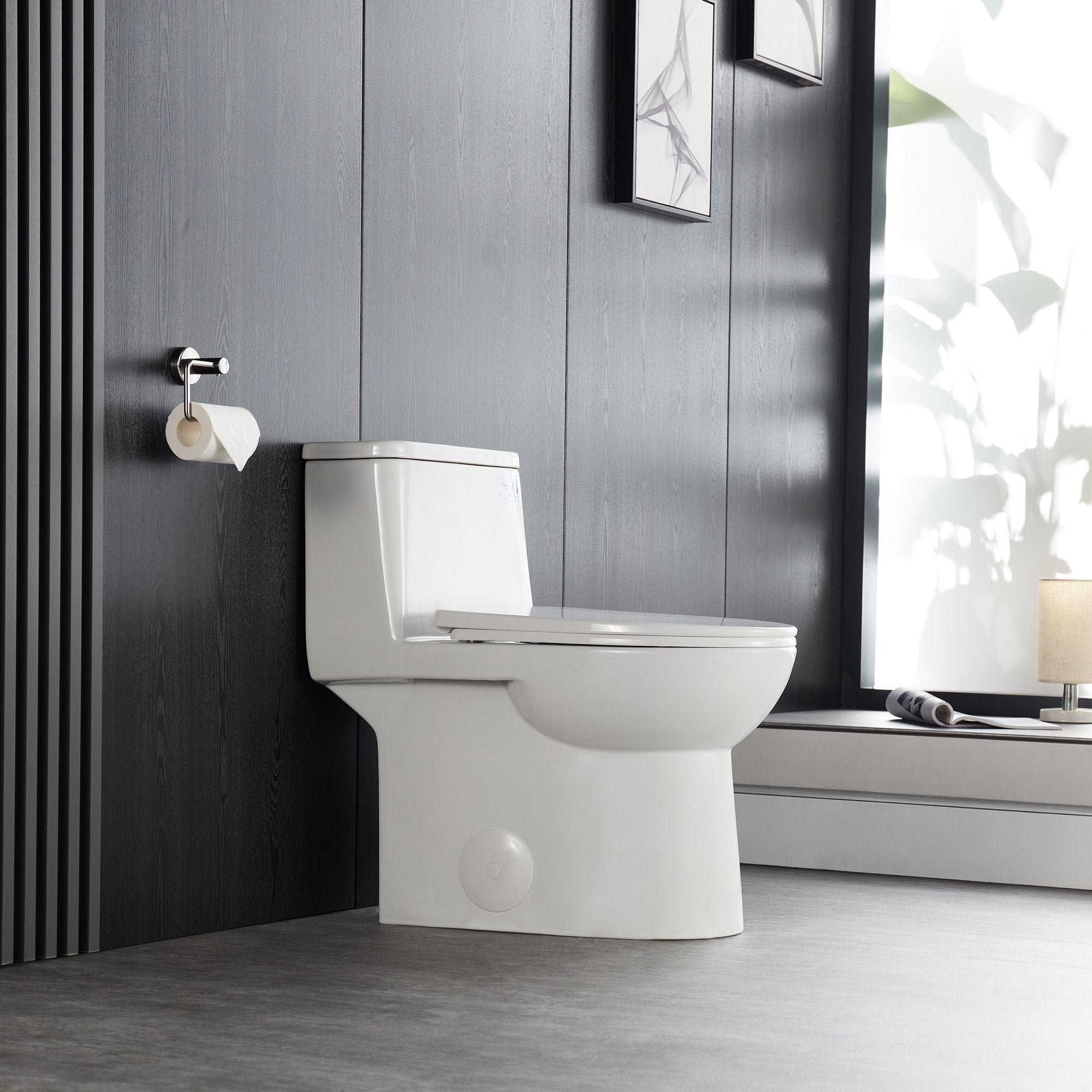

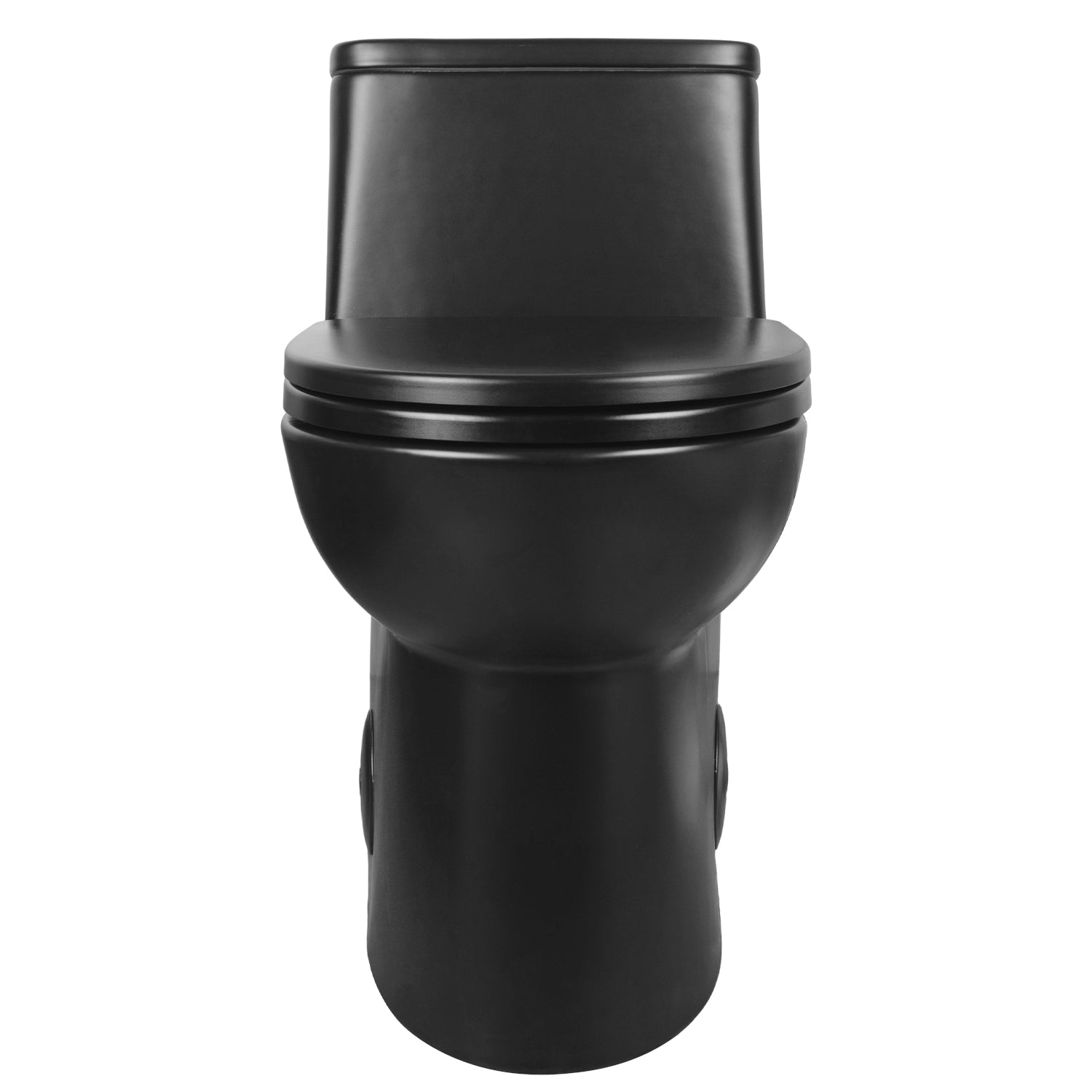

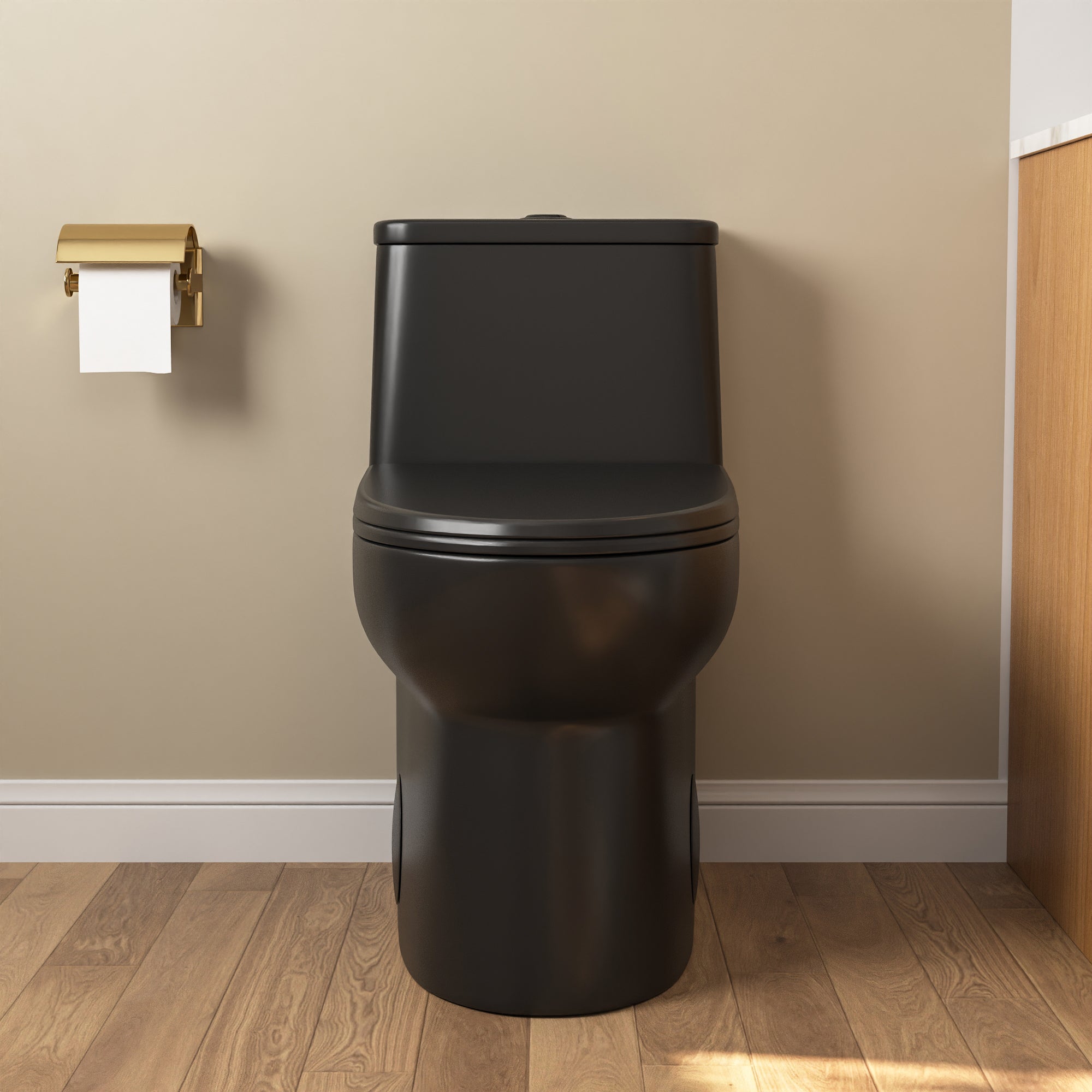

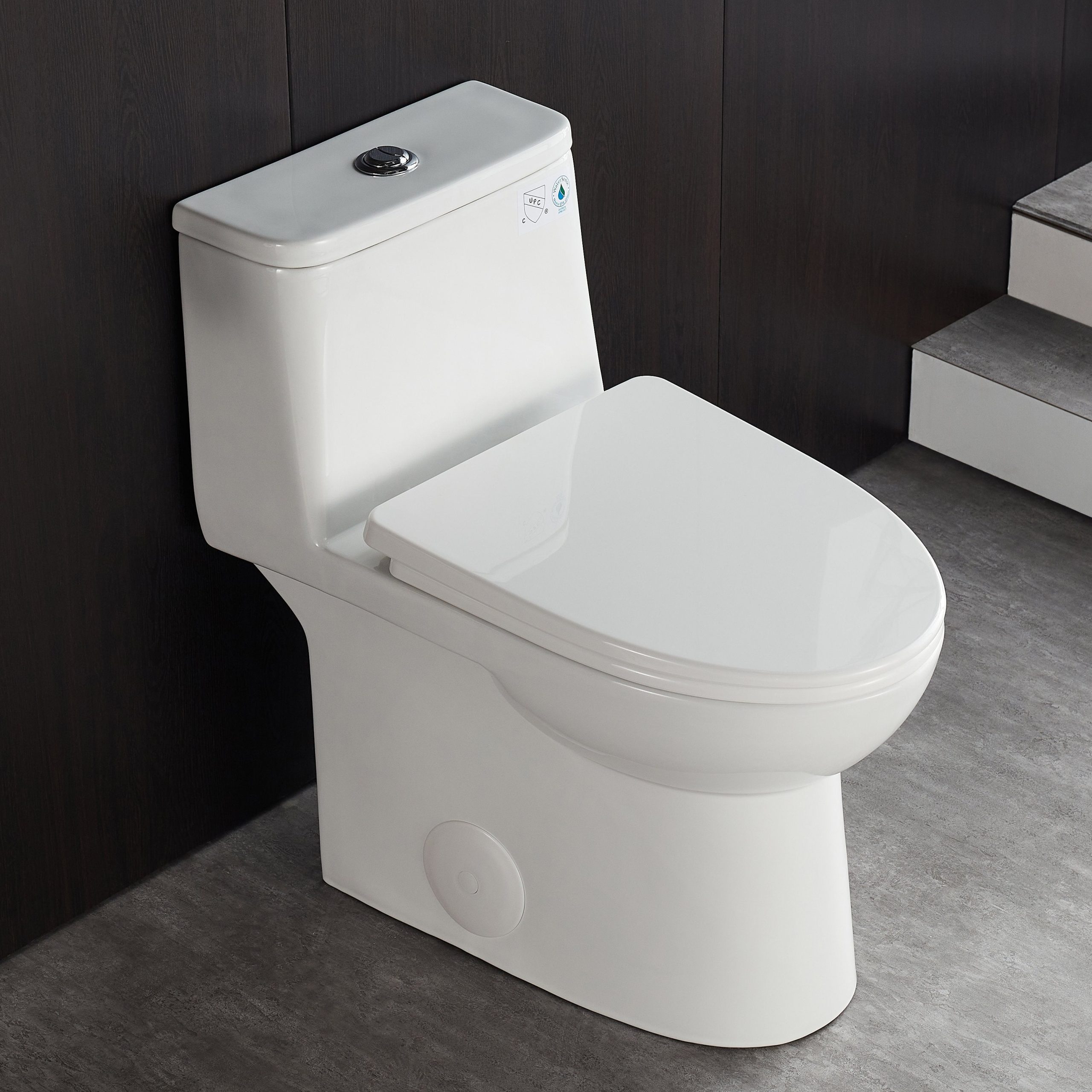

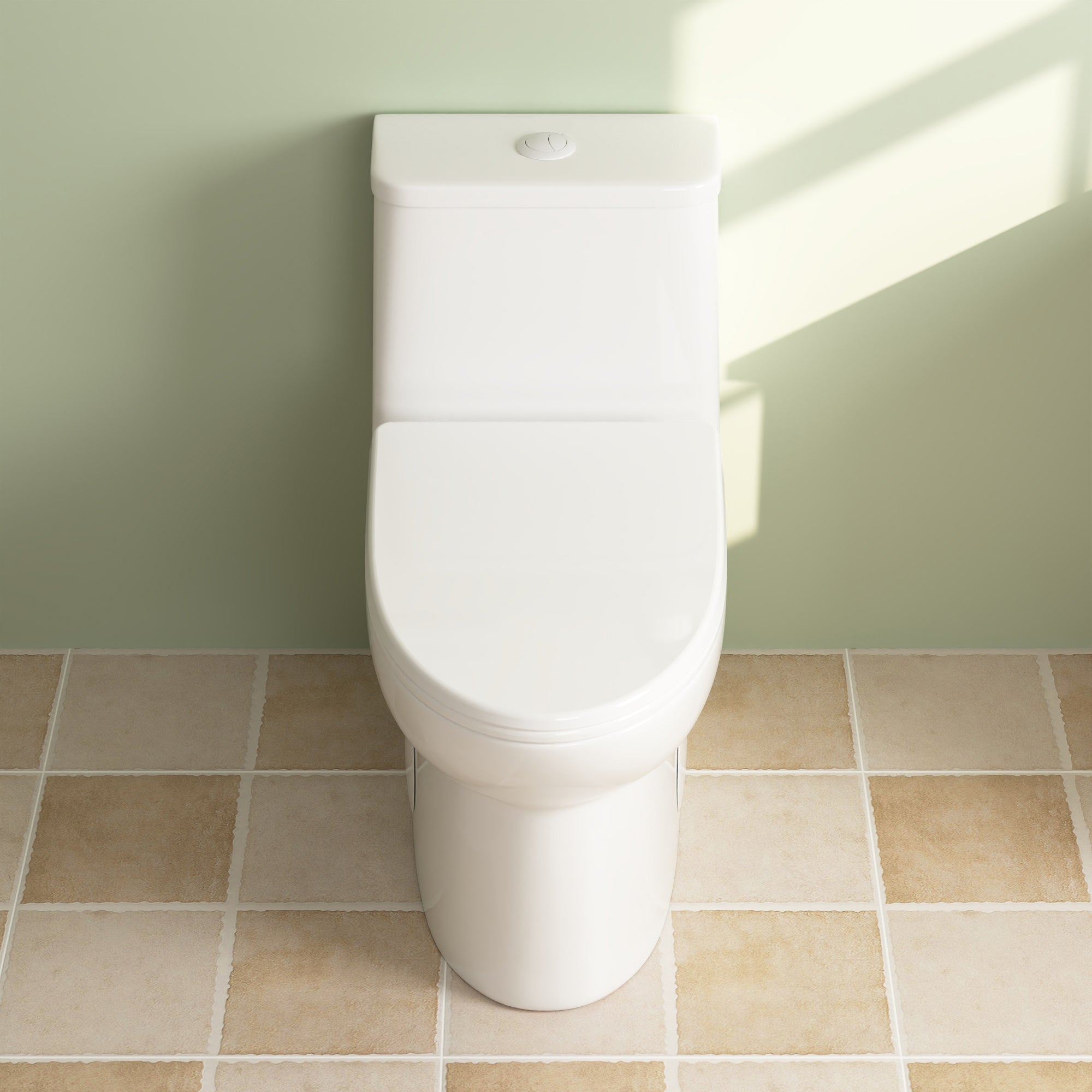

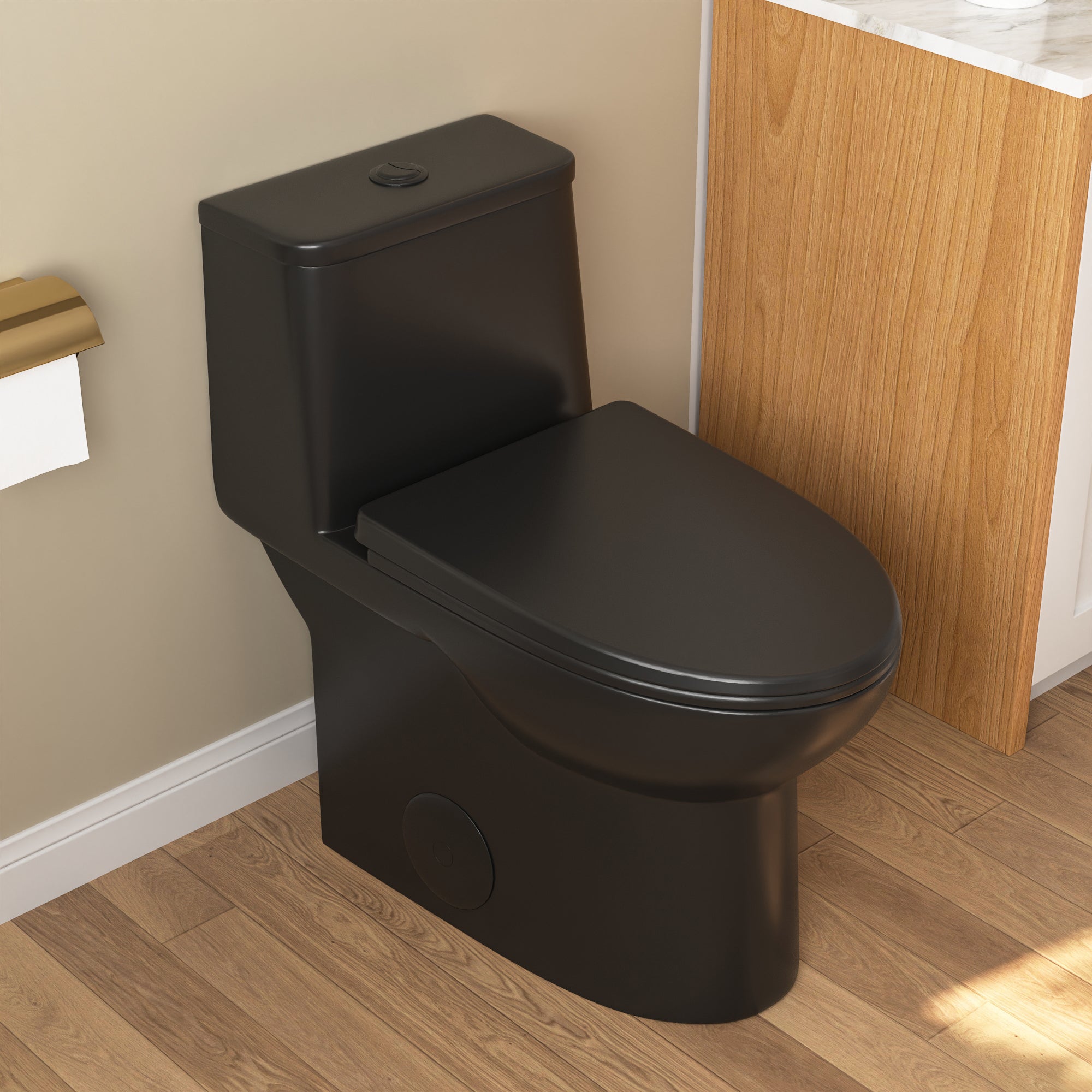

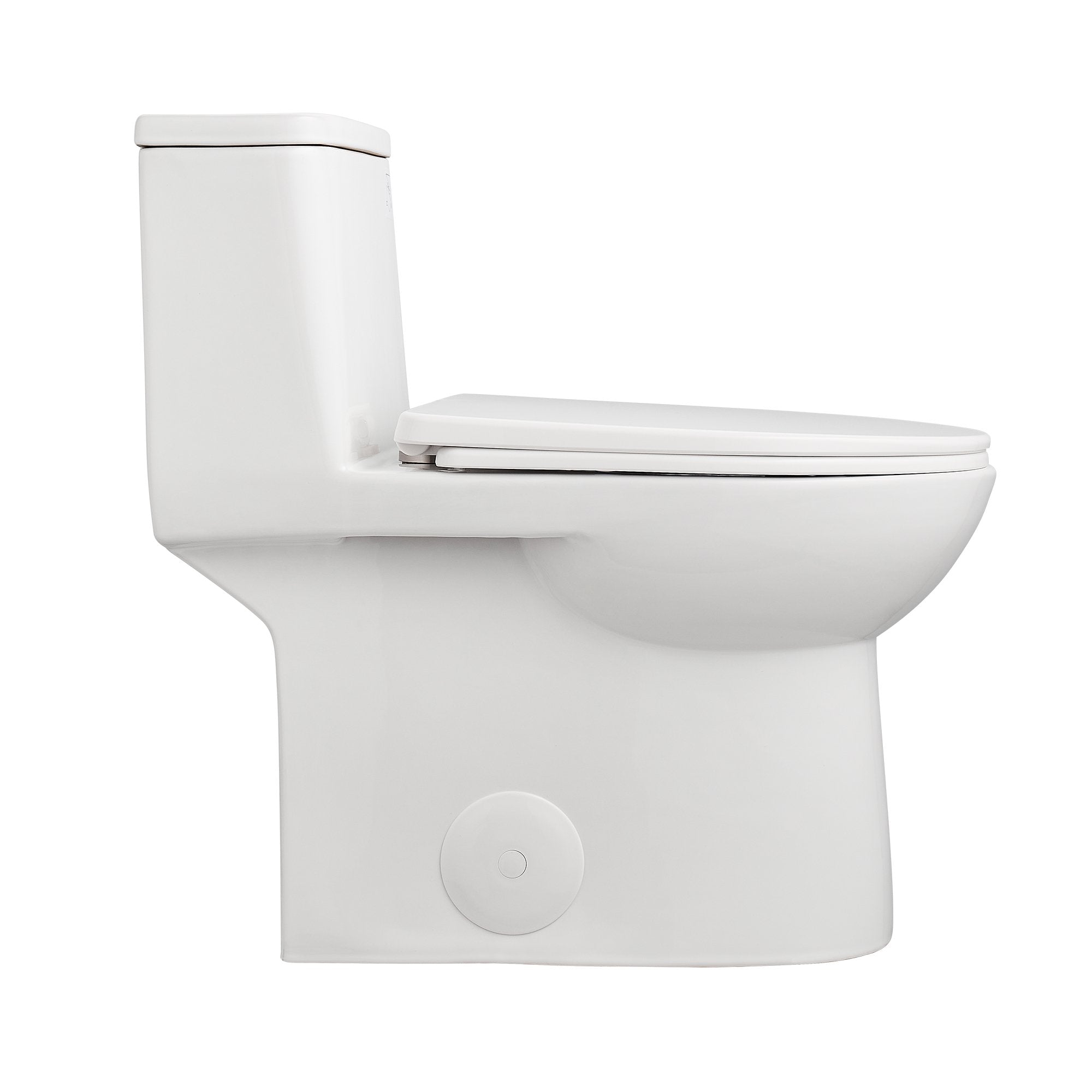

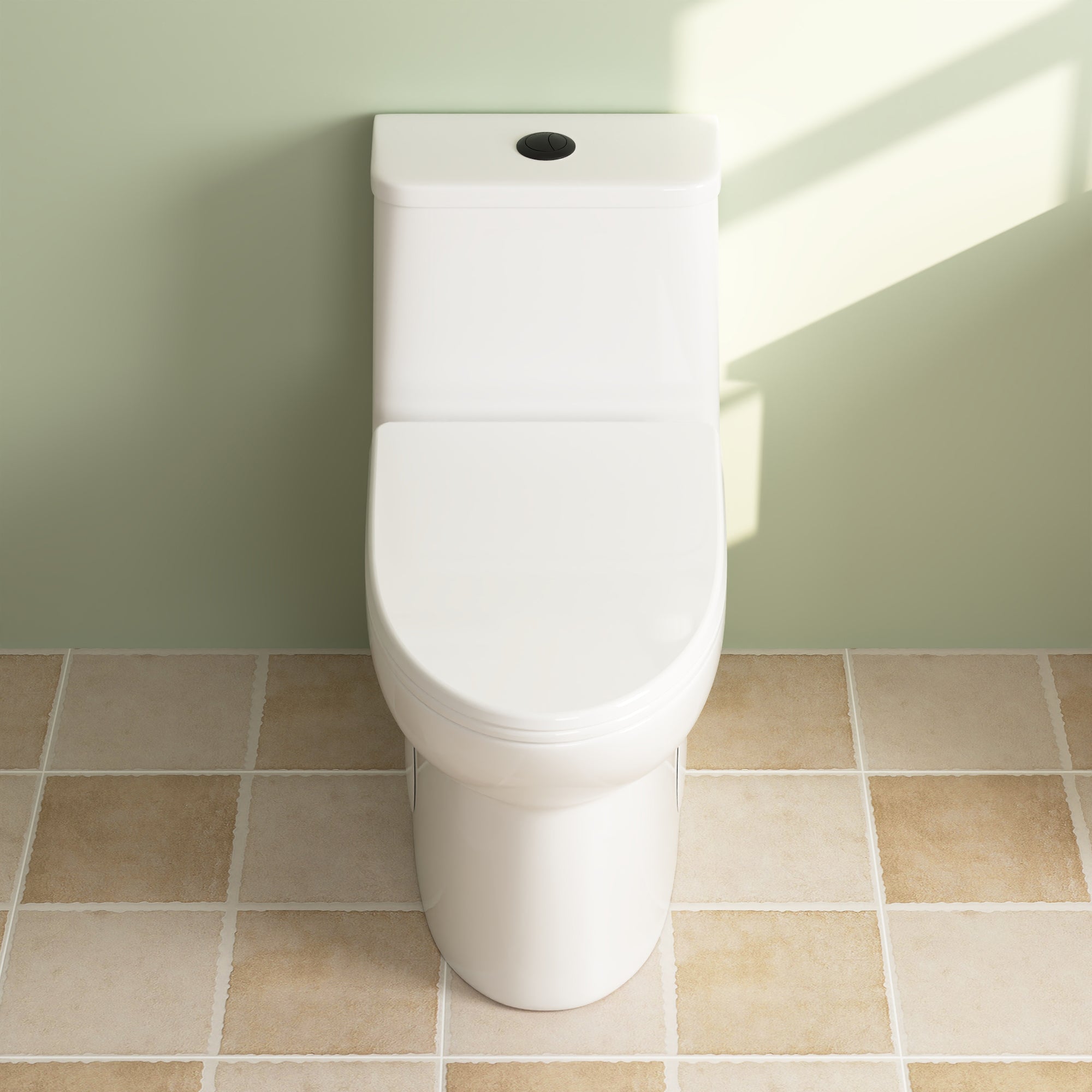

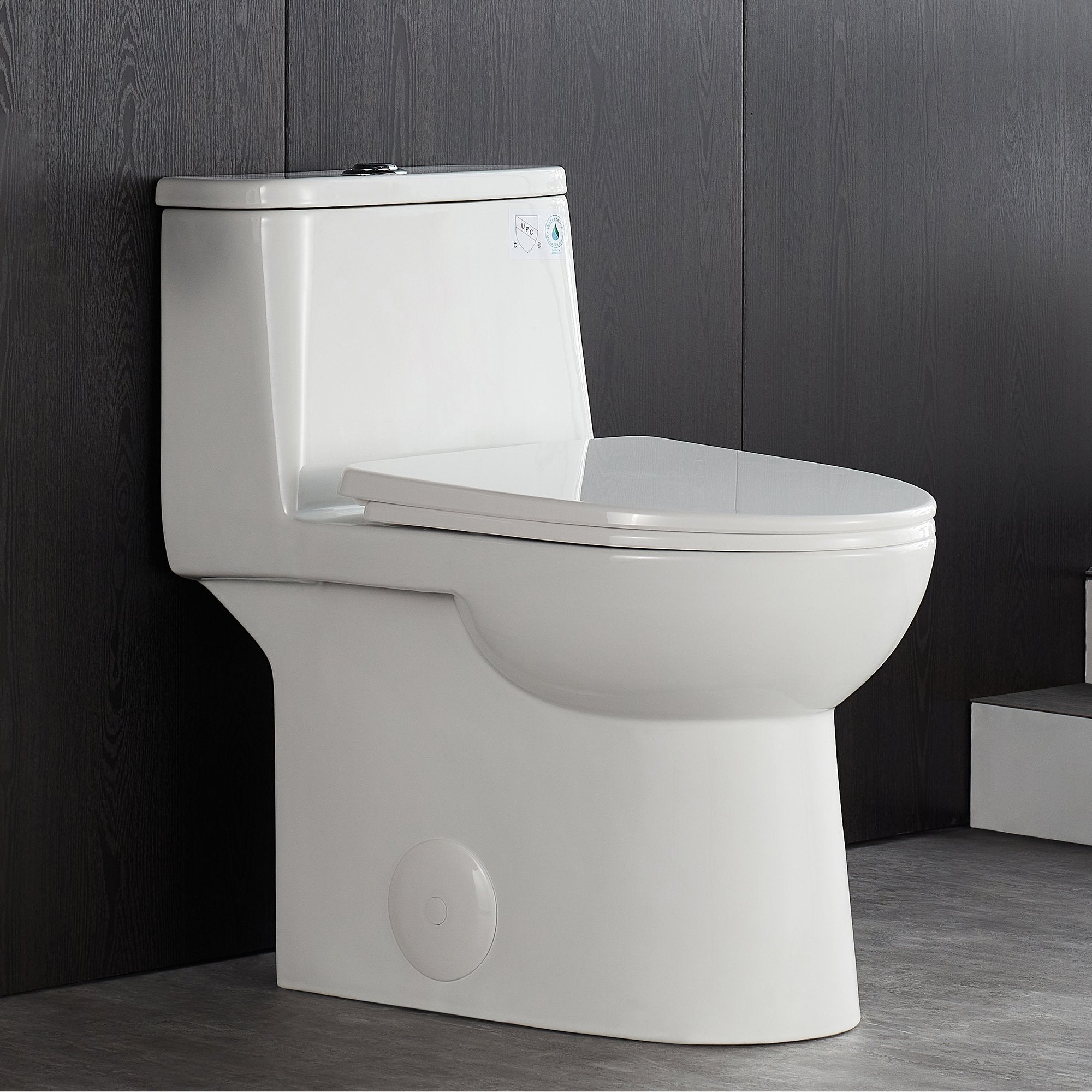

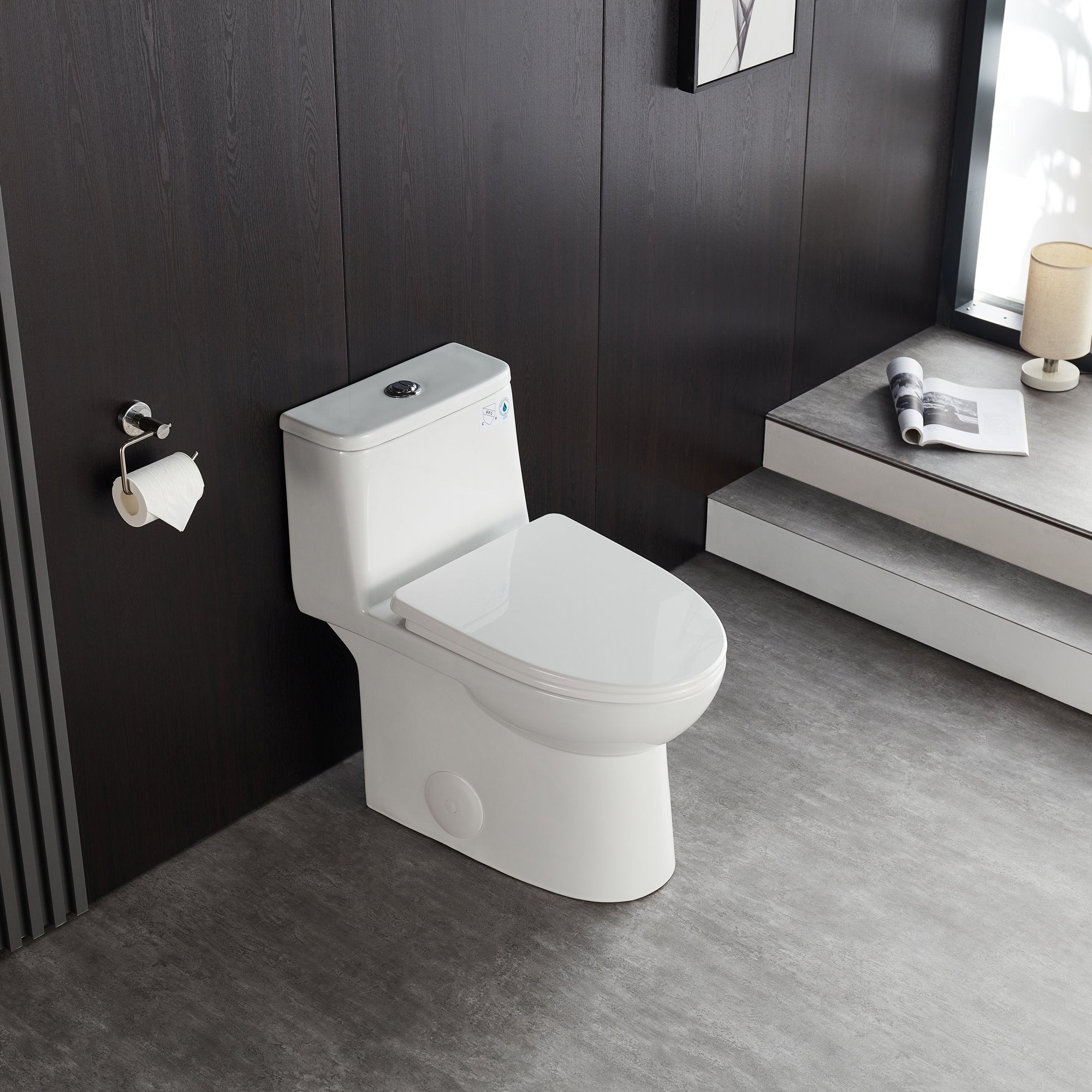

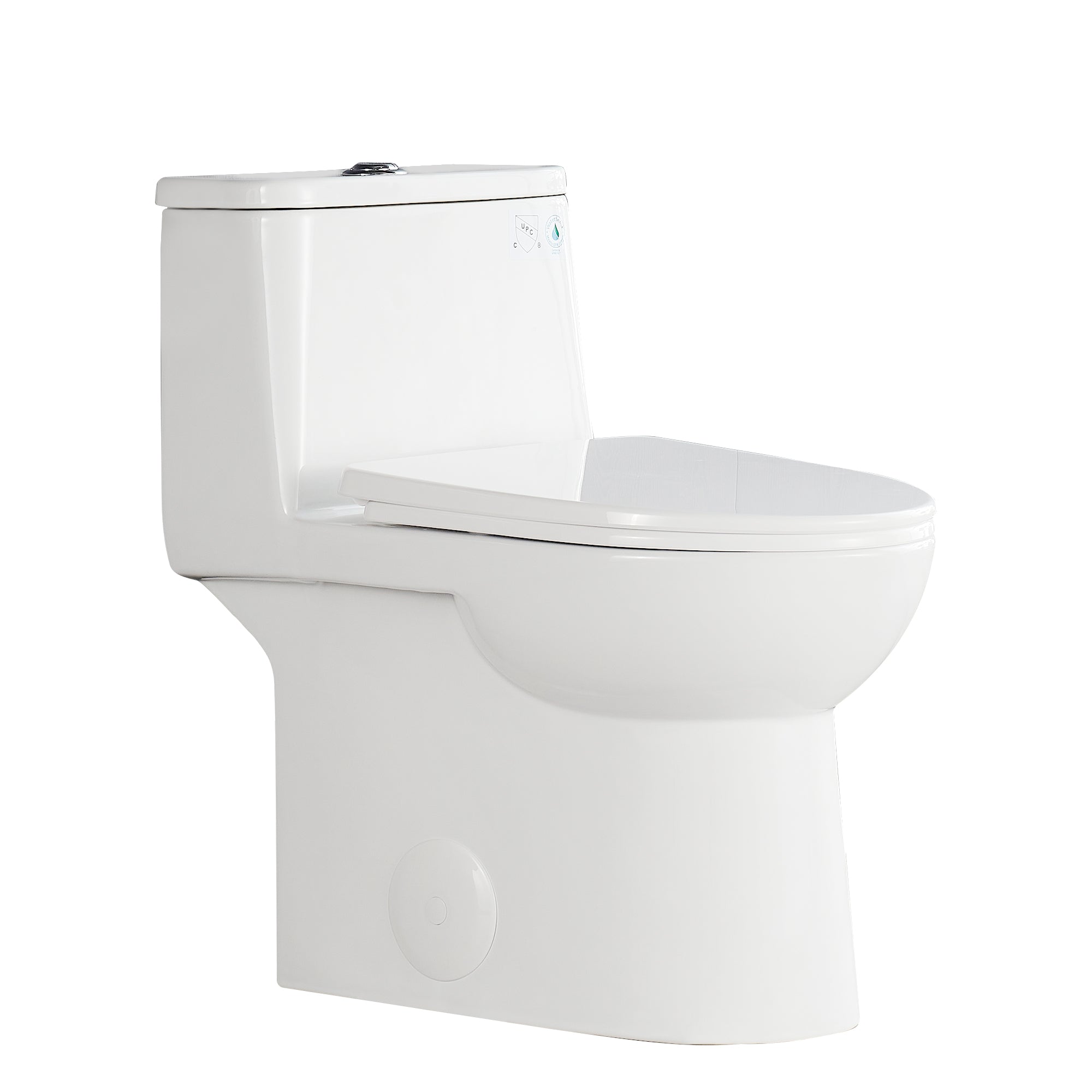

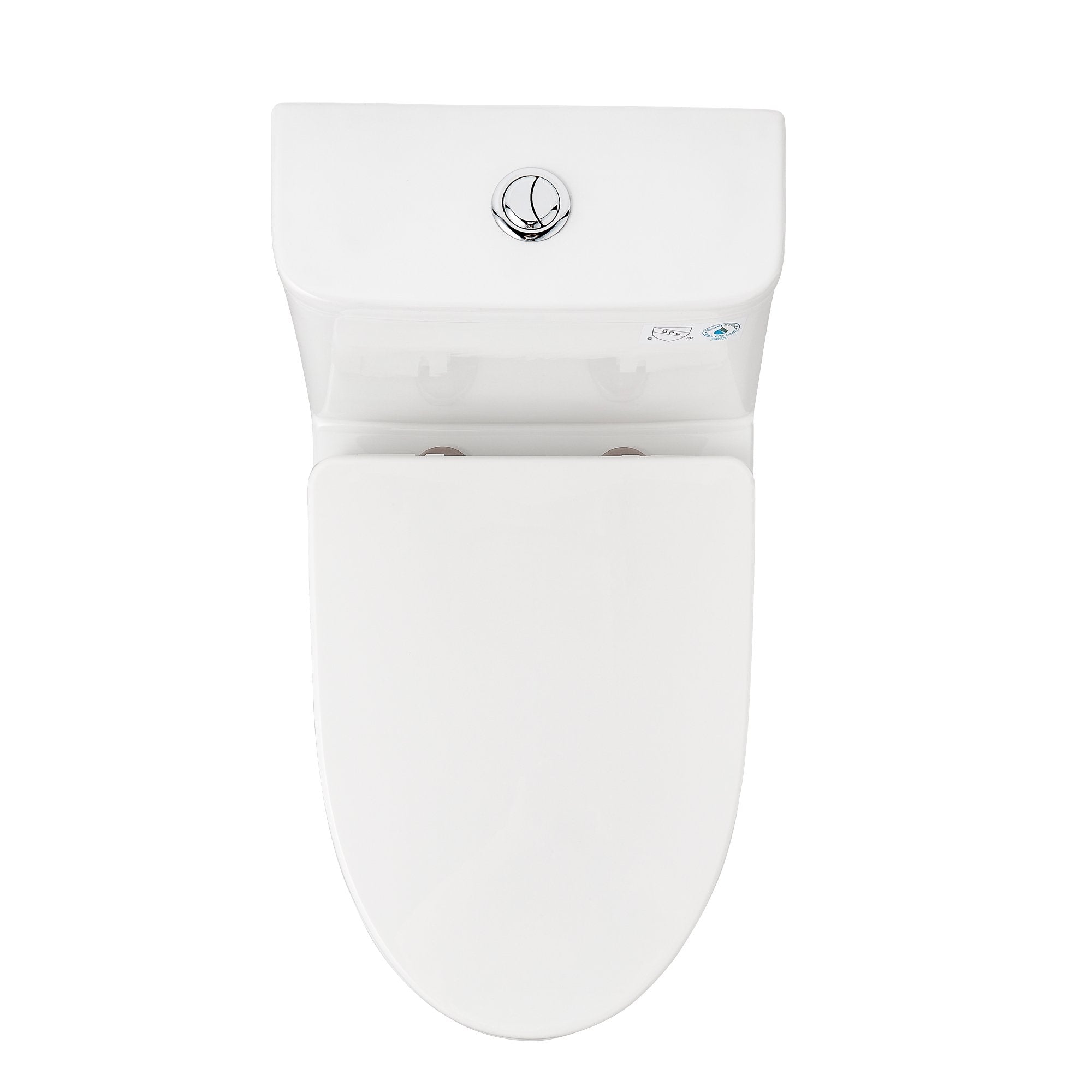

DeerValley’s one-piece toilet has elegant curves and a tough finish, making it perfect for any modern bathroom. This toilet has a siphon dual flush system, giving you the option of a 1.6 GPF or 1.1 GPF. It also comes with a high-quality soft close seat with quick-release hinges for easy cleaning and easy installation. The soft-close mechanism ensures that the sound of the toilet lid closing will not awaken your family. The hidden pipe design makes its appearance tidier and easier to clean. DeerValley’s one-piece toilet will be the choice to meet your needs.
Features:

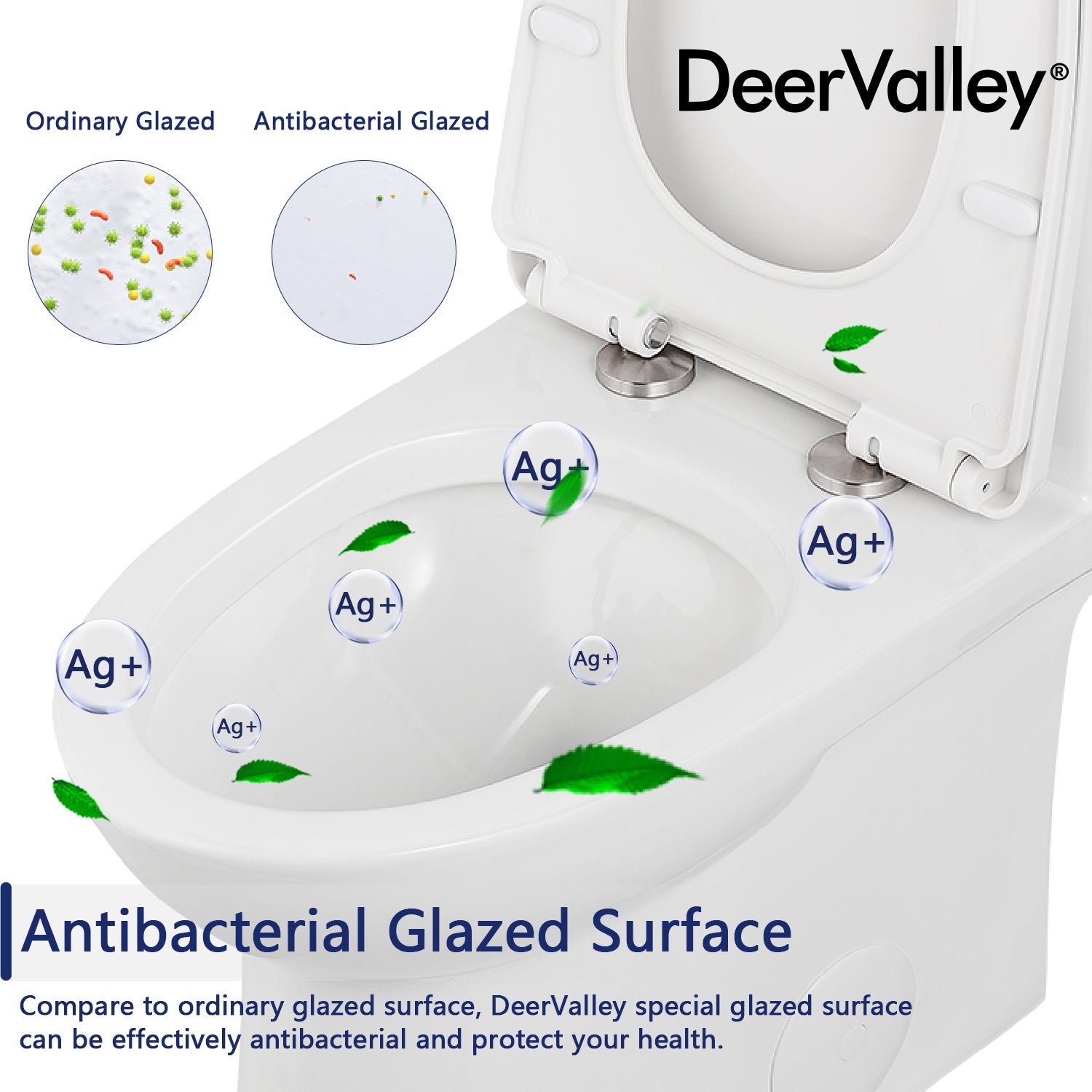

• This toilet is made of ceramic all the way through inside and out, and its surface is glazed.

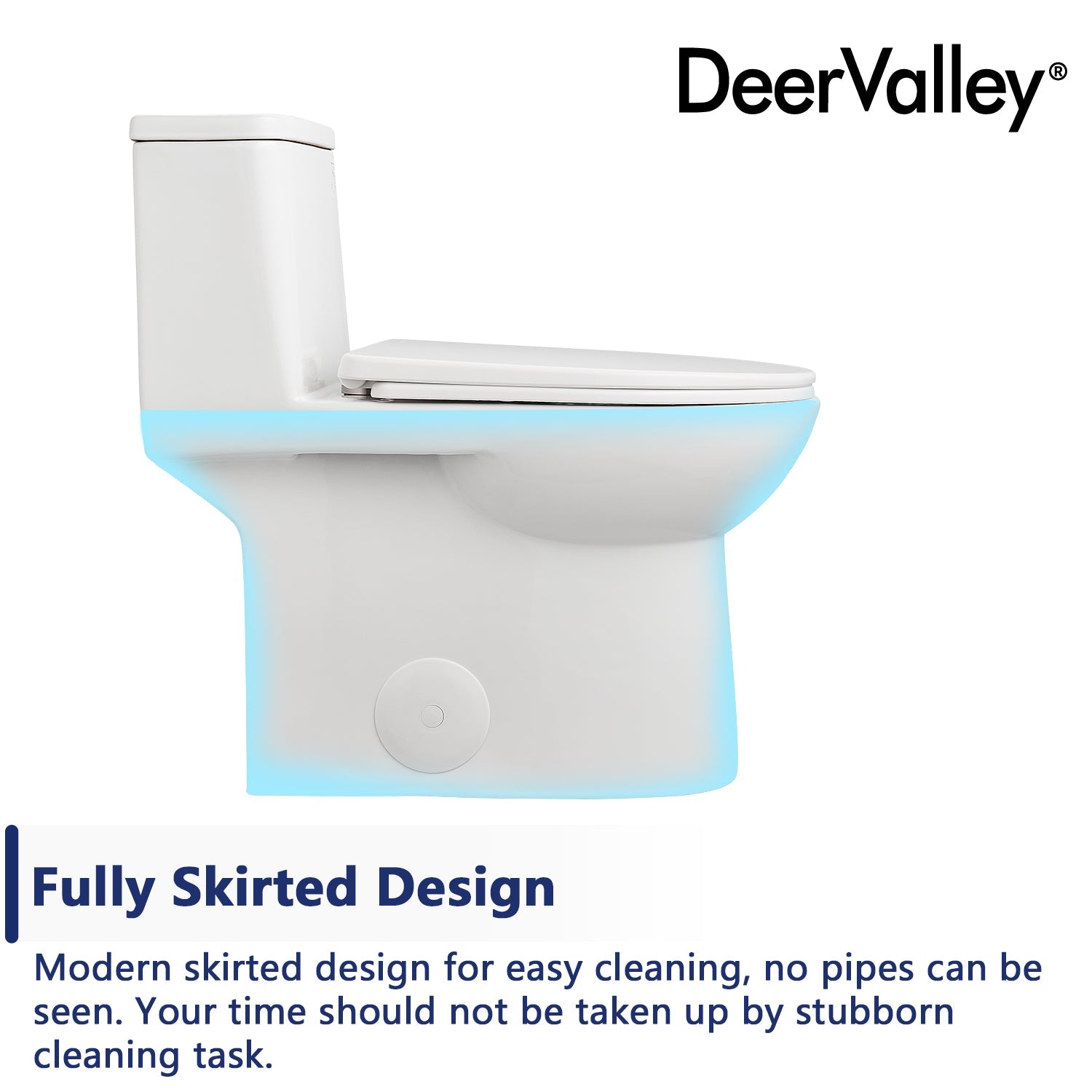

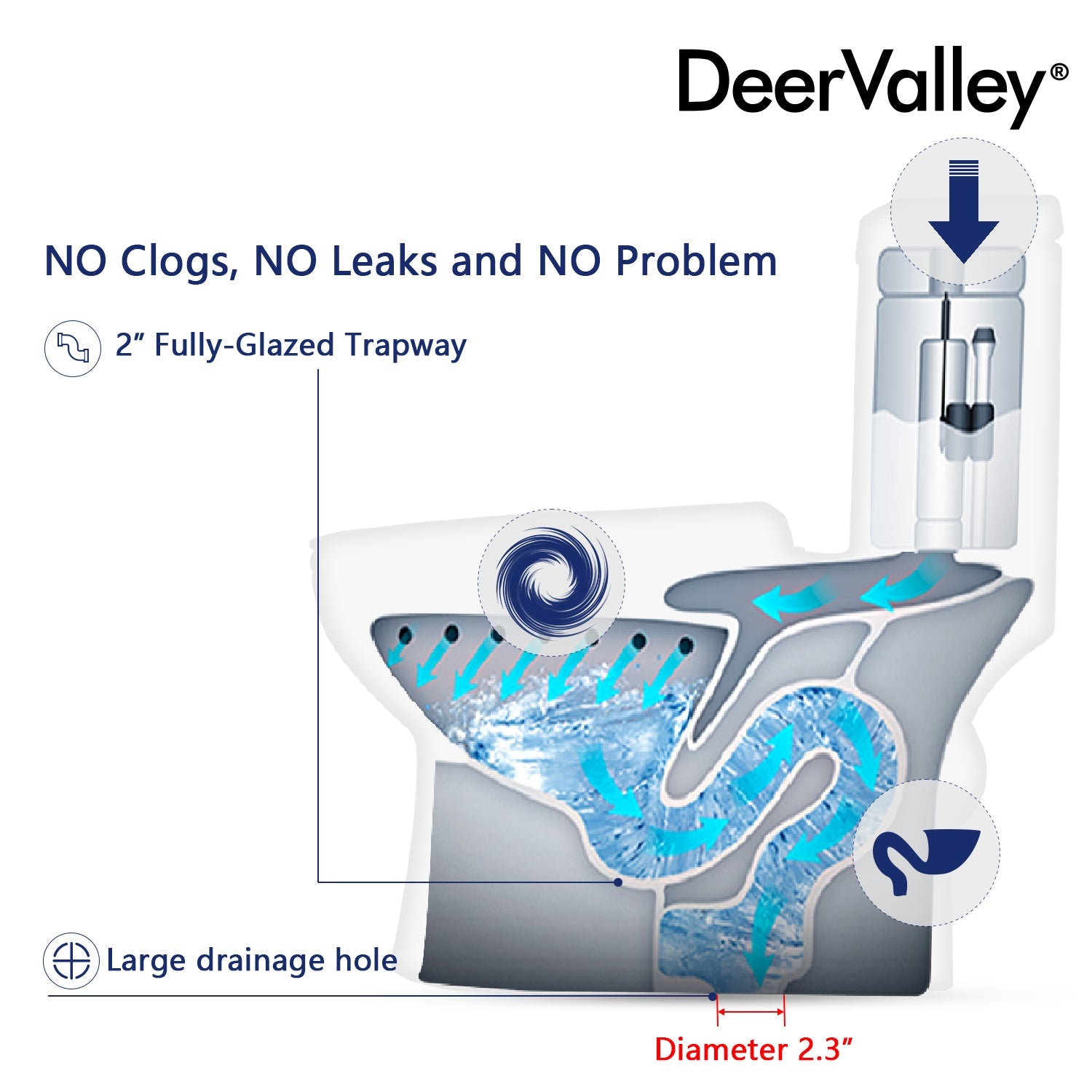

• The skirted trap way creates a sleek look and makes cleaning easier.

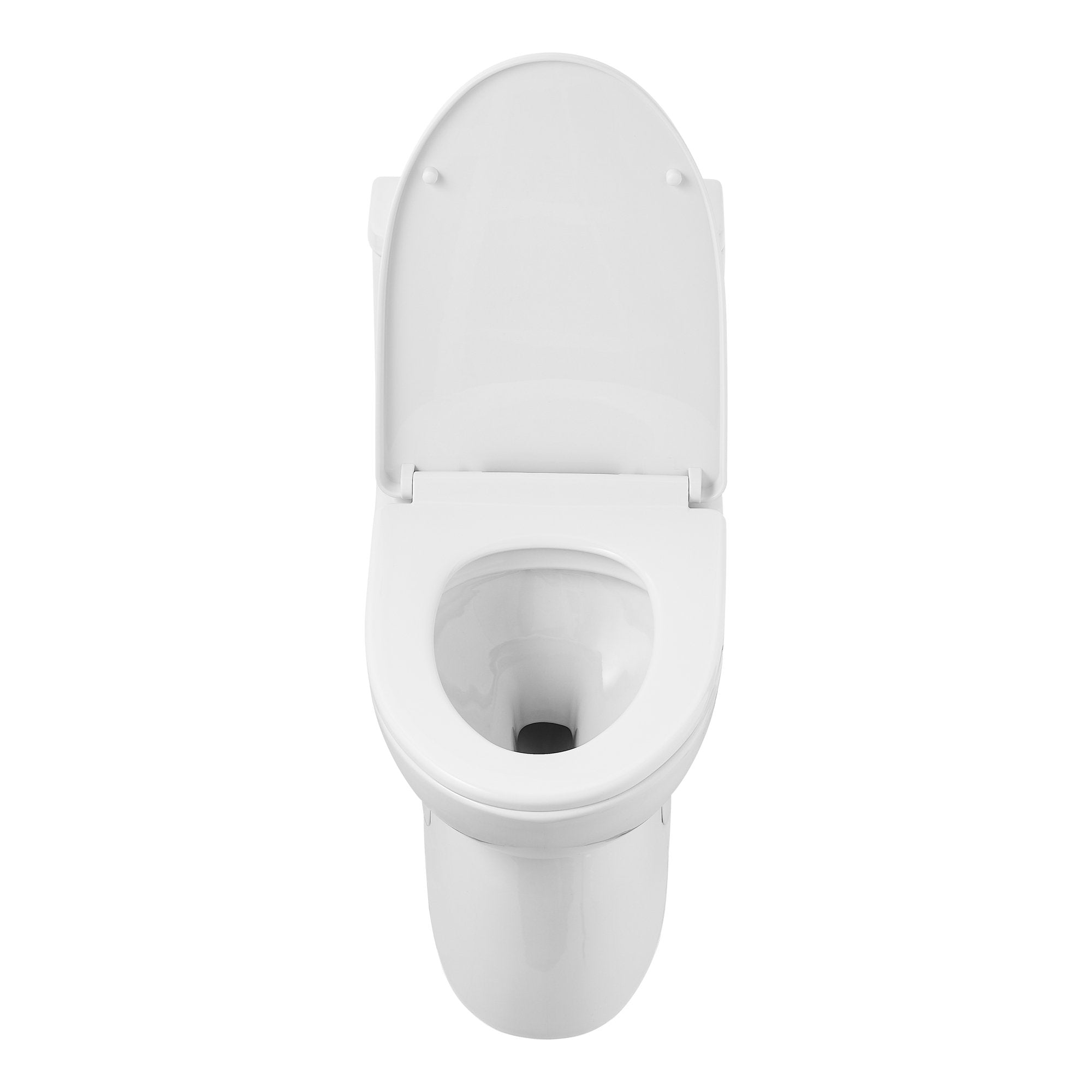

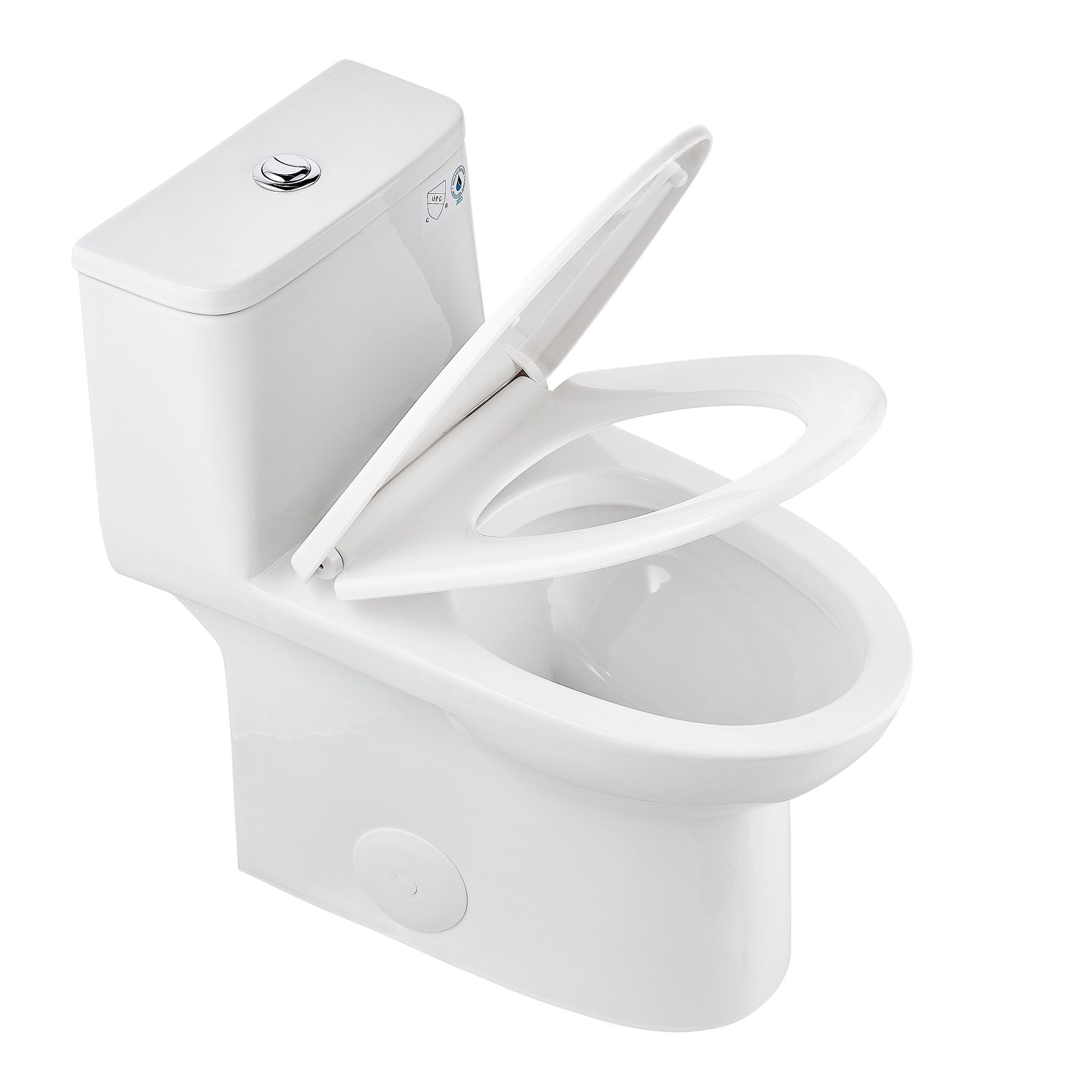

• Soft-close and quick-release seat reduces wear and can be easily removed for cleaning.
• Side holes offer easy access to the floor bolts for installation.
• This toilet is designed with an 80mm deep water seal after flushing.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
MaP：Powerfully blend flushing performance, reliability, waste clearance, and durability.
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

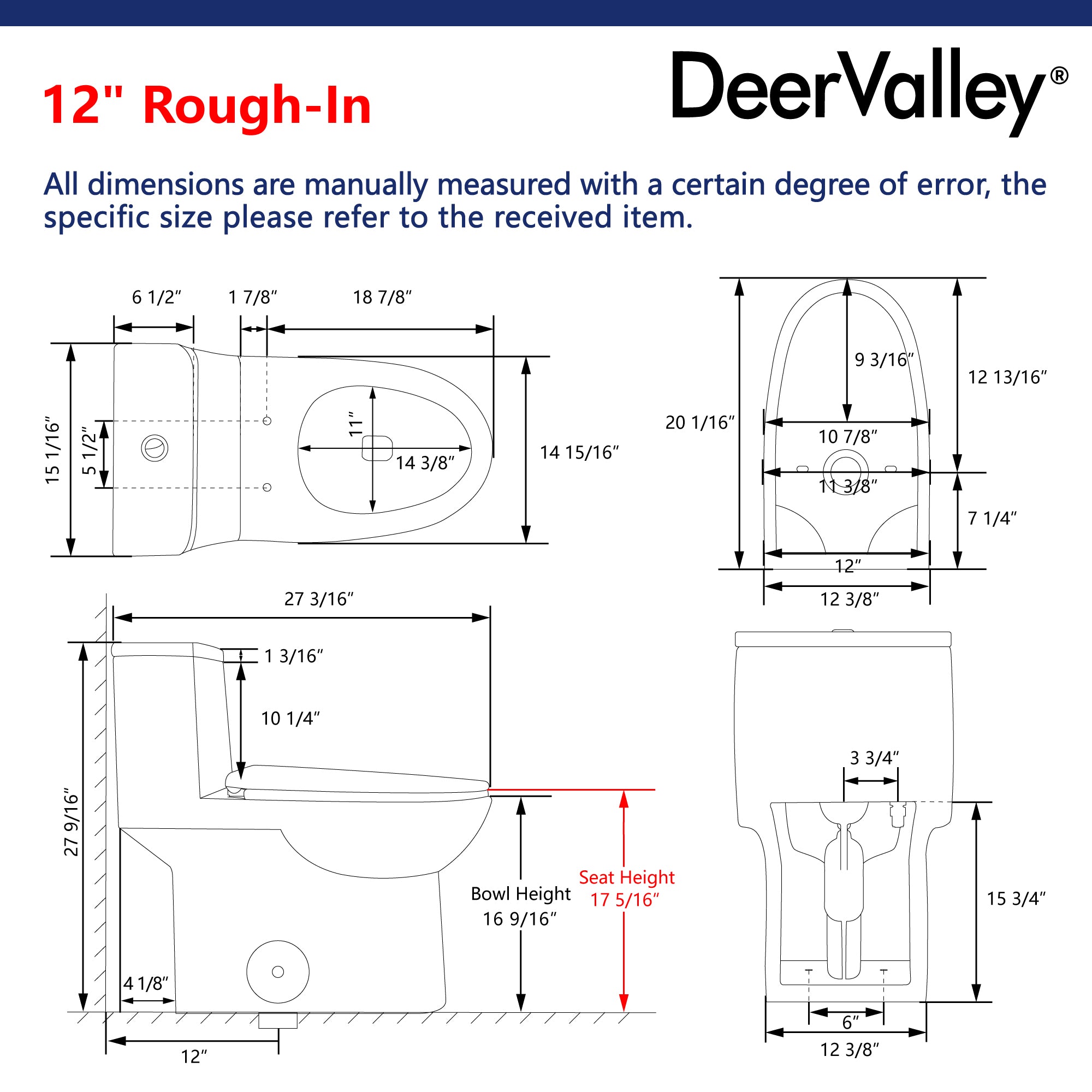

Weights & Dimensions
Overall:27.56″H X14.96″W X27.17″ L
Tank:10.24″H X 6.50″W X15.04″ L
Tank Lid: 1.18″H X 6.50″W X15.04″ L
Toilet Seat: 1.77 Back/ 1.42 Front “H X 14.88″W X 18.90″L
Toilet Seat Inside Ring: 8.66″W X 12.60″L
Bowl: 11.02″W X 14.37″L
Toilet Seat Height – Top to Bottom:17.32″
Bowl Height – Top to Bottom:16.54′
Trap-way Diameter: 2.17″
Rough In Size:11.81″
Bolts Spread Distance: 5.51″
Distance from the Seat Installation Hole to the Tank: 1.85″
Distance from the Back of the Toilet to the Wall: 4.13″
Toilet Installation Hole Distance: 5.98″
Height from the Bottom of the Water Tank to the Ground: 15.75″
Distance Between the Center of Adapter and the Center of Trap-way: 3.74″
Toilet Base Dimension(Length & Width): 20.08*12.40”
Overall Product Weight:103?lb.

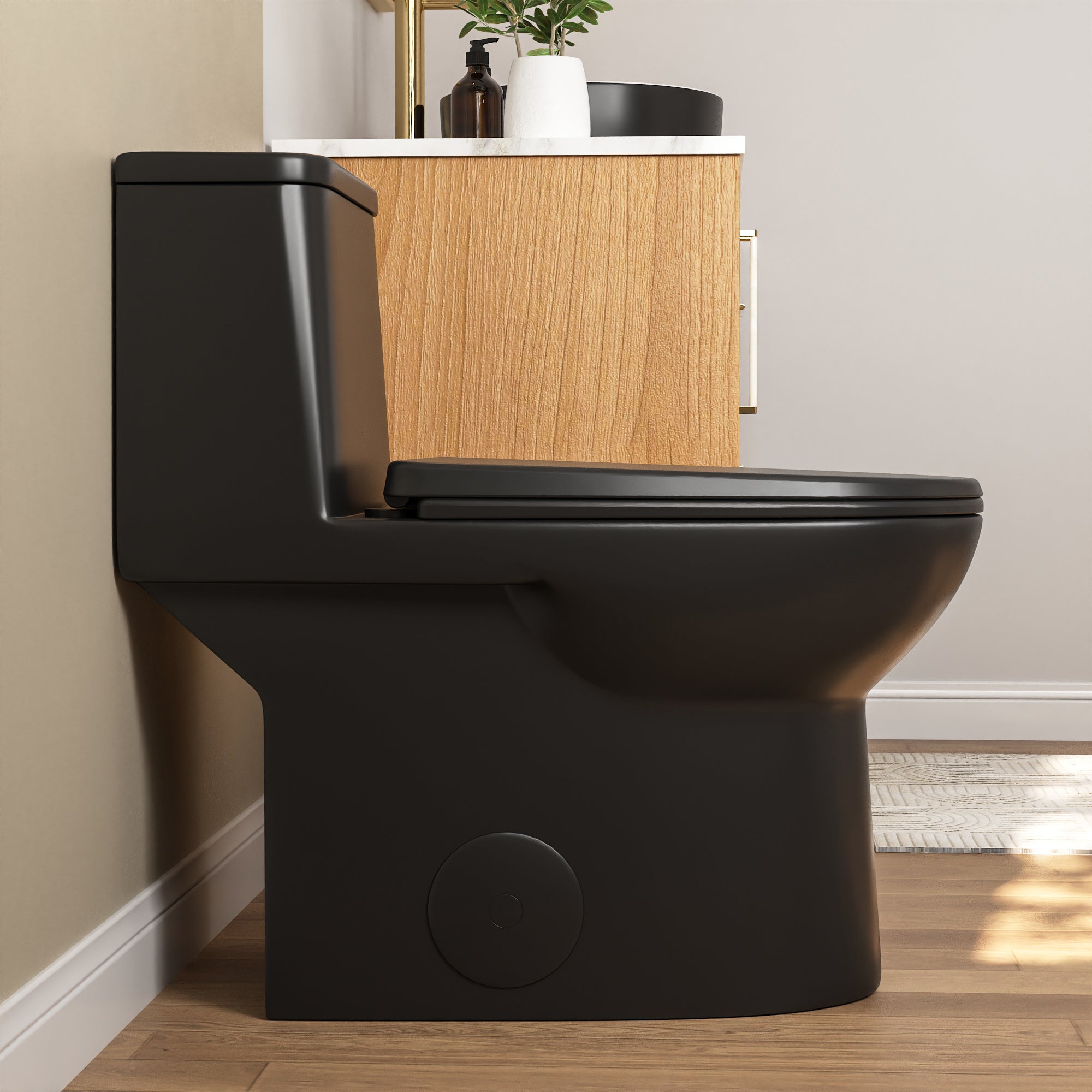

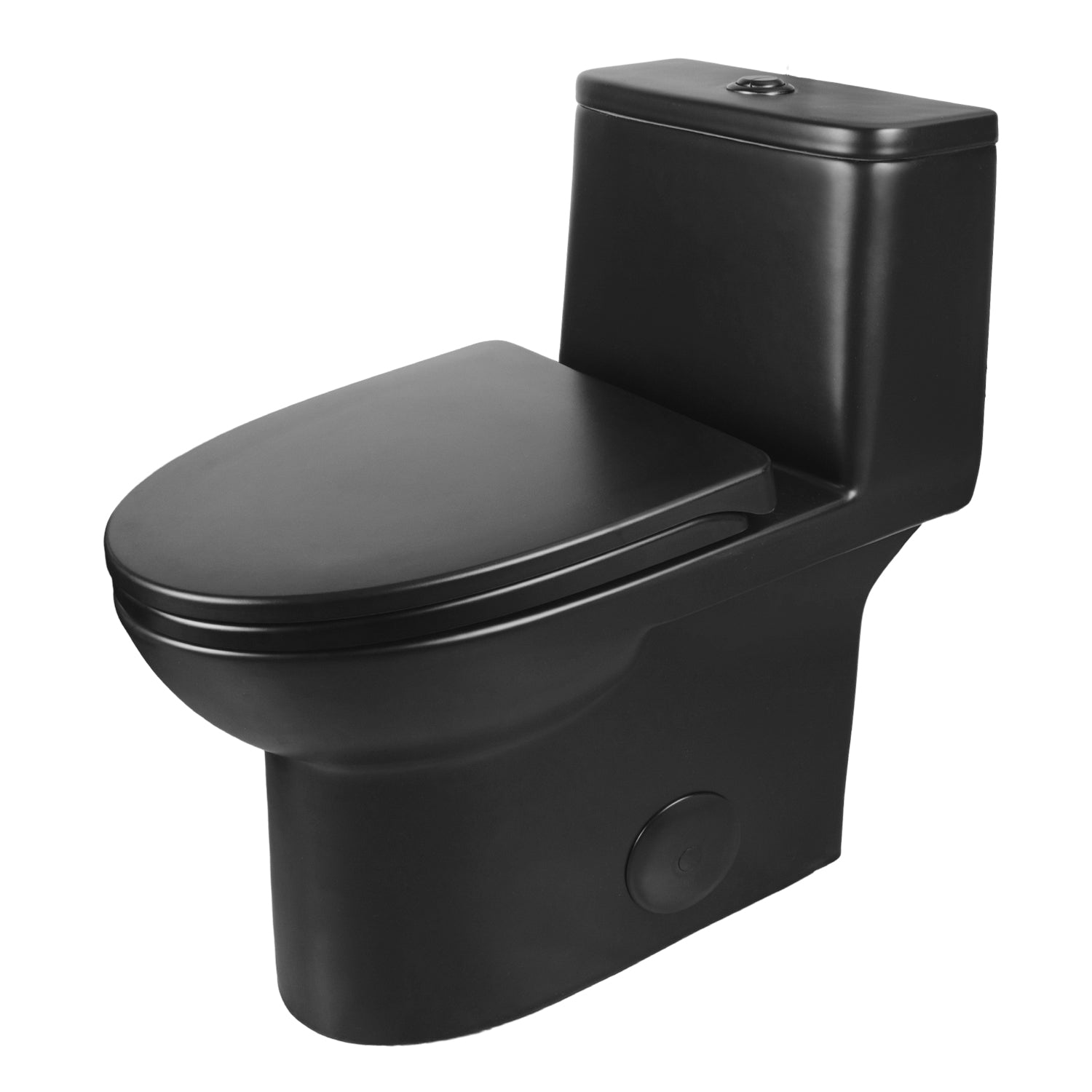

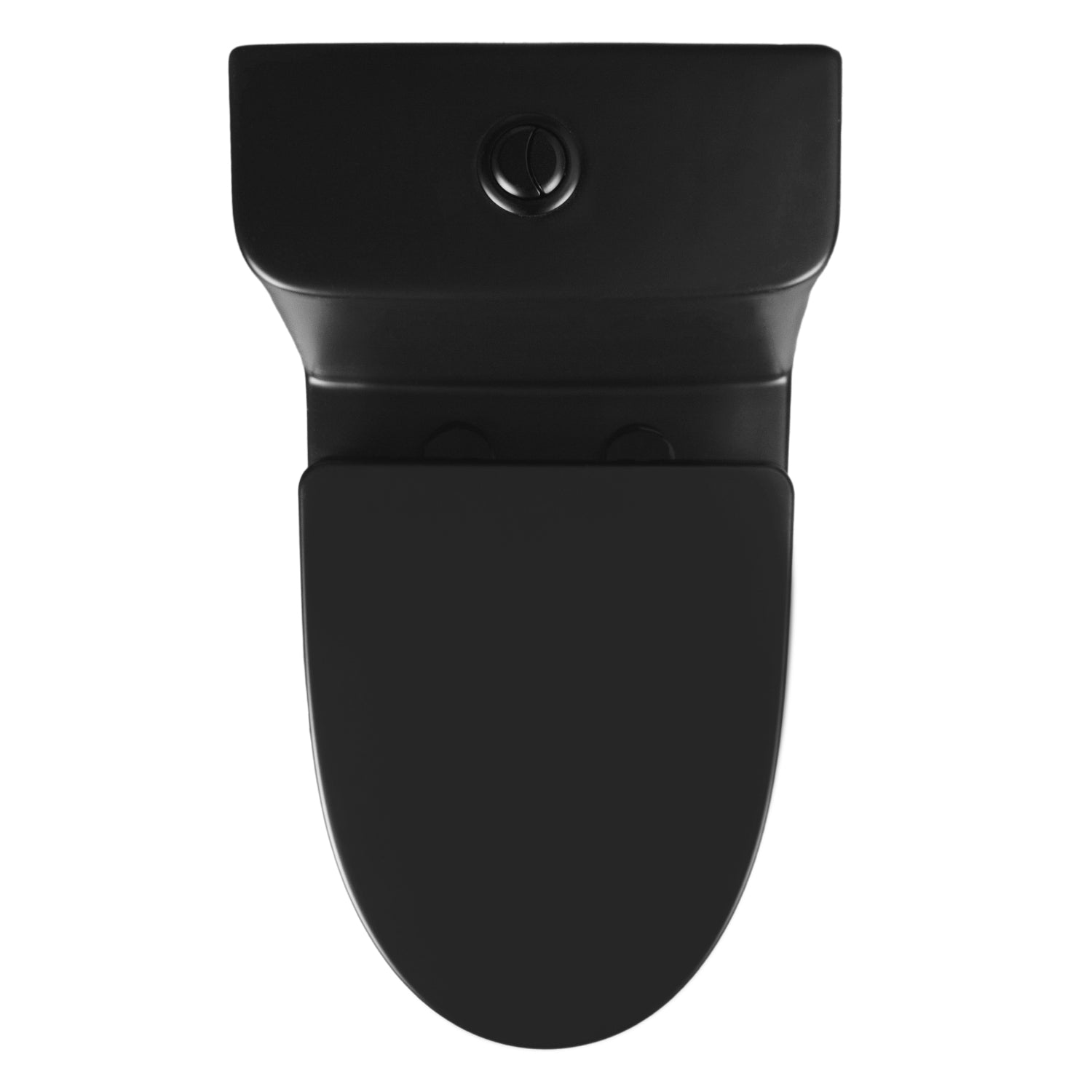

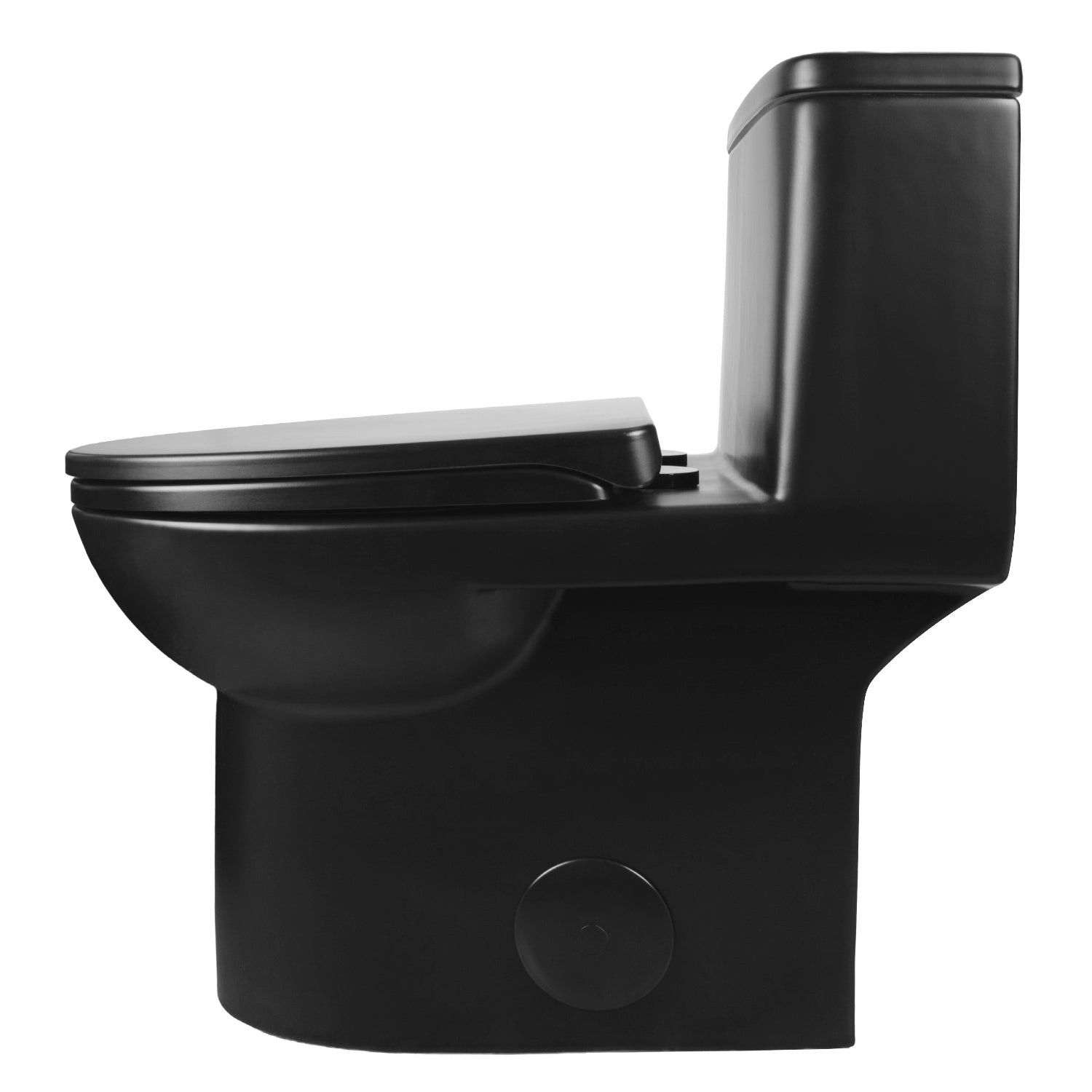

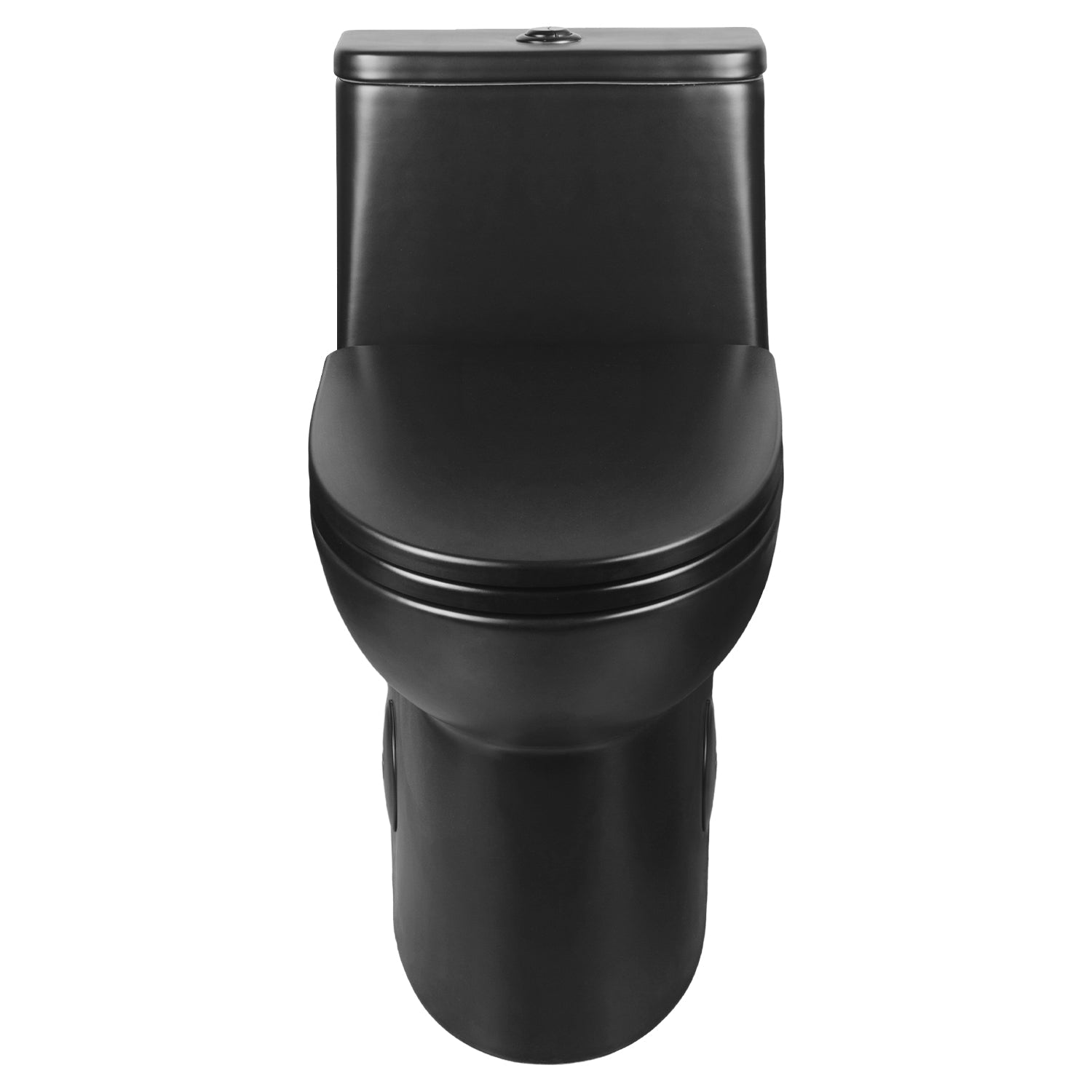

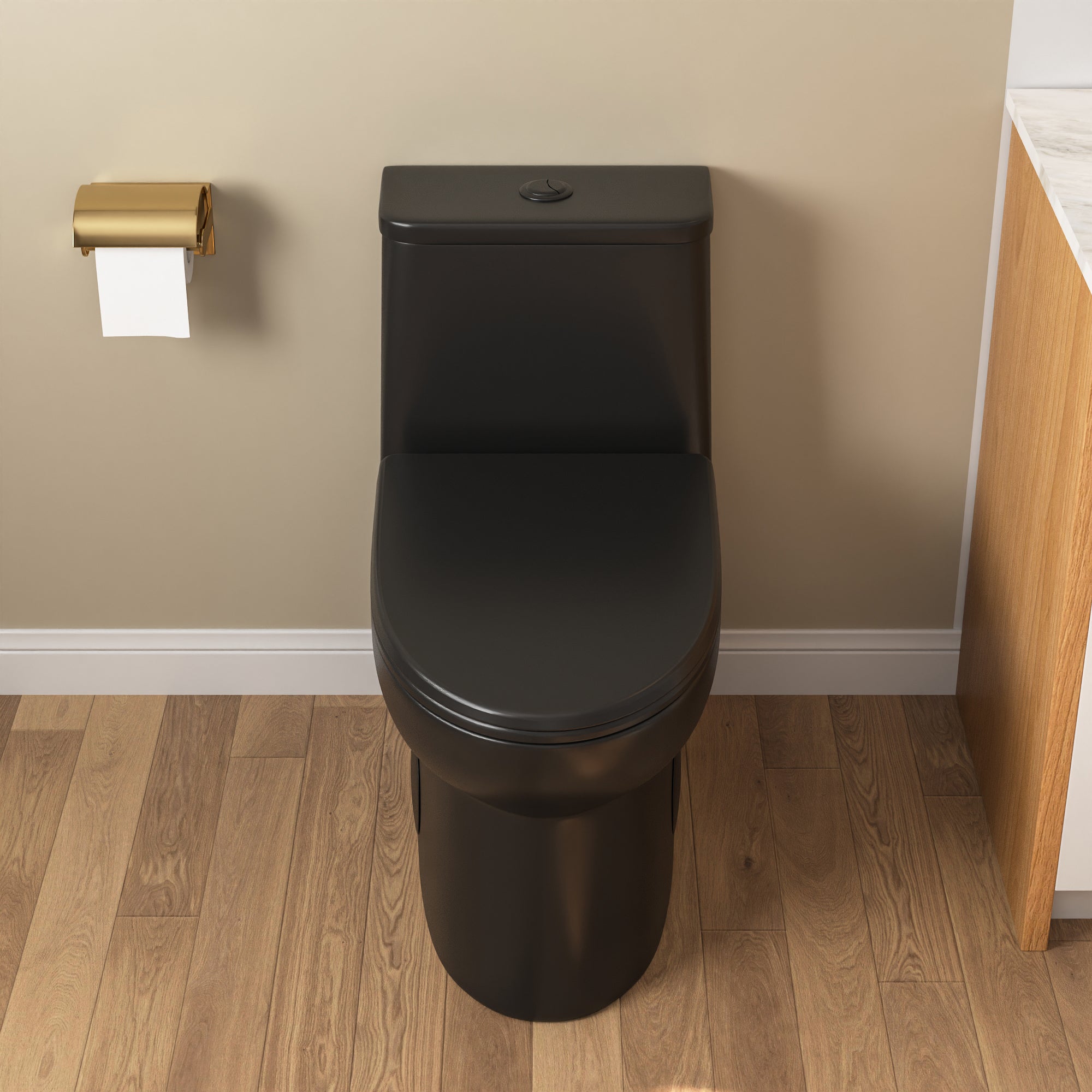

Color: White/Black
Flush Volume:1.1/1.6 GPF
What is included in the package?
• Toilet Seat, Fitting, Anchor Screw, Toilet Flange.
Compatible Accessories
• Toilet Seat Installation Kit: DV-F626S01

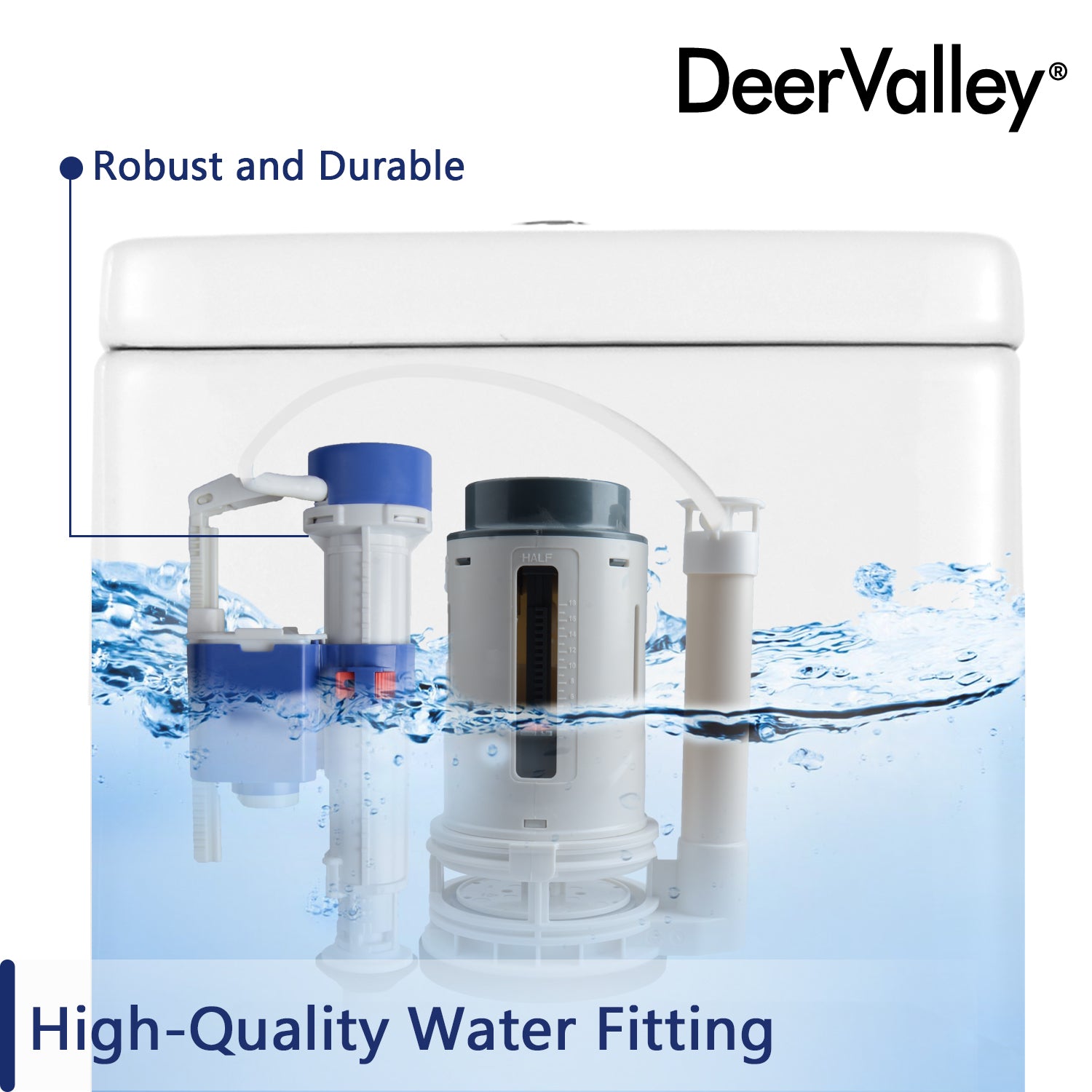

• Fill Valve: DV-F677V01
• Toilet Seat for DV-1F52677: DV-F626S11
• Toilet Seat for DV-1F52677B: DV-F677BS11
• Tank Lid DV-1F52677: DV-F677T11
• Tank Lid for DV-1F52677B: DV-F677BT11
• Side Bolt Cover: DV-F026P21
• Rubber Cushion: DV-F626S91
• Toilet Adapter: DV-FMJV52
• Anchor Screw: DV-F026P41
• Waxring: DV-F026P31
• Flush Button DV-1F52677: DV-F812V31
• Flush Button DV-1F52677B: DV-F677BV31
Toilet Seat Bidet:
DeerValley’s Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.
•
DV-1B0093 & DV-1B0095
Installation Manual:
Spec Sheet:
