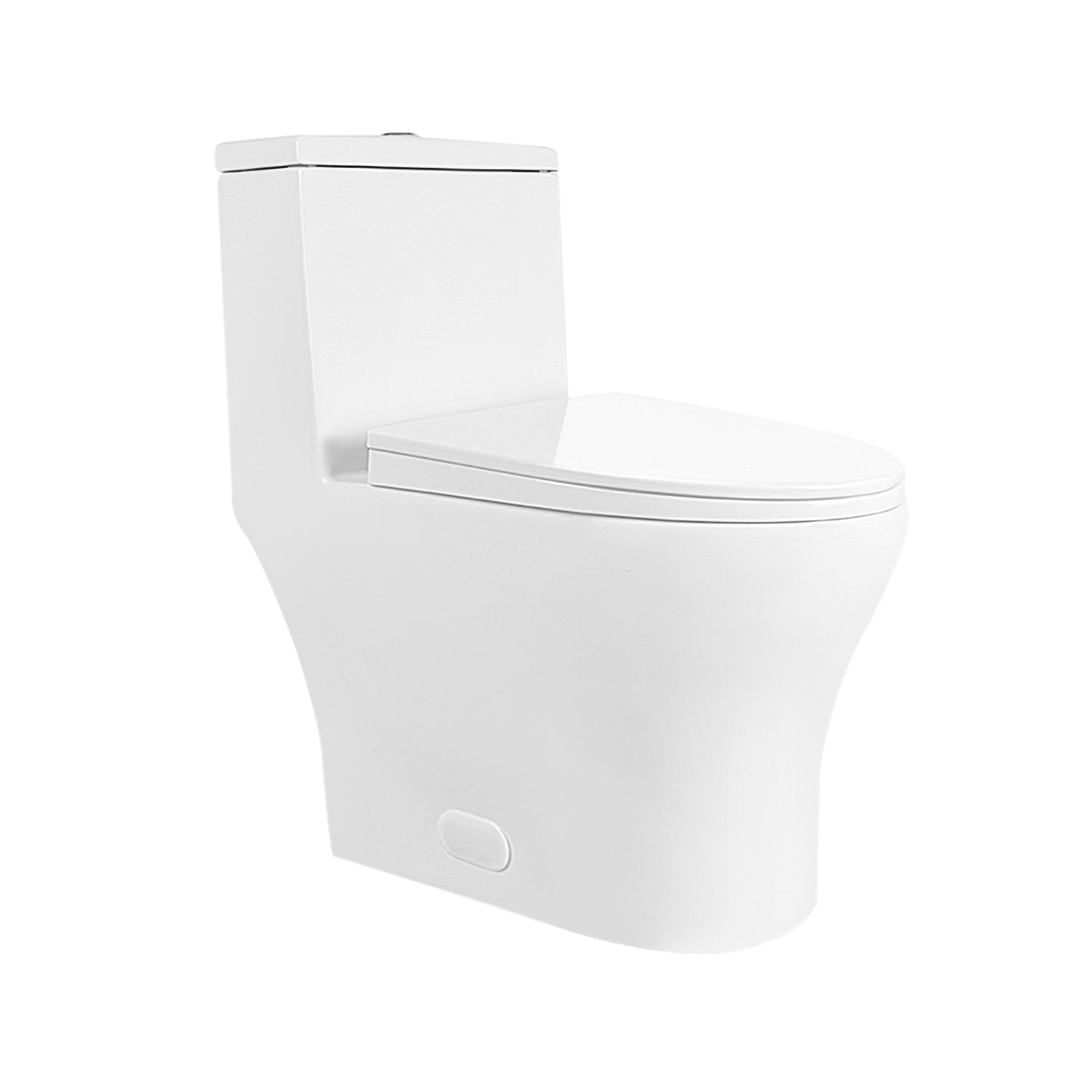

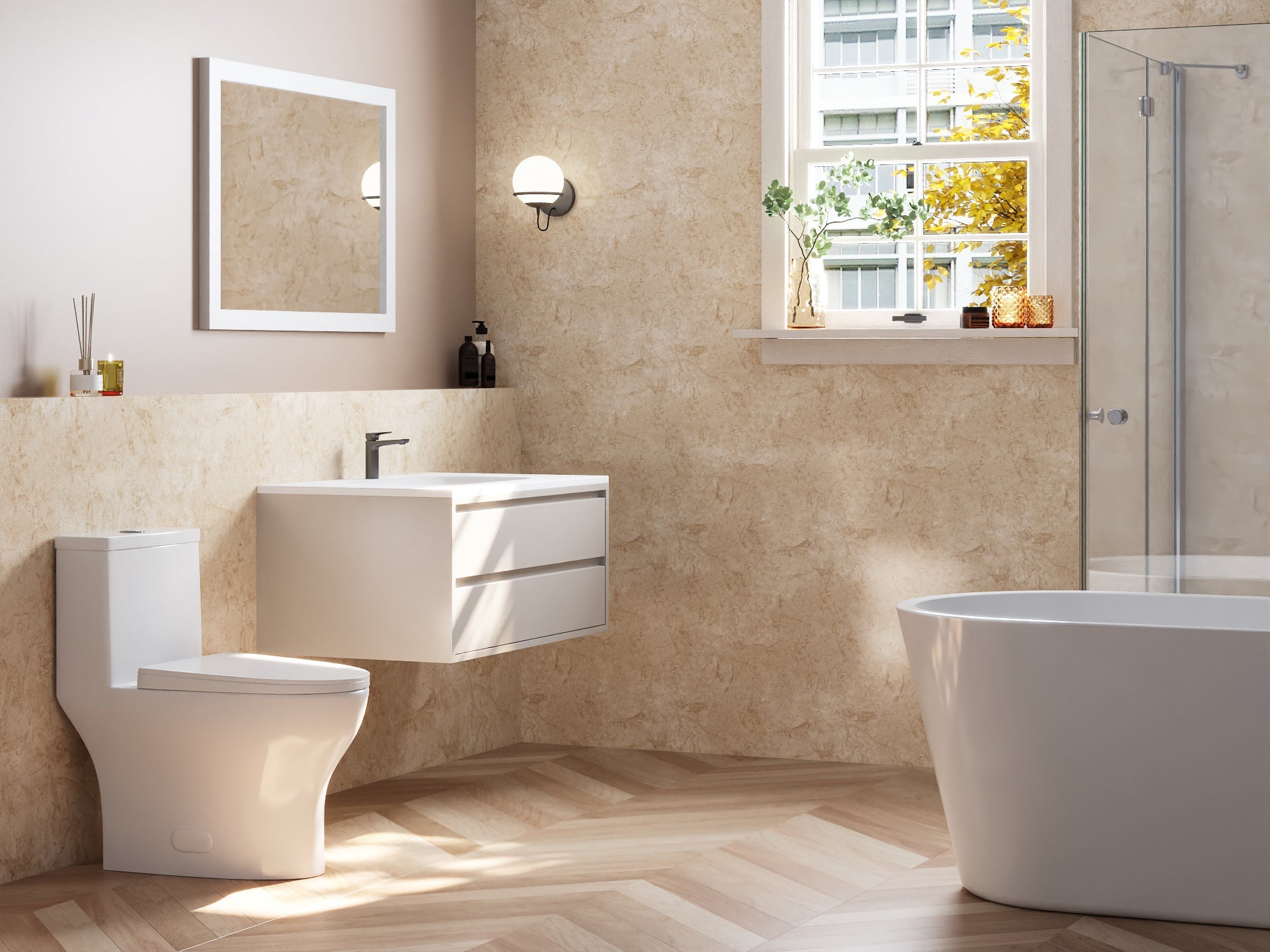

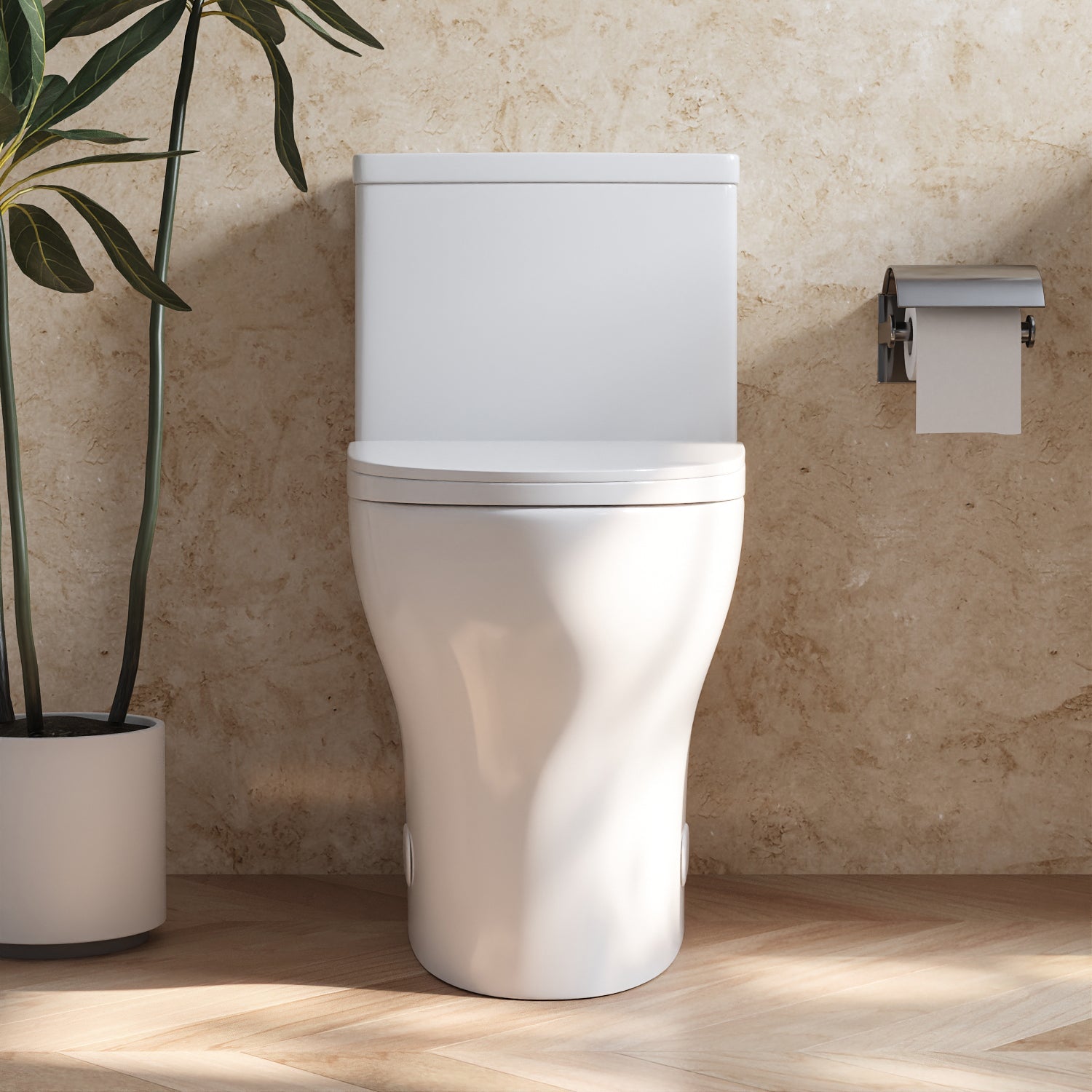

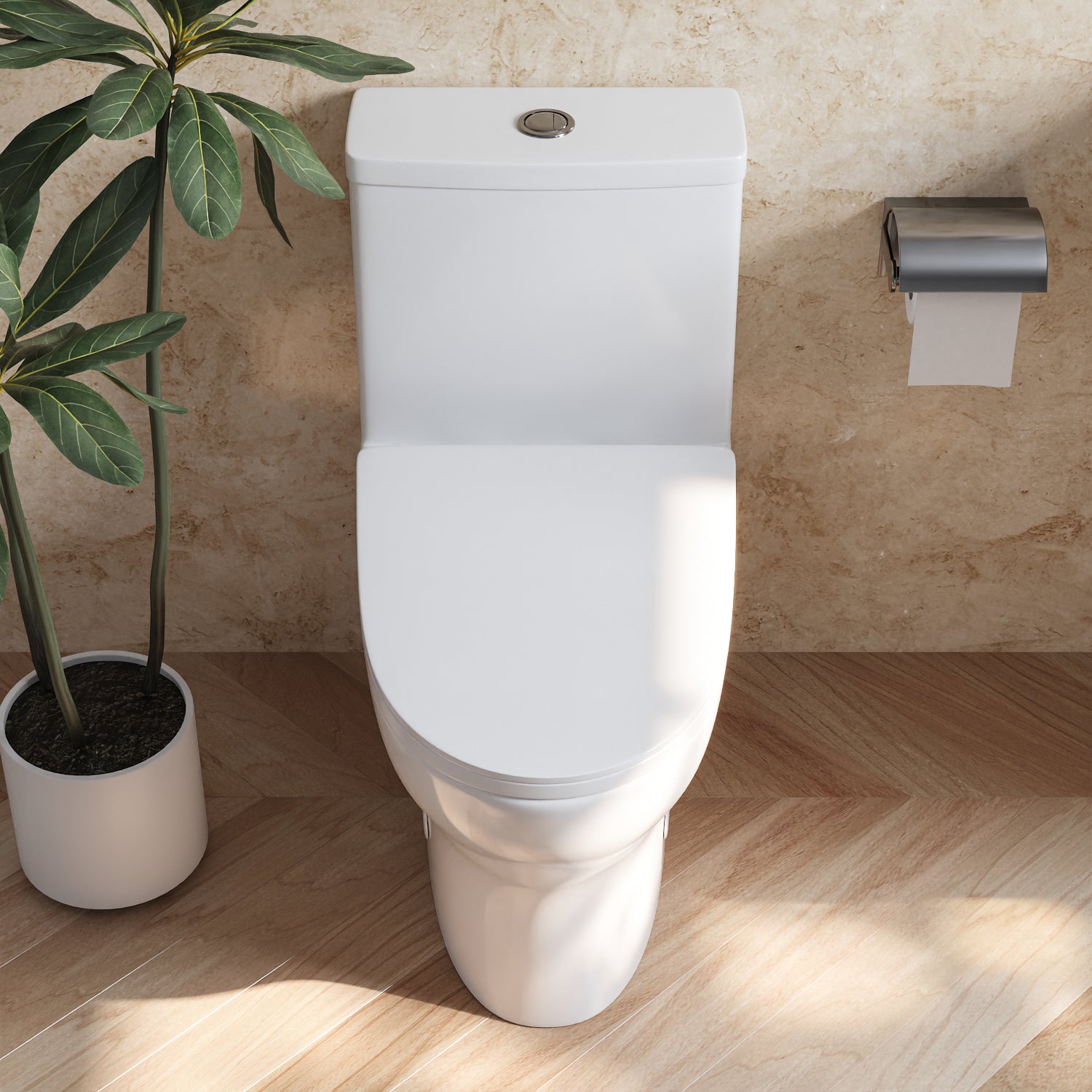

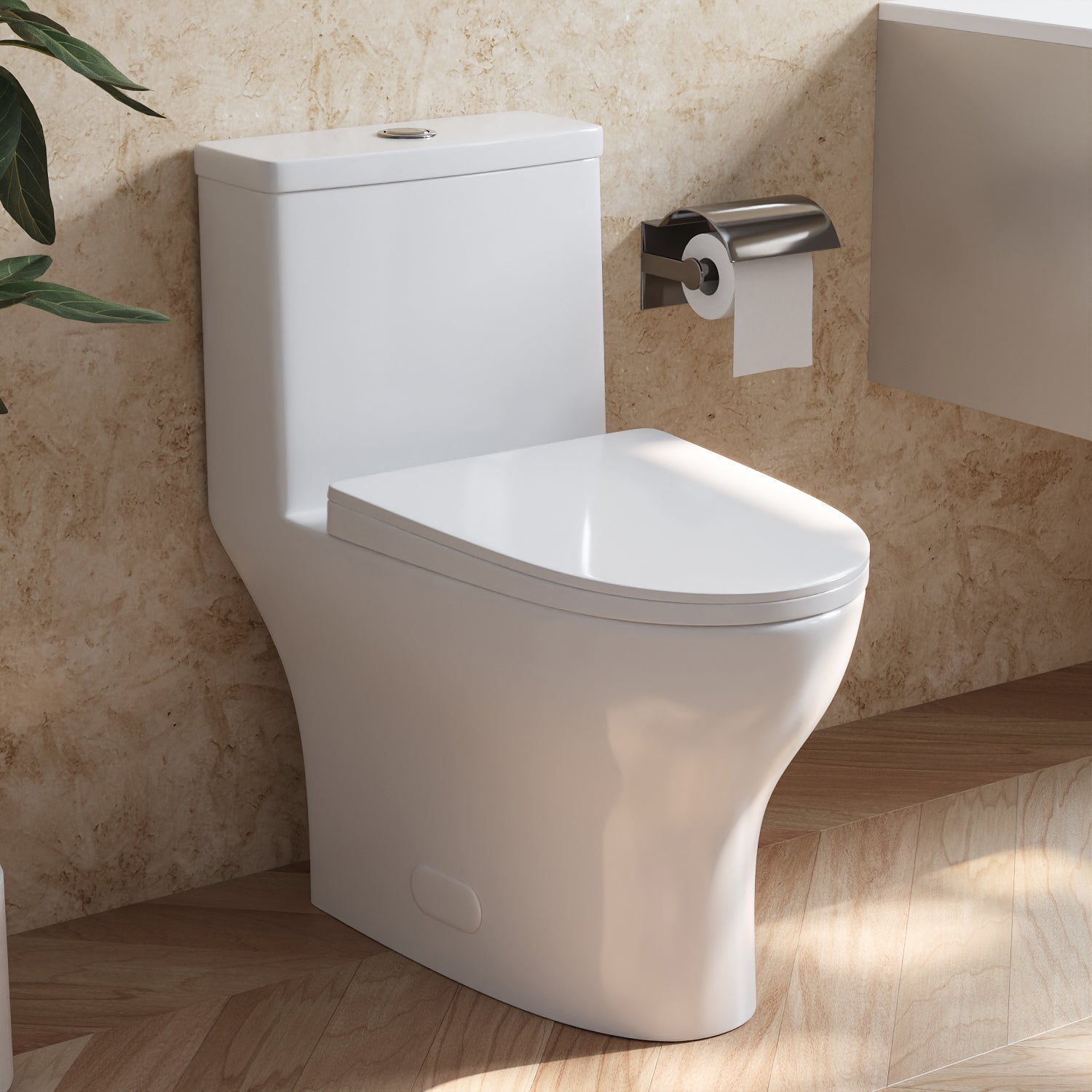

This DeerValley one-piece toilet is designed with high-quality ceramic materials with a contemporary and comfortable design. A nice glazed surface inhibits the growth of stains and is self-cleaning which simplifies maintenance. The soft-close mechanism ensures that the sound of the toilet lid closing will not awaken your family. The dual-flush function offers the ability to conserve water without compromising performance. DeerValley’s one-piece toilet will be the choice to meet your needs.
Features
• The toilet made of ceramic material calcined at high temperatures has a solid texture, good compressive ability, and strong corrosion resistance.
• With a self-cleaning glaze, this toilet has a smooth and delicate surface, which does not easily leave stains, and has a super antibacterial effect.

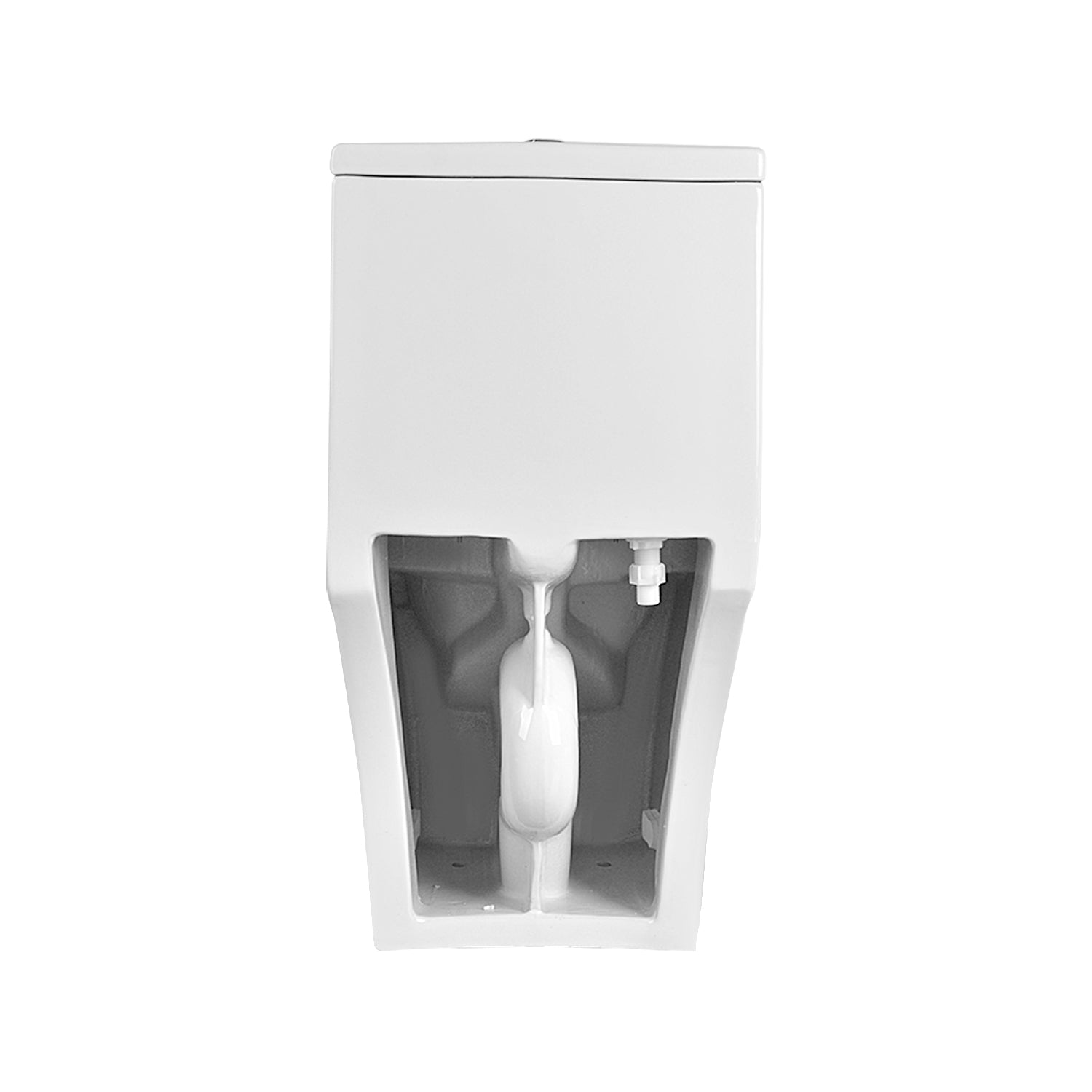

• Concealed trap way design avoids the accumulation of dust and dirt in curved pipes which is more hygienic and easier to clean.
• Rough-in valve distance between center toilet flange finished back wall: 12″.
• Side holes offer easy access to the floor bolts for installation.
• Professional after-sale service and a one-year warranty.
• This one-piece toilet is easy to install and the quick-release seat can be unlatched from the toilet.
Certifications
cUPC: Uniquely blend safety, hygiene, quality, and performance.
EPA: S eamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
DOE：Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

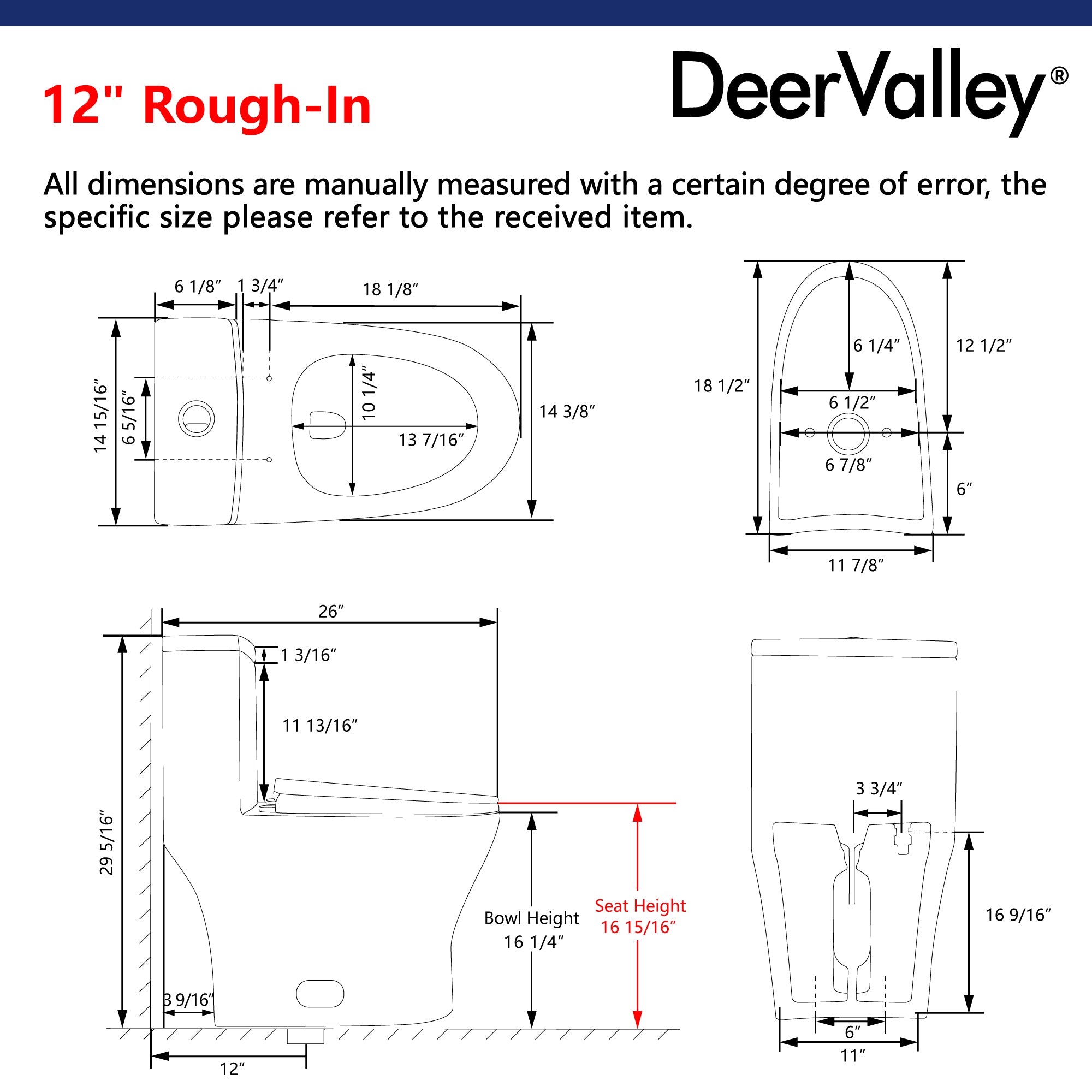

Weights & Dimensions
Overall: 25.98” L X 14.76” W X 29.33” H
Tank: 11.81” H X 14.96” L X 6.02” W
Tank Lid: 1.18” H X 14.96” L X 6.10” W
Toilet Seat: 1.77 Back/ 0.98 Front ” H X 14.37” W X 18.11” L
Toilet Seat Inside Ring: 8.82” W X 12.32” L
Bowl: 13.46” L X 10.24” W
Toilet Seat Height – Top to Bottom: 16.93”
Bowl Height – Top to Bottom: 16.26”
Trap-way Diameter: 2.17”
Rough In Size: 11.61”
Bolts Spread Distance: 6.30”
Distance from the Seat Installation Hole to the Tank: 1.77”
Distance from the Back of the Toilet to the Wall: 3.54”
Toilet Installation Hole Distance: 5.98”
Height from the Bottom of the Water Tank to the Ground: 16.54”
Distance Between the Center of Adapter and the Center of Trap-way: 3.74”
Toilet Base Dimension￡¨Length & Width): 18.50 * 11.89”
Overall Product Weight: 123 lb.
Flush Volume: 1.1/1.6 GPF
What is included in the package?
•
Toilet seat, wax ring kit, bolts.
Compatible Accessories
• Fill Valve: DV-F0073V01
• Toilet Seat: DV-F0073S11
• Toilet Seat Quick Release Bracket: DV-F0073S01
• Tank Lid: DV-F0073T11
• Flush Button: DV-F0071V31 &?DV-F0072V31
• Side Bolt Cover: DV-F0073P21
• Waxring: DV-F0071P11
Toilet Seat Bidet:
DeerValley’s Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.
•
DV-1B0093 & DV-1B0095
